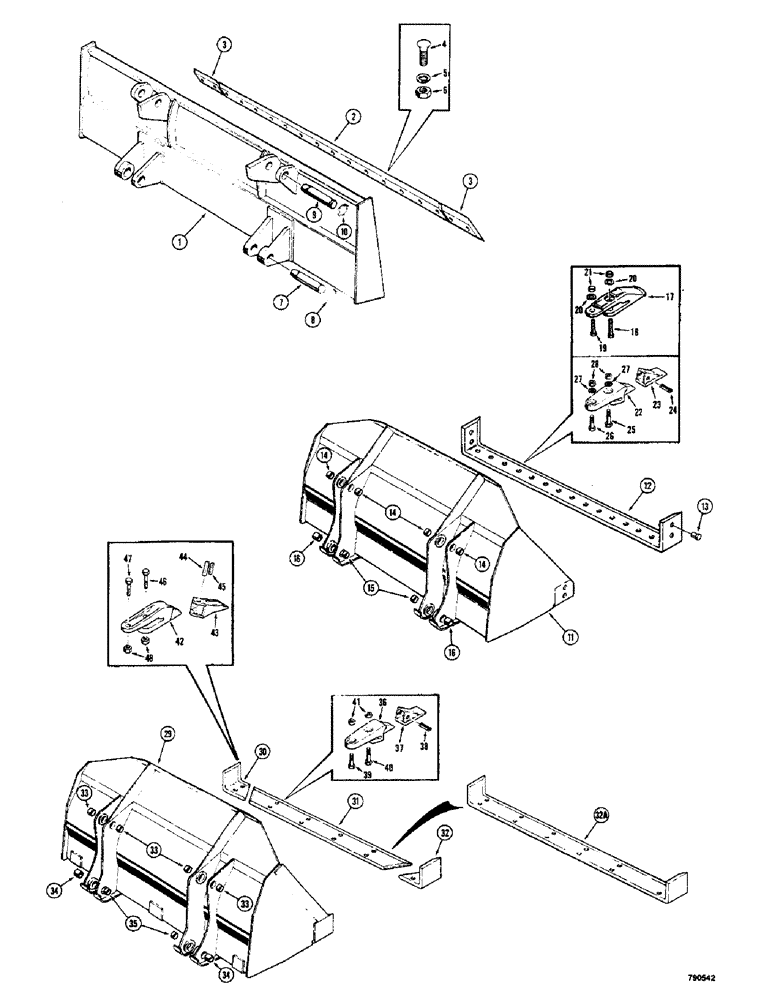

Запчасти Case 350 (356) - BULLDOZER BLADE FOR LOADER (05) - UPPERSTRUCTURE CHASSIS

D12363

HALF BLADE

BLADE - bulldozer, machinery item, see figure 2 for ordering, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

MOLDBOARD - bulldozer

1шт.

2

NLS

NO LONGER SERVICED

BLADE - cutting, center

1шт.

3

38150

EDGE

BLADE - cutting, end

2шт.

4

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, 1/2" - 13 NC x 1-3/4"

18шт.

5

92-8

LOCK WASHER,1/2"

18шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

18шт.

7

D33146

AXLE PIN

PIN - mounting

2шт.

8

D25280

SNAP RING,#175, Ext

Ring, Snap, , D33146 mounting pin #175, Ext

4шт.

9

D32931

PIN

- mounting

2шт.

10

D25279

SNAP RING,M35, Int

- D32931 mounting pin

4шт.

D12351

BUCKET - loader, with teeth, machinery items, see figure 2 for ordering, with riveted-on cutting edge, Includes: Ref. 11 - 21

1шт.

11

D12349

BUCKET - loader, without teeth, machinery item, see figure 2 for ordering, with riveted-on cutting edge, Includes: Ref. 12 - 16

1шт.

12

D33036

HALF BLADE

CUTTING EDGE - bucket, (1/2" x 62"), loader buckets, with riveted-on cutting edge

1шт.

13

46-828

RIVET,Csk, 1/2" x 1 3/4"

- countersunk, 1/2" x 1-3/4", loader buckets, bucket with riveted-on cutting edge

19шт.

14

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket hinge, upper, loader buckets, with riveted-on cutting edge

4шт.

15

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- inner bucket, lower, loader buckets, with riveted-on cutting edge

2шт.

16

D33054

BUSHING

- outer bucket, lower, loader buckets, with riveted-on cutting edge

2шт.

17

D33033

TOOTH

- digging, loader buckets, bucket with riveted-on cutting edge

6шт.

18

18-840

BOLT

- plow, 1/2" - 13 NC x 2-1/2", loader buckets, bucket with riveted-on cutting edge

6шт.

19

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Loader buckets, bucket with riveted-on cutting edge Hex, 1/2"-13 x 2", G5

6шт.

20

92-8

LOCK WASHER,1/2"

loader buckets, bucket with riveted-on cutting edge 1/2"

12шт.

21

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, loader buckets, bucket with riveted-on cutting edge

12шт.

D40449

TOOTH

ASSEMBLY - optional, bucket, Includes: Ref. 22 - 24

6шт.

22

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket - optional

1шт.

23

D39093

TOOTH

POINT - bucket teeth - optional

1шт.

24

D39094

BUCKET TOOTH KEY

FLEX PIN - point, bucket teeth - optional

1шт.

25

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

Bucket teeth - optional Hex, 1/2"-13 x 3 1/4", G5

6шт.

26

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2" - 13 NC x 2", bucket teeth - optional

6шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Bucket teeth - optional 1/2"

12шт.

28

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, bucket teeth - optional

12шт.

29

D49911

BUCKET - loader, machinery item, see figure 2 for ordering, w/ weld on cutting edge, Includes: Ref. 30 - 35

1шт.

30

D49584

EDGE - cutting, LH, use D51885 edge, loader bucket w/ weld on cutting edge

1шт.

31

D49912

EDGE

- cutting center, use D51885 edge, loader bucket w/ weld on cutting edge

1шт.

32

D49583

EDGE - cutting, RH, use D51885 edge, loader bucket w/ weld on cutting edge

1шт.

32a

D51885

EDGE

- cutting, one piece, (61 1/4" x 3/4"), loader bucket w/ weld on cutting edge

1шт.

33

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- upper, loader bucket w/ weld on cutting edge

4шт.

34

D33054

BUSHING

- lower, outer, loader bucket w/ weld on cutting edge

2шт.

35

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- lower, inner, loader bucket w/ weld on cutting edge

2шт.

D50780

TOOTH

ASSEMBLY - bucket, Includes: Ref. 36 - 38

6шт.

36

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket

1шт.

37

D51750

BUCKET TOOTH POINT

POINT - tooth, bucket

1шт.

38

D39094

BUCKET TOOTH KEY

PIN - flex, bucket teeth

1шт.

39

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8" - 11 NC x 2-1/4", bucket teeth

6шт.

40

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8" - 11 NC x 2-1/2", bucket teeth

6шт.

41

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC, bucket teeth

12шт.

R42795

TOOTH

ASSEMBLY - service option, heavy duty, bucket, Includes: Ref. 42 - 45

6шт.

42

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket

1шт.

43

R38572

TOOTH

POINT - tooth, bucket

1шт.

44

R35318

PIN

- flex, bucket teeth

1шт.

45

R35319

LOCK ASSY

LOCK, bucket teeth

1шт.

46

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8" - 11 NC x 2-1/2", grade 8, bucket teeth

6шт.

47

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8" - 11 NC x 2-1/4", grade 8, bucket teeth

6шт.

48

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC, bucket teeth

12шт.
