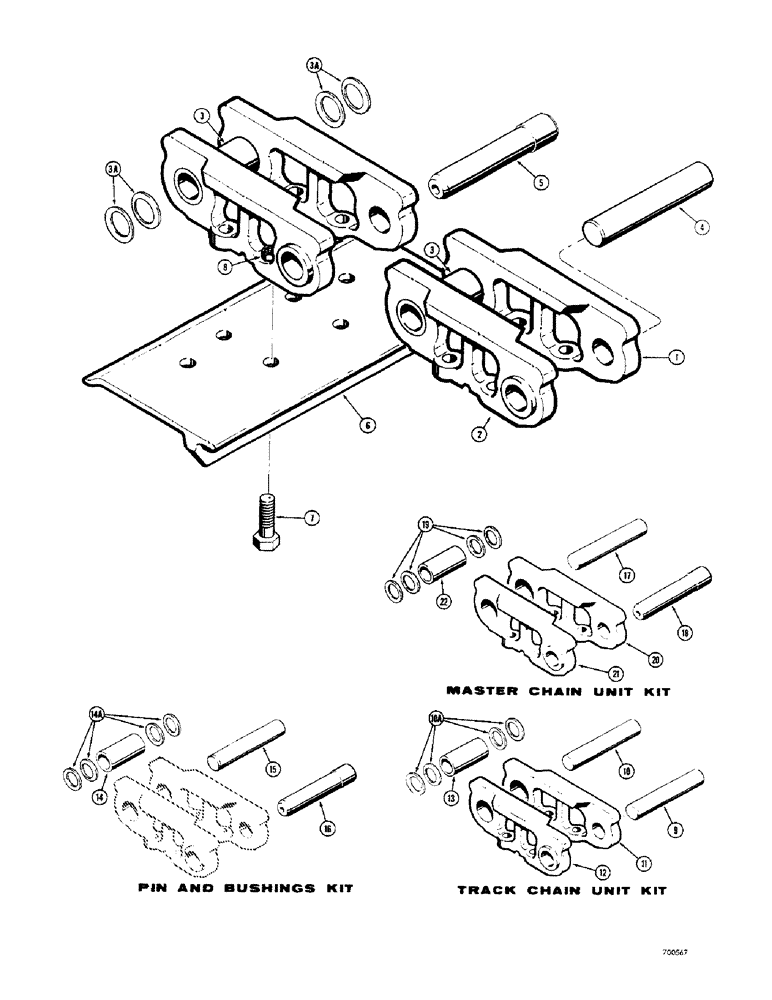

Запчасти Case 350 (164) - TRACK CHAIN (04) - UNDERCARRIAGE

R43304

TRACK CHAIN

TRACK - dozer, complete, Includes: Ref. 1 - 8

2шт.

R43305

TRACK CHAIN

TRACK - loader, left hand, complete, Includes: Ref. 1 - 8

1шт.

R43306

TRACK CHAIN

TRACK - loader, right hand, complete, Includes: Ref. 1 - 8

1шт.

D49615

CHAIN (AG)

CHAIN ASSEMBLY - 33 unit, sealed track, Includes: Ref. 1 - 5

1шт.

D48671

CHAIN (AG)

CHAIN ASSEMBLY - 16 unit, sealed track, Includes: Ref. 1 - 5

1шт.

D48670

TRACK CHAIN

CHAIN ASSEMBLY - 17 unit, sealed track, Includes: Ref. 1 - 5

1шт.

1

D43909

DRAG LINK

LINK - track chain, right hand

17шт.

2

D43908

LINK

- track chain, left hand

17шт.

3

D48669

BUSHING

- track

17шт.

3a

D48668

SEALING WASHER

SEAL - washer, track

68шт.

4

32831

PIN

- track, standard type

16шт.

5

D41582

AXLE PIN,25.2mm OD x 132.56mm L

PIN - track, master

1шт.

6

REF

INSTRUCTION

SHOE - track, see figure 166 for track shoes

66шт.

7

D41490

BOLT

- special

264шт.

8

D29712

SPECIAL NUT

- special

264шт.

D48935

DRAG LINK

KIT - chain unit, sealed track, Includes: Ref. 9 - 13

62шт.

9

32831

PIN

- track, standard, chain unit kit

1шт.

10

32836

PIN

- track, service, .003" (.0762 MM) oversize, chain unit kit

1шт.

10a

D48668

SEALING WASHER

SEAL - washer, sealed track, chain unit kit

8шт.

D49179

LINK

UNIT - chain, sealed track, chain unit kit, Includes: Ref. 11 - 13

1шт.

11

D43909

DRAG LINK

LINK - track chain, RH, unit kit

1шт.

12

D43908

LINK

- track chain, LH, unit kit

1шт.

13

D48669

BUSHING

- sealed track, chain unit kit

1шт.

D48934

PIN

KIT - pin and bushing, sealed track, Includes: Ref. 14 - 16

1шт.

14

D48669

BUSHING

- sealed track, pin and kit

66шт.

14a

D48668

SEALING WASHER

SEAL - washer, sealed track, pin and bushing kit

264шт.

15

32836

PIN

- track, service, .003" (.0762 MM) oversize, bushing kit

62шт.

16

C43537

PIN - track, master, .003" (.0762 MM) oversize, service, bushing kit

4шт.

D48932

LINK

KIT - master track, sealed chain , unit, Includes: Ref. 17 - 19

4шт.

17

32836

PIN

- track, service, .003" (.0762 MM) oversize, master chain unit kit

1шт.

18

D41582

AXLE PIN,25.2mm OD x 132.56mm L

PIN - track, master, chain unit kit

1шт.

19

D48668

SEALING WASHER

SEAL - washer, sealed track, master chain unit kit

8шт.

D49179

LINK

UNIT - master, sealed track, chain kit, Includes: Ref. 20 - 22

1шт.

20

D43909

DRAG LINK

LINK - track chain, right hand, master unit kit

1шт.

21

D43908

LINK

- track chain, left hand, master unit kit

1шт.

22

D48669

BUSHING

- sealed track, master chain unit kit

1шт.
