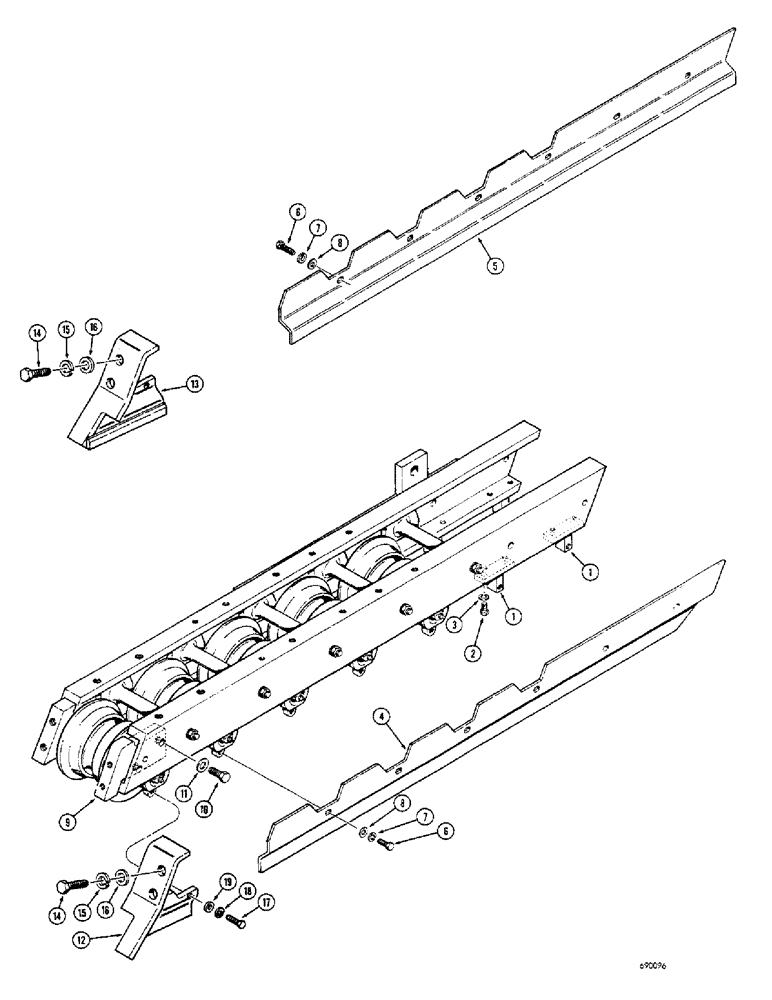

Запчасти Case 350 (162) - TRACK GUIDES (04) - UNDERCARRIAGE

1

D43601

BRACKET

- track guide mounting

8шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

16шт.

3

92-8

LOCK WASHER,1/2"

16шт.

4

D43607

GUARD ASSY.

TRACK GUIDE - front, RH

2шт.

5

D43606

GUARD ASSY.

TRACK GUIDE - front, LH

2шт.

6

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- hex, 1/2" - 20 NF x 1-1/4", if used

24шт.

6

114-448

BOLT,Locking, 1/2" - 20 x 1-1/4", Gr 5

- hex, 1/2" - 20 NF x 1-1/4", if used

28шт.

7

92-8

LOCK WASHER,1/2"

used with 14-820 bolt only 1/2"

24шт.

8

195-33

WASHER,1/2"

- plain, 1/2"

24шт.

9

D43595

BRACKET

- track guide mounting

2шт.

10

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

If used Hex, 3/4"-10 x 2", G5

4шт.

10

113-2705

BOLT

- hex, 3/4" - 10 NC x 2", if used

4шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, treated

4шт.

12

D43599

GUARD ASSY.

TRACK GUIDE - rear, RH

2шт.

13

D43598

GUARD ASSY.

TRACK GUIDE - rear, LH

2шт.

14

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

If used Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

14

113-2629

LOCK BOLT,Locking, 5/8"-11 x 1 1/2", G5, Full Thd

BOLT - hex, 5/8" - 11 NC x 1-1/2", if used

8шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used with 13-1024 bolt only 5/8"

8шт.

16

95-10

WASHER,5/8"

- flat, 5/8"

8шт.

17

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- hex, 1/2" - 20 NF x 1-1/4"

4шт.

18

92-8

LOCK WASHER,1/2"

4шт.

19

195-33

WASHER,1/2"

- flat, 1/2"

4шт.
