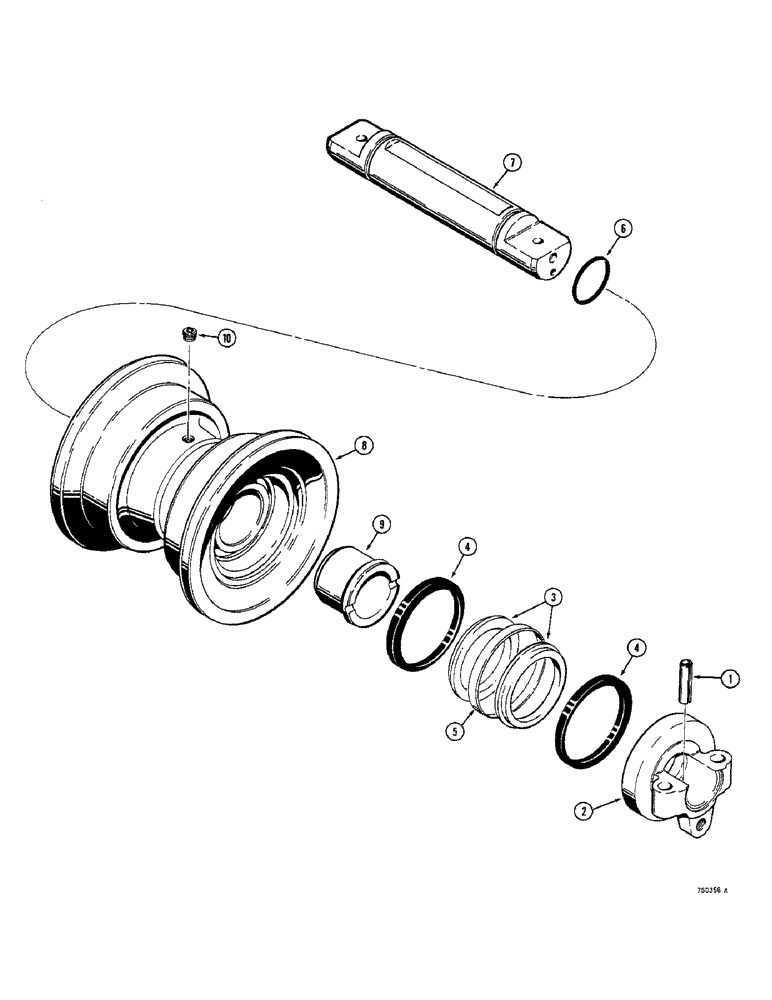

Запчасти Case 350 (160) - R36470 TRACK ROLLER - FACE SEAL (04) - UNDERCARRIAGE

R36470

ROLLER ASSY.

ROLLER ASSEMBLY - track, Includes: Ref. 1 - 10

10шт.

1

R33570

PIN

- cap retaining

2шт.

2

R36469

CYLINDER END CAP

CAP - end collar

2шт.

R39273

SEAL

- face, Includes: Ref. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

BODY - seal, split

1шт.

D36826

SEAL KIT

KIT - repair

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - rubber, Includes: Ref. 5

2шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

6

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

- shaft

2шт.

7

R33952

SHAFT

- roller

1шт.

R36467

ROLLER

HUB ASSEMBLY - roller, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

HUB - roller

1шт.

9

R33951

BUSHING

- roller

2шт.

10

R33557

PLUG

- roller

1шт.
