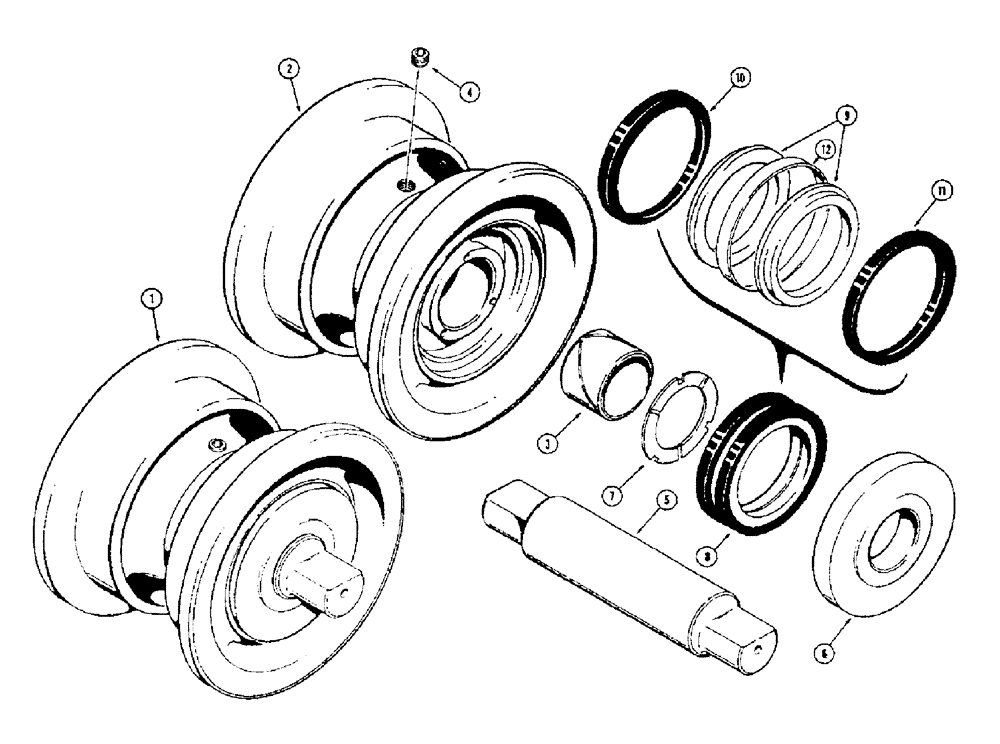

Запчасти Case 350 (158) - TRACK ROLLER - FACE SEAL (04) - UNDERCARRIAGE

1

R36470

ROLLER ASSY.

ROLLER - track, face seal, order R36470, see figure 160, Includes: Ref. 2 - 12

10шт.

2

R24033

ROLLER, TRACK

HUB - track, roller, Includes: Ref. 3

1шт.

3

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split

2шт.

4

221-841

PLUG

- pipe, Allen head

1шт.

5

D43858

SHAFT

- track roller

1шт.

6

D35265

COLLAR

- thrust

2шт.

7

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

- thrust

2шт.

8

R39273

SEAL

- face, Includes: Ref. 9 - 12

2шт.

9

NSS

NOT SOLD SEPARAT

BODY - seal

1шт.

D36826

SEAL KIT

KIT - field repair, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - plastic

1шт.
