(158[1]) - TRACK CARRIER ROLLER

Запчасти Case 350 (158[1]) - TRACK CARRIER ROLLER (04) - UNDERCARRIAGE

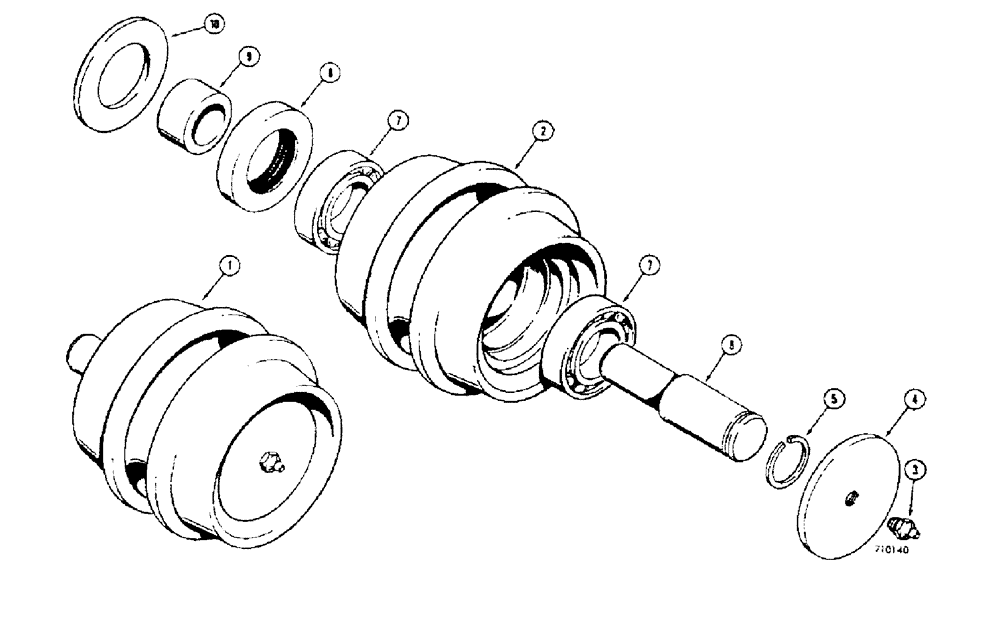

Схема запчастей Case 350 - (158[1]) - TRACK CARRIER ROLLER (04) - UNDERCARRIAGE
8
2
7
6
10
3
4
9
7
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D42203

ROLLER

ROLLER - track carrier, complete, Includes: Ref. 2 -10

2шт.

2

31163

ROLLER

HUB - track carrier roller

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

4

D42204

SHIELD

SPARE PART SHIELD - bearing

1шт.

5

A21619

CIRCLIP

RING - snap

1шт.

6

D42205

SHAFT

SPARE PART SHAFT - track carrier roller

1шт.

7

D47572

BEARING

BEARING - ball

2шт.

8

D29138

OIL SEAL

SEAL - oil, 4 lip

1шт.

9

D29133

SPACER

SPACER - bearing

1шт.

10

D29134

SHIELD

WASHER - special, shield

1шт.
