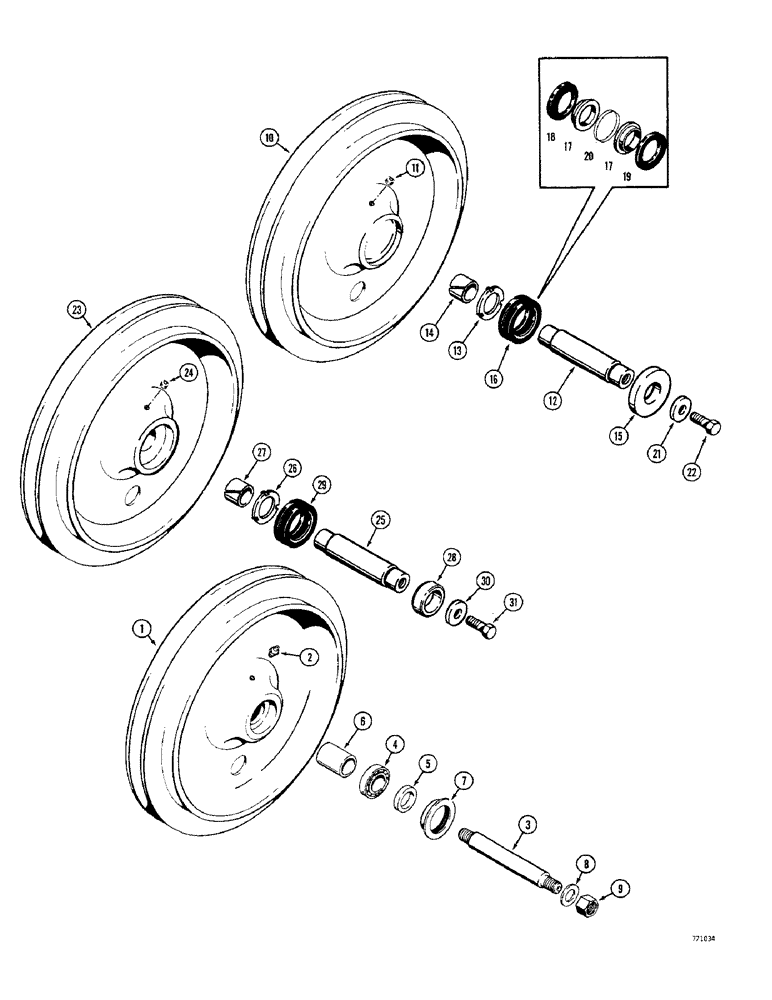

Запчасти Case 350 (154) - IDLER WHEEL, NON FACE SEALED IDLER WHEEL (04) - UNDERCARRIAGE

1

128844A1

FRONT IDLER

HUB - idler wheel

2шт.

2

219-23

LUBE NIPPLE,1/4" - 18 NPTF

GREASE FITTING - straight, 1/4" NPT

2шт.

3

D43790

SHAFT

- idler

2шт.

4

175192A1

BRACKET

- ball

4шт.

5

D31806

BUSHING,34.92mm ID x 52.32mm OD x 19.43mm L

SPACER - outer

4шт.

6

D46109

SPACER

- inner

2шт.

7

D31322

SEAL

- oil

4шт.

9

131-659

NUT,1"-8, GB

NUT - hex, self lock, 1" - 8 NC

4шт.

D51282

FRONT IDLER

IDLER WHEEL - complete, Includes: Ref. 10 - 20

2шт.

10

R35556

HUB

- idler wheel, face sealed idler wheel for identification, ref 15 stands out from hub

1шт.

11

221-841

PLUG

- pipe, hex socket, face sealed idler wheel for identification, ref 15 stands out from hub

1шт.

12

D51281

SHAFT

- idler wheel, face sealed idler wheel for identification, ref 15 stands out from hub

1шт.

13

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

COLLAR - thrust, face sealed idler wheel for identification, ref 15 stands out from hub

2шт.

14

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split, face sealed idler wheel for identification, ref 15 stands out from hub

2шт.

15

D35265

COLLAR

BUSHING - thrust, face sealed idler wheel for identification, ref 15 stands out from hub

2шт.

16

R39273

SEAL

- face sealed idler wheel for identification, ref 15 stands out from hub, Includes: Ref. 17 - 20

2шт.

17

NSS

NOT SOLD SEPARAT

BODY - seal, face sealed idler wheel for identification, ref 15 stands out from hub

1шт.

D36826

SEAL KIT

KIT - field repair, face sealed idler wheel for identification, ref 15 stands out from hub, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner, face sealed idler wheel for identification, ref 15 stands out from hub

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer, face sealed idler wheel for identification, ref 15 stands out from hub

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER - plastic, face sealed idler wheel for identification, ref 15 stands out from hub

1шт.

21

D21262

WASHER

- special, face sealed idler wheel for identification, ref 15 stands out from hub

4шт.

22

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

Face sealed idler wheel for identification, ref. 15 stands out from hub Hex, 3/4"-10 x 1 1/4", G5

4шт.

R33891

WHEEL (STEERING)

IDLER WHEEL - complete, for identification, ref 28 is flush with hub, Includes: Ref. 23 - 29

2шт.

23

R36353

FRONT IDLER

HUB - idler wheel, for identification, ref 28 is flush with hub

1шт.

24

221-841

PLUG

- pipe, hex socket, for identification, ref 28 is flush with hub

1шт.

25

D51281

SHAFT

- idler wheel, for identification, ref 28 is flush with hub

1шт.

26

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

COLLAR - thrust, for identification, ref 28 is flush with hub

2шт.

27

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split, for identification, ref 28 is flush with hub

2шт.

28

R33866

SPACER

for identification, ref 28 is flush with hub

2шт.

29

R36330

OIL RESERVOIR

SEAL - face, for identification, ref 28 is flush with hub

2шт.

30

D21262

WASHER

- special, for identification, ref 28 is flush with hub

4шт.

31

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

For identification, ref. 28 is flush with hub Hex, 3/4"-10 x 1 1/4", G5

4шт.
