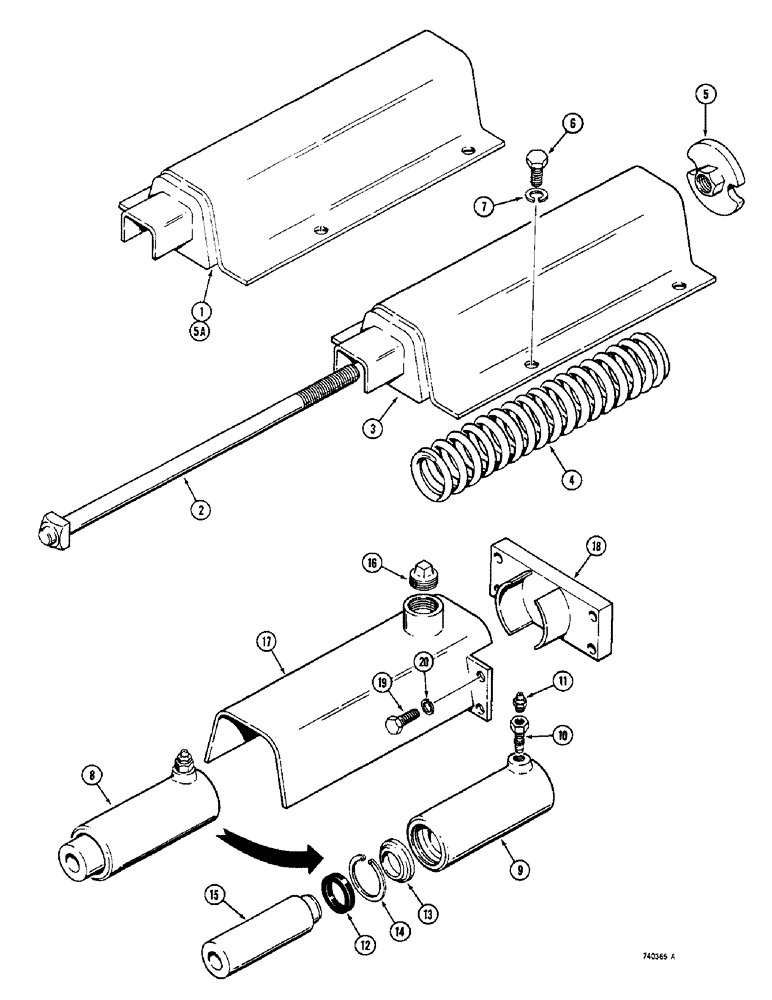

Запчасти Case 350 (152) - SPRING AND RECOIL SYSTEM AND TRACK ADJUSTER (04) - UNDERCARRIAGE

1

NSS

NOT SOLD SEPARAT

RECOIL SPRING ASSEMBLY - complete, early production, Includes: Ref. 2 - 5

2шт.

(Prior to Jan, 1978)

1шт.

2

D43520

ADJUSTMENT SCREW

- track adjusting

1шт.

3

D42191

HOUSING

- recoil spring

1шт.

4

D39498

SPRING

- recoil

2шт.

THIS ONLY REQUIRES 1 PIECE.

1шт.

5

D42193

LARGE PLATE

PLATE - tension adjusting

1шт.

5a

R40853

HOUSING

RECOIL SPRING ADJUSTING - components not serviced, late production

2шт.

6

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

8шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

8

D42202

ADJUSTER

TRACK ADJUSTER - hydraulic, complete, Includes: Ref. 9 - 15

2шт.

9

D42199

CYLINDER BLOCK

CYLINDER - track adjusting

1шт.

10

D35287

CHECK VALVE,5/8" - 18

BALL CHECK ASSEMBLY - track adjusting

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

12

D95381

CUP

PACKING - cylinder

1шт.

13

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston

1шт.

14

D37291

SNAP RING,#250, 2.673", Int

RING - snap, if used

1шт.

15

D42201

PISTON

- track adjusting

1шт.

16

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

pipe Sq Hd, 1 1/4"-11 1/2 NPTF

2шт.

17

D43513

COVER

- track adjusting

2шт.

18

D43510

MOUNTING PARTS

MOUNTING - track adjusting

2шт.

19

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

8шт.

20

92-8

LOCK WASHER,1/2"

8шт.
