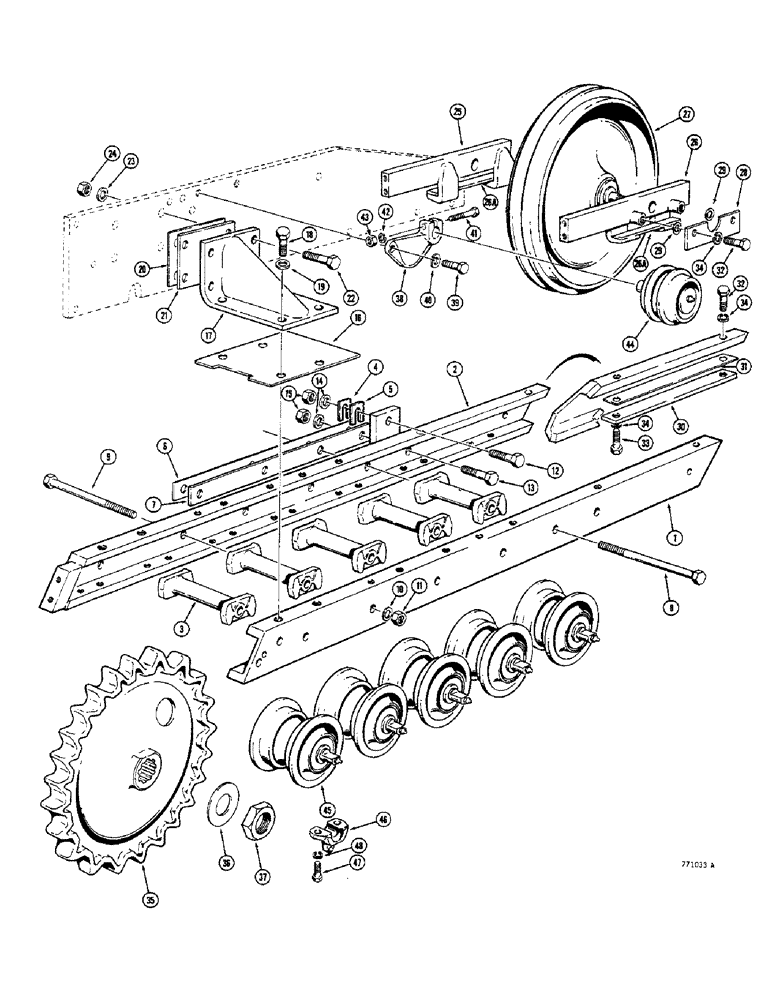

Запчасти Case 350 (150) - TRACK FRAME AND ROLLERS (04) - UNDERCARRIAGE

1

D43538

CHANNEL

Track, RH outer

1шт.

1

D43537

SPARE PART Track, Outer

1шт.

2

D43540

SPARE PART Track, Inner

1шт.

2

D43539

SPARE PART Track, Inner

1шт.

3

NL

Track channel

10шт.

4

R37993

SHIM,.0747" Thk

(1.88 mm)

1шт.

5

R37992

SHIM,.1875" Thk

(4.76 mm)

1шт.

6

D30052

SHIM,.0747" Thk

(1.88 mm)

1шт.

7

D30053

SHIM,.1875" Thk

(4.76 mm)

1шт.

8

15-12200

BOLT,Hex, 3/4" - 10 x 12-1/2", Gr 5

Hex, 3/4" - 16 NF x 12-1/2"

6шт.

9

15-12176

BOLT,Hex, 3/4" - 10 x 11"

Hex, 3/4" - 10 NC x 11"

4шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

10шт.

11

25-1012

NUT,3/4"-10, G5

10шт.

12

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

13

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

14

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

4шт.

15

25-1012

NUT,3/4"-10, G5

4шт.

16

D42209

SPARE PART Track frame

2шт.

17

D29059

SPARE PART Mounting, track frame

2шт.

18

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

19

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

8шт.

20

D29759

SHIM,.0747" Thk

(1.90 mm)

1шт.

21

D29758

SHIM,.1875" Thk

(4.76 mm)

1шт.

22

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

8шт.

23

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

8шт.

24

131-657

LOCK NUT,3/4"-10, GB

Hex

8шт.

25

D43619

SUPPORT

BRACKET - Idler wheel mounting, LH, Includes Ref. 26A

2шт.

26

D43618

SUPPORT

BRACKET - Idler wheel mounting, RH, Includes Ref. 26A

2шт.

26a

D43525

PLATE ASSY.

Wear

4шт.

27

REF

INSTRUCTION

IDLER WHEEL - parts list figure 154

2шт.

28

D43509

LARGE PLATE

PLATE, LARGE GUIDE - idler

4шт.

29

D44330

SHIM,.031" Thk

Guide plate

1шт.

30

D35276

PLATE

Wear, track channel

4шт.

31

D35290

STRIP

SHIM - wear plate

1шт.

32

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

12шт.

33

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

34

92-10

LOCK WASHER,5/8"

16шт.

35

D43357

DRIVE SPROCKET

Standard

2шт.

35

D43358

Drive, snow, optional

2шт.

36

D29125

WASHER,57.94mm ID x 114.3mm OD x 1.59mm Thk

Keeper, special

2шт.

37

D29126

LOCK NUT

Special

2шт.

38

D42198

SUPPORT

BRACKET - carrier roller

2шт.

39

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

40

92-10

LOCK WASHER,5/8"

4шт.

41

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

42

92-8

LOCK WASHER,1/2"

2шт.

43

25-108

NUT,1/2"-13, G5

Hex

2шт.

44

D42203

ROLLER

Track carrier, parts list figure 158

2шт.

45

REF

INSTRUCTION

ROLLER - track, see figures 156 thru 160 for proper rollers

10шт.

46

51200225

CAP

D31698 and D33213 roller retainer

20шт.

46

D42206

SPARE PART R24034 roller retainer

20шт.

47

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Use with D33830 cap only, if used

40шт.

47

113-2443

SPARE PART Hex, 1/2" - 13 NC x 1-1/2", use with D33830 cap only, if used

40шт.

47

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Use with D42206 cap only

40шт.

47

113-2444

SPARE PART Hex, 1/2" - 13 NC x 1-3/4", use with R36470 roller only

40шт.

48

92-8

LOCK WASHER,1/2"

Use with 13-824 and 13-828 bolts only

40шт.
