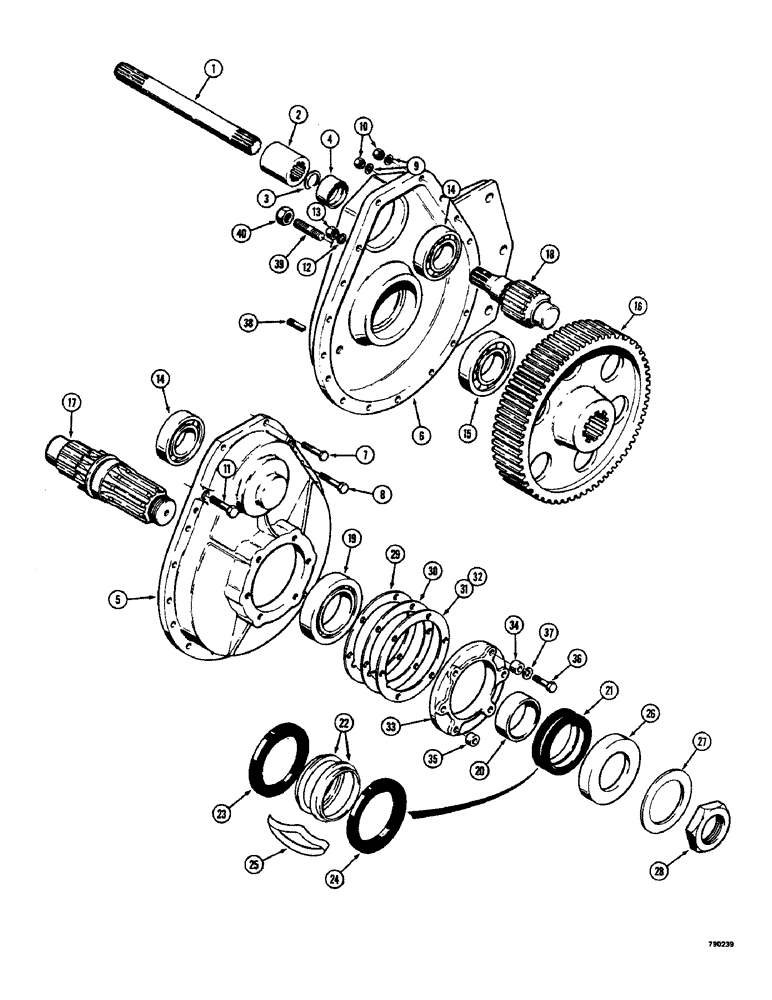

Запчасти Case 350 (148) - FINAL DRIVE AND AXLE SHAFT (03) - TRANSMISSION

1

D31519

SHAFT

- axle, 48" (1219 MM) gauge only

2шт.

1

D50193

SHAFT - axle, 60" (1524 MM) gauge, 6 and 10 spline ends

2шт.

1

R24224

SHAFT

- axle, 60" (1524 MM) gauge, 10 spline both ends, angle tilt dozer and drawbar models

2шт.

1

D50194

SHAFT - axle, 72" (1829 MM) gauge, 6 and 10 spline ends

2шт.

1

R24223

SHAFT

- axle, 72" (1829 MM) gauge, 10 spline both ends

2шт.

2

D32730

COUPLING

- final drive, D31519, R24224 and R24223 shafts

25шт.

3

D32722

RING, SNAP

RING - retaining

1шт.

2

51200026

COUPLING

- D50193 and D50194 shafts, Includes: Ref. 3

2шт.

3

D32722

RING, SNAP

RING - retaining

2шт.

4

D32723

SPACER

- shaft

2шт.

5

D24658

HOUSING

- outer

2шт.

6

D29736

HOUSING - inner, right hand

1шт.

6

D29737

HOUSING - inner, left hand

1шт.

7

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5 (48" (1219 mm) gauge only)

18шт.

8

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

10шт.

9

92-7

LOCK WASHER,7/16"

28шт.

10

25-107

NUT,7/16"-14, G5

- hex, 7/16" - 14 NC

28шт.

11

D24688

BOLT

BOLT - special

6шт.

12

92-8

LOCK WASHER,1/2"

6шт.

13

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

6шт.

14

40002

BALL BEARING

- ball, final drive pinion

4шт.

15

40003

BEARING

- ball, final drive shaft, inner

2шт.

16

CAS11833

GEAR WHEEL

GEAR - final drive

2шт.

17

CAS11853

SHAFT

- final drive

2шт.

18

51200027

SHAFT

- pinion, used with D50193 and D50194 shafts

2шт.

11832 IS 7 1/4" LONG, HAS 12 TOOTH GEAR IN CENTER AREA OF SHAFT AND A 6 TOOTH SPLINE ON END OF SHAFT. D31514 IS SAME EXCEPT HAS 10 TOOTH SPLINE ON END OF SHAFT. PH-CAM FROM QUALITY COMMENTS.

1шт.

18

D31514

SHAFT

- pinion, used with D31519, R24223 and R24224 shafts

2шт.

19

D46981

BALL BEARING

BEARING - ball, final drive shaft, outer

2шт.

20

D43360

SPACER

- final drive shaft

2шт.

21

R39274

SEAL

- face, Includes: Ref. 22 - 25

2шт.

22

NSS

NOT SOLD SEPARAT

BODY - seal

1шт.

D44075

SEAL

KIT - seal, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer

1шт.

25

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

26

D43359

RETAINER

- seal, outer

2шт.

27

D29125

WASHER,57.94mm ID x 114.3mm OD x 1.59mm Thk

- hardened, special

2шт.

28

D29126

LOCK NUT

- special, lock

2шт.

29

D46986

SHIM,.002" Thk

(0.05 mm) .002" Thk

1шт.

30

D46985

SHIM,.020" Thk

(0.50 mm) .020" Thk

1шт.

31

D46984

SHIM

- .010" (0.25 MM) thick

1шт.

32

D46983

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

33

D43356

RETAINER

- seal, final drive shaft

2шт.

34

D43608

SPACER

- seal guard

2шт.

35

D43408

SPACER

- seal guard

10шт.

36

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

12шт.

37

92-6

LOCK WASHER,3/8"

12шт.

38

221-675

PLUG

- magnetic, 1/2" NPT

4шт.

39

R29874

STUD

- 5/8" - 11 NC x 2-1/4"

16шт.

40

131-656

LOCK NUT,5/8"-11, GB

NUT - hex, self lock, 5/8" - 11 NC

16шт.
