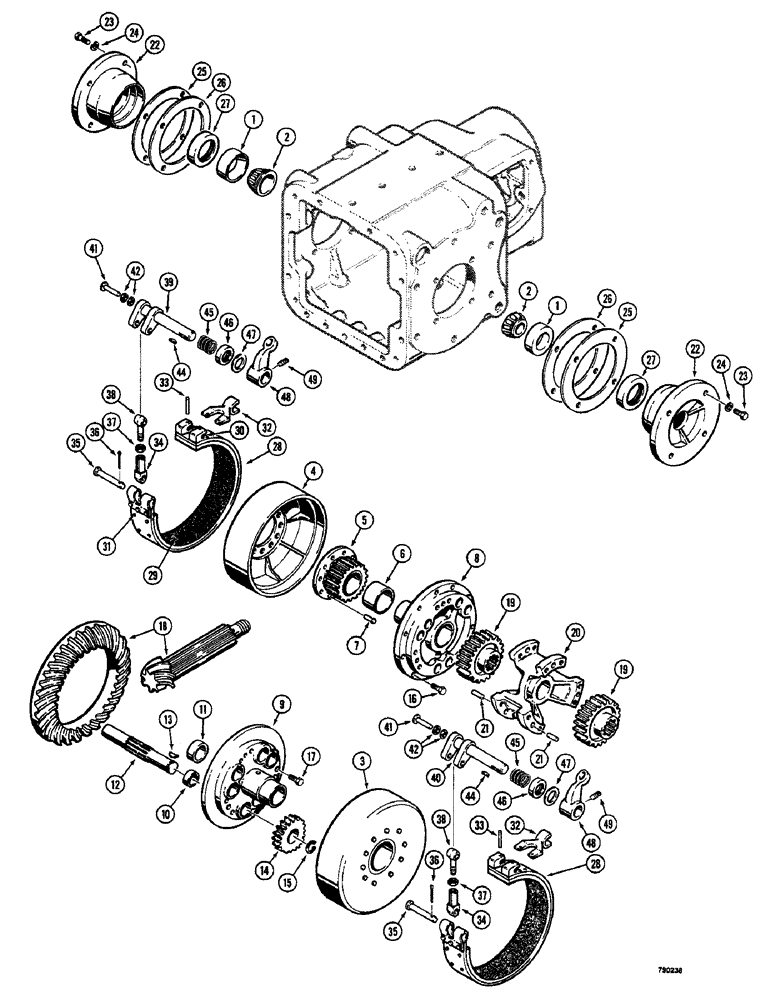

Запчасти Case 350 (144) - TRANSMISSION, DIFFERENTIAL AND BRAKES (03) - TRANSMISSION

R29910

TRANSMISSION

ASSEMBLY - includes parts on figures 138 thru 146, Includes: Ref. 1 - 49

1шт.

D20533

DIFFERENTIAL AND DRUM ASSEMBLY - complete, Includes: Ref. 1 - 21

1шт.

1

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing

2шт.

2

40465

ROLLER BEARING,1.75" ID x 1"

CONE - bearing

2шт.

3

D20425

PINION

DRUM, GEAR AND BUSHING ASSEMBLY - brake, Includes: Ref. 4 - 7

2шт.

4

NLS

NO LONGER SERVICED

DRUM - brake

1шт.

5

D20426

GEAR

ASSEMBLY - brake drum, Includes: Ref. 6

1шт.

6

11288

BEARING

BUSHING - gear

1шт.

7

14934

RIVET

- brake drum

10шт.

8

NLS

NO LONGER SERVICED

HOUSING - differential, RH, Includes: Ref. 10 and 11

1шт.

9

11410

HOUSING - differential, LH, Includes: Ref. 10 and 11

1шт.

10

CASCAS11414

BUSHING - pinion shaft

6шт.

11

11415

BEARING

BUSHING - sun gear

1шт.

12

D20422

SHAFT

- pinion

6шт.

13

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

6шт.

14

D20421

PLANETARY GEAR

GEAR - planetary

6шт.

15

11455

RING, SNAP

RING - retaining, planetary gear

6шт.

16

CAS11424

SCREW

BOLT - special, housing

12шт.

16a

391-701

ELECTRICAL WIRE

LOCKWIRE - housing bolts, 18 gauge x 6", not shown

6шт.

17

NLS

NO LONGER SERVICED

BOLT - special, ring gear

12шт.

17a

391-712

LOCKWIRE - ring gear bolts, 18 gauge x 26", not shown

1шт.

18

R25584

GEAR WHEEL

GEAR SET - differential, pinion and ring gear, matched set

1шт.

19

D20423

PINION

GEAR - sun

2шт.

20

D30698

HOUSING

- differential center member

1шт.

21

CASCAS11426

PIN - dowel, housing

36шт.

22

11425

CARRIER

- bearing, differential

2шт.

23

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

24

92-8

LOCK WASHER,1/2"

8шт.

25

CAS11427

SHIM

- .004" (0.1 MM) thick

1шт.

26

NLS

NO LONGER SERVICED

- .010" (0.25 MM) thick

1шт.

27

D49930

OIL SEAL

SEAL - oil, differential

2шт.

R29910

TRANSMISSION

ASSEMBLY - continued

1шт.

28

R29904

BAND

AND LINING ASSEMBLY - brake, Includes: Ref. 29 - 31

2шт.

R29906

LINING

KIT - brake lining, both sides, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

LINING - brake band

2шт.

30

D23567

RIVET - brake band

2шт.

31

D2692

RIVET - brake band lining

38шт.

32

D28973

SPACER

STRUT - brake

2шт.

33

138-41

LOCK PIN,3/32" x 3/4", Slotted

Pin, 3/32" x 3/4", Slotted

4шт.

34

D23382

CLEVIS COUPLING

CLEVIS - brake band

2шт.

35

D23384

PIN

- clevis

2шт.

36

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

N7516

LINKAGE

KIT - linkage, Includes: Ref. 37 and 38

1шт.

37

D23383

NUT

- hex, clevis adjusting arm

2шт.

38

R43931

ARM

- clevis adjusting

2шт.

39

D23768

CAM

- brake, LH

1шт.

40

D23767

CAM

- brake, RH

1шт.

41

D23384

PIN

- clevis

2шт.

42

D23404

WASHER

- clevis pin

6шт.

44

126-19

WOODRUFF KEY,#11, 3/16" x 7/8"

KEY - Woodruff, no. 11

2шт.

45

11439

SPRING

- brake cam

2шт.

46

A31178

OIL SEAL

SEAL - oil, brake cam

2шт.

47

11440

WASHER

- brake cam

2шт.

48

D23011

LEVER

- brake, steering rod connection

2шт.

49

D23016

SCREW

- set, brake lever retaining

2шт.

391-804

ELECTRICAL WIRE

LOCKWIRE - brake lever set screw, not illustrated

8шт.
