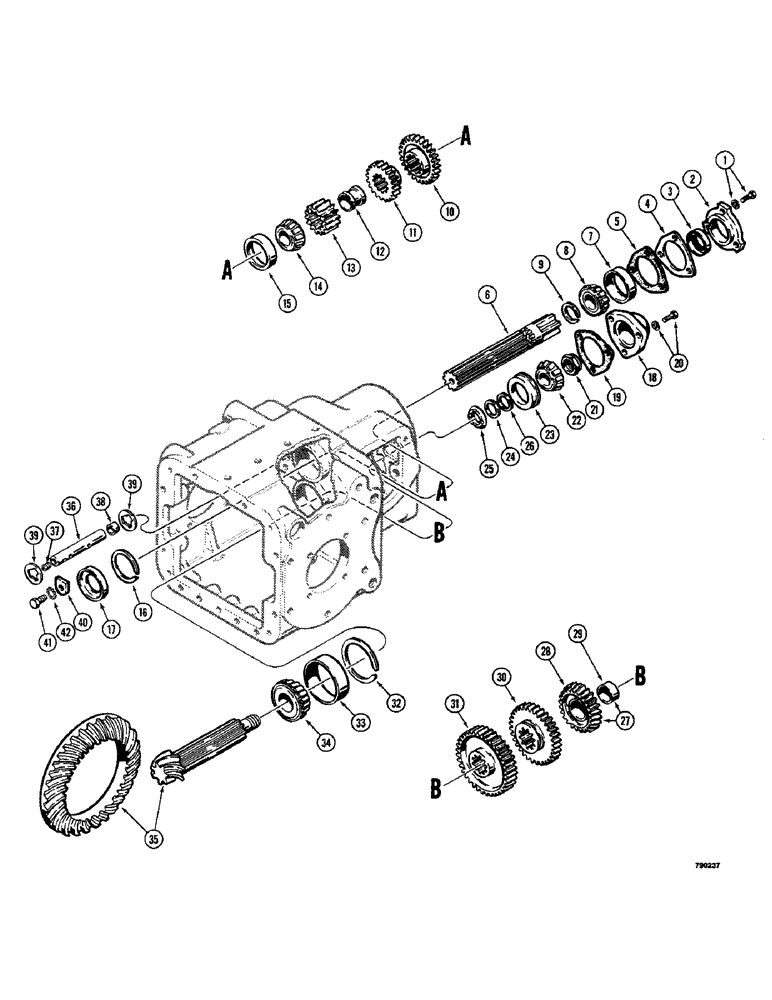

Запчасти Case 350 (142) - TRANSMISSION, DIFFERENTIAL AND GEARS (03) - TRANSMISSION

R29910

TRANSMISSION

ASSEMBLY - includes parts on figures 138 thru 146, Includes: Ref. 1 - 42

1шт.

1

23016

CAP

BOLT AND LOCK WASHER - bearing cap

3шт.

D33872

CAP ASSY.

CAP AND SEAL ASSEMBLY - mainshaft front bearing, Includes: Ref. 2 and 3

1шт.

2

D66232

CAP

- mainshaft front bearing

1шт.

3

D80532

OIL SEAL

- oil, bearing cap

1шт.

4

D20541

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

4

11367

SHIM

- .010" (0.25 MM) thick

1шт.

4

11368

SHIM

- .005" (0.12 MM) thick

1шт.

5

51200023

GASKET

- front bearing cap, mainshaft

1шт.

6

D33873

MAIN SHAFT

MAINSHAFT - transmission

1шт.

7

O4056TS

CUP

- bearing

1шт.

8

A31074

CONE

- bearing

1шт.

9

A29978

RING, SNAP

RING - retaining, mainshaft front bearing

1шт.

10

11366

GEAR

- mainshaft, constant mesh

1шт.

11

11365

GEAR

- mainshaft, second speed

1шт.

12

NLS

NO LONGER SERVICED

- mainshaft gear

1шт.

13

CAS11363

PINION

GEAR - mainshaft, low and reverse

1шт.

14

A31074

CONE

- bearing

1шт.

15

O4056TS

CUP

- bearing

1шт.

16

11453

TAPERED BEARING

RING - retaining, mainshaft rear bearing

1шт.

17

11371

CUP ASSY.

CUP - oil, mainshaft rear bearing

1шт.

18

D37368

CYLINDER END CAP

CAP - bearing

1шт.

19

D37369

GASKET

- bearing cap

1шт.

20

23016

CAP

BOLT AND LOCKWASHER - bearing cap

3шт.

21

11380

NUT

- adjusting, countershaft front bearing

1шт.

22

A31272

ROLLER BEARING,1" ID x 0.8125"

CONE - bearing

1шт.

23

D37370

BEARING CUP,2.6542" OD x 0.625"

CUP - bearing

1шт.

24

D27621

SPACER

WASHER - spacer, .0469" (1.19 MM) thick

1шт.

25

11378

BELLEVILLE WASHER

- retaining, countershaft third gear

1шт.

26

D27618

SHIM,.004" Thk

Steel (0.1 mm) .004" Thk

1шт.

26

D27619

SHIM,.007" Thk

Steel (0.18 mm) .007" Thk

1шт.

26

D27620

SHIM,.010" Thk

Steel (0.25 mm) .010" Thk

1шт.

27

11375

GEAR

ASSEMBLY - countershaft, third, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

GEAR - third

1шт.

29

11376

BUSHING

- third gear

1шт.

30

D37372

GEAR

- sliding, countershaft, second and third

1шт.

31

11373

BALL BEARING

- countershaft, first and reverse

1шт.

32

11451

RING, SNAP

RING - retaining, countershaft rear bearing

1шт.

33

40385

BEARING,3.375" OD x 0.9375"

CUP - bearing

1шт.

34

40384

ROLLER BEARING

CONE - bearing

1шт.

35

R25584

GEAR WHEEL

GEARS - differential pinion and ring gear, matched set

1шт.

34592

SHAFT

REVERSE IDLER SHAFT ASSEMBLY - transmission, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SHAFT - reverse idler

1шт.

37

221-1041

PLUG

- pipe, slotted

1шт.

38

D49381

SPACER

- shift rail, no longer used, not required

1шт.

39

D29626

WASHER

- thrust, reverse idler, no longer used, not required

2шт.

40

11385

LOCK ASSY

LOCK - reverse idler shaft

1шт.

41

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

42

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

1шт.
