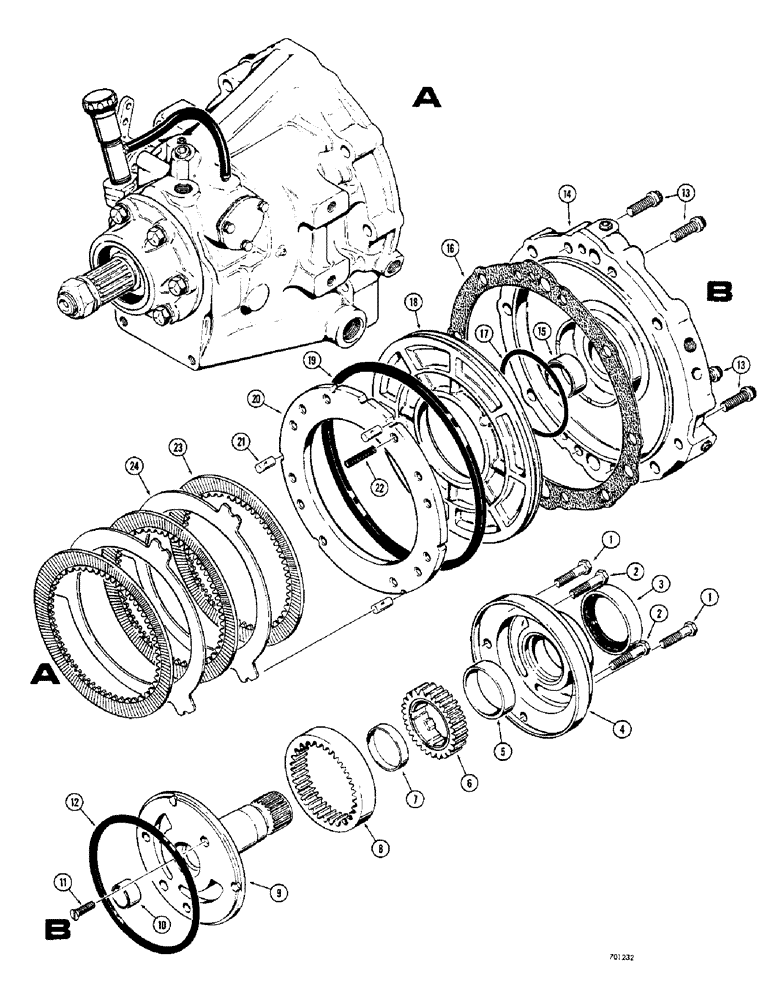

Запчасти Case 350 (136) - POWER SHUTTLE TRANSMISSION - ALL MODELS, FRONT PUMP AND REVERSE CLUTCH (03) - TRANSMISSION

REF

INSTRUCTION

SHUTTLE ASSEMBLY - complete, see figures 122 thru 136, Includes: Ref. 1 - 24

1шт.

1

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16" - 18 NC x 1-3/4"

2-4шт.

2

13-530

BOLT,Hex, 5/16" - 18 x 1-7/8", Gr 5

- hex, 5/16" - 18 NC 1-7/8", used only where two different lengths of bolts are required

2шт.

D51231

PUMP, HYDRAULIC

PUMP ASSEMBLY - front, D48467 and R24152 shuttles, use R29995, Includes: Ref. 3 - 10

1шт.

137093A1R

REMAN-HYD PUMP

350, for Part No. D51231, N.A. Only

1шт.

137093A1C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

3

L30489

OIL SEAL

- oil, front

1шт.

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - front, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - front pump

1шт.

5

D50071

BUSHING

- front pump

1шт.

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - pump drive, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - pump drive

1шт.

7

D50072

BUSHING

- pump drive gear

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - pump driven

1шт.

NSS

NOT SOLD SEPARAT

SUPPORT ASSEMBLY - converter, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

SUPPORT - converter

1шт.

10

D50073

BUSHING

- converter support

1шт.

R29995

PUMP

ASSEMBLY - front, R29681, R35238 and R40677 shuttles, Includes: Ref. 3 - 11

1шт.

3

L30489

OIL SEAL

- oil, front

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - front pump, Includes: Ref. 5

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front pump

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - pump drive, Includes: Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

BUSHING - pump gear drive

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - pump driven

1шт.

9

NSS

NOT SOLD SEPARAT

SUPPORT - converter, Includes: Ref. 10

1шт.

10

NSS

NOT SOLD SEPARAT

BUSHING - converter support

1шт.

11

171-100

SCREW,Sl Flat Hd, #10 - 24 x 3/4"

- machine, no. 10-24 NC x 3/4"

1шт.

12

L30487

GASKET,140.49mm ID x 150.02mm OD x 3.02mm Thk

- front pump

1шт.

13

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - ferry cap, 3/8" - 16 NC x 1-1/4"

4шт.

D50022

ADAPTER

ASSEMBLY - forward and reverse, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

ADAPTER - forward and reverse

1шт.

15

D50074

BUSHING,34.92mm ID x 38.13mm OD x 17.46mm L

- adapter

1шт.

16

D50033

GASKET,0.58mm Thk

-, Serial Range: adapter-case

1шт.

17

D50034

O-RING,0.139" Thk x 3.484" ID

O-RING - small

1шт.

18

D50035

PISTON

- reverse clutch

1шт.

19

D50036

SEALING RING,194.51mm ID x 232.84mm OD x 3.17mm Thk

O-RING - large

1шт.

20

D50037

PLATE

- pressure, reverse clutch

1шт.

21

D50038

PIN

DOWEL PIN - pressure plate

3шт.

22

D50039

SPRING

- pressure plate

12шт.

23

D50040

PLATE

CLUTCH PLATE - internal tooth

3шт.

24

D50041

CLUTCH PLATE,155.57mm ID x 215.09mm OD x 1.8mm Thk

CLUTCH PLATE - external flange

2шт.
