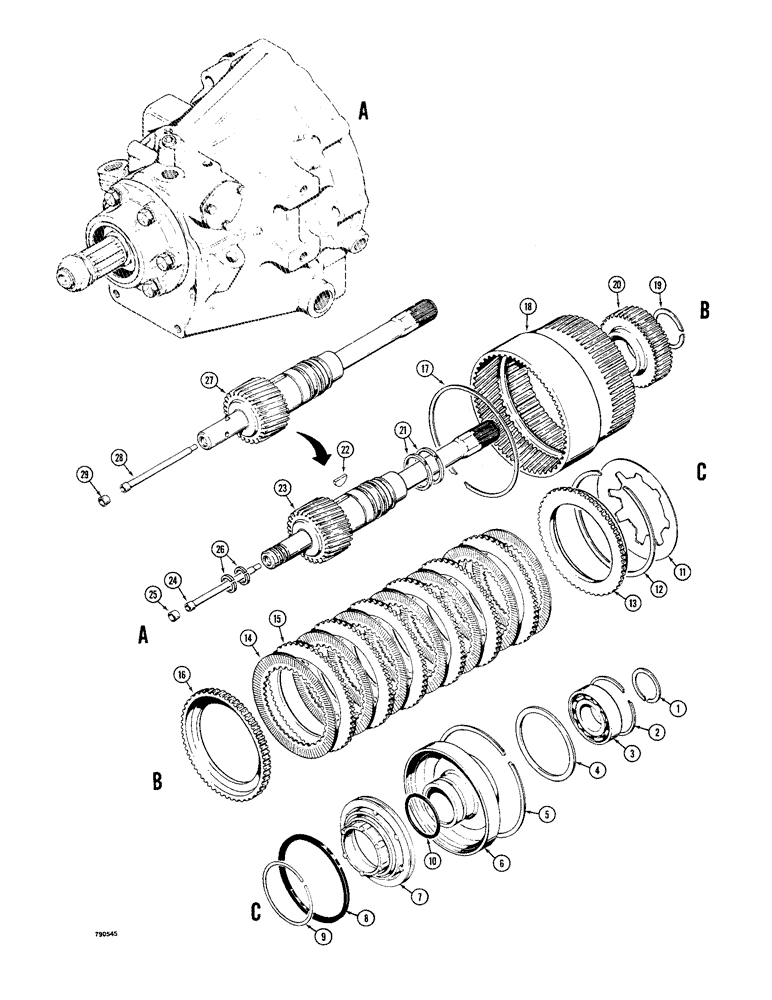

Запчасти Case 350 (134) - POWER SHUTTLE TRANSMISSION - ALL MODELS, DRIVE GEAR AND FORWARD CLUTCH (03) - TRANSMISSION

REF

INSTRUCTION

SHUTTLE ASSEMBLY - for complete shuttle, see figures 122 thru 136, Includes: Ref. 1 - 29

1шт.

1

D50042

RING

SNAP RING - bearing retaining, small

1шт.

2

D50043

RING

SNAP RING - bearing retaining, large

1шт.

3

D50044

BALL BEARING

BEARING - clutch cylinder

1шт.

4

D50045

WASHER,79.76mm ID x 93.73mm OD x 1.73mm Thk

- thrust

1шт.

D83123

GEAR, RING

RING GEAR AND CLUTCH ASSEMBLY - shuttle, Includes: Ref. 5 - 18

1шт.

5

D50046

RING

SNAP RING - ring gear retaining

1шт.

6

D50075

CYLINDER

- forward clutch

1шт.

Part of Cylinder and Piston Kit P/N D50023

1шт.

7

D50076

PISTON

- forward clutch

1шт.

Part of Cylinder and Piston Kit P/N D50023

1шт.

8

D50077

RING

- clutch

1шт.

Part of Cylinder and Piston Kit P/N D50023

1шт.

9

D50078

RING,3.17mm Thk x 77.22mm ID, 40 Duro

- bearing

1шт.

Part of Cylinder and Piston Kit P/N D50023

1шт.

10

D50079

O-RING,0.139" Thk x 2" ID

O-RING - cylinder

1шт.

Part of Cylinder and Piston Kit P/N D50023

1шт.

11

D50047

BELLEVILLE WASHER,73.025mm ID x 134.95mm OD x 1.854mm Thk

- Belleville, forward clutch

1шт.

12

D50048

CIRCLIP

RING - retaining, clutch spring

1шт.

D50024

CLUTCH

PACK KIT - forward clutch, Includes: Ref. 13 - 16

1шт.

13

D50081

PLATE,139.12mm OD

PRESSURE PLATE - front

1шт.

14

D50082

PLATE

CLUTCH PLATE - internal tooth

7шт.

15

D50083

PLATE

CLUTCH PLATE - external tooth

6шт.

16

D50084

PLATE,139.45mm OD

PRESSURE PLATE - rear

1шт.

17

D50051

SNAP RING

- .050" to .054" (1.27 MM to 1.37 MM) thick

1шт.

17

D78397

RING

SNAP RING - .062" to .066" (1.575 MM to 1.676 MM) thick

1шт.

17

D50052

RING

SNAP RING - .074" to .078" (1.88 MM to 1.98 MM) thick

1шт.

17

D78398

RING

SNAP RING - .084" to .088" (2.134 MM to 2.235 MM) thick

1шт.

17

D50053

RING

SNAP RING - .096" to .100" (2.44 MM to 2.54 MM) thick

1шт.

18

D50054

GEAR

RING GEAR - shuttle

1шт.

19

D50049

RING

SNAP RING - clutch hub

1шт.

20

D50050

HUB

- clutch

1шт.

21

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

- sealing

2шт.

Part of Cylinder and Piston Kit P/N D50023

1шт.

22

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

D70666

GEAR

DRIVE GEAR AND SHAFT ASSEMBLY - R40677 shuttle only, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT - shuttle

1шт.

24

D70667

TUBE,0.3155" DIA x 5.26" L

- forward clutch supply

1шт.

25

D50086

PLUG

- shaft end

1шт.

26

D70668

RING,Split, 18.34mm ID x 20.88mm OD x 2.34mm Thk

- seal, R40677 shuttle only

2шт.

D50025

GEAR WHEEL

DRIVE GEAR AND SHAFT ASSEMBLY - D48467, R24152, R29681 and R35238 shuttles only, Includes: Ref. 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT - drive

1шт.

28

D50085

TUBE

- forward clutch supply

1шт.

29

D50086

PLUG

- shaft end

1шт.

D50023

GASKET

CYLINDER AND PISTON KIT - forward clutch, available on all shuttles except R40677, Includes: Ref. 6, 7, 8, 9, 10 and 21

1шт.
