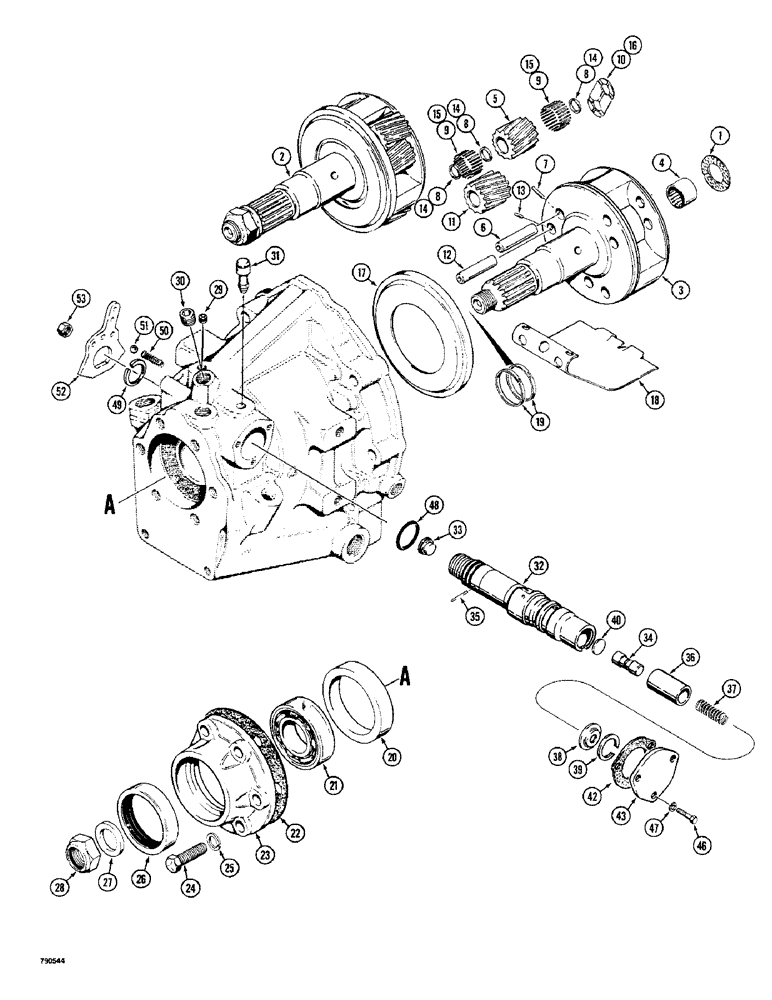

Запчасти Case 350 (130) - R40677 POWER SHUTTLE TRANSMISSION, PINION CAGE AND OUTPUT SHAFT S/N3065738 AND AFTER (03) - TRANSMISSION

R40677

SHUTTLE ASSEMBLY - for complete shuttle, see figures 124 and 130 thru 136, Includes: Ref. 1 - 53

1шт.

1

D50055

WASHER, THRUST,22.38mm ID x 44.45mm OD x 1.6mm Thk

WASHER - thrust, clutch hub

1шт.

2

D70665

GEAR

PINION CAGE AND OUTPUT SHAFT ASSEMBLY - shuttle, Includes: Ref. 3 - 17

1шт.

3

NSS

NOT SOLD SEPARAT

CAGE AND SHAFT - shuttle

1шт.

4

H747964

NEEDLE BEARING,Needle, 20.64mm ID x 26.99mm OD x 22.23mm W

BEARING - needle

1шт.

D50030

GEAR

KIT - inner pinion, Includes: Ref. 5 - 10

3шт.

5

NSS

NOT SOLD SEPARAT

GEAR - inner pinion

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - inner pinion

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - shaft retaining

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - pinion

3шт.

9

NSS

NOT SOLD SEPARAT

ROLLER - pinion bearing

48шт.

10

NSS

NOT SOLD SEPARAT

PLATE - thrust

2шт.

D50031

KIT

- outer pinion, Includes: Ref. 11 - 16

3шт.

11

NSS

NOT SOLD SEPARAT

GEAR - outer pinion

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - outer pinion

1шт.

13

NSS

NOT SOLD SEPARAT

PIN - shaft retaining

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER - pinion bearing

3шт.

15

NSS

NOT SOLD SEPARAT

ROLLER - pinion bearing

48шт.

16

NSS

NOT SOLD SEPARAT

PLATE - thrust

2шт.

17

D50087

RING

- collector

1шт.

18

D50056

GUARD

BAFFLE - plate

1шт.

19

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

- seal

2шт.

20

D50057

SLEEVE

- rear bearing spacer

1шт.

21

40011

BEARING,1.378" ID x 3.1496" OD x 0.8268"

- output shaft

1шт.

22

D50058

GASKET

- bearing retainer

1шт.

23

D50059

BEARING HOUSING

RETAINER - rear bearing

1шт.

24

13-718

SCREW,Hex, 7/16" - 14 x 1 1/8", Gr 5

BOLT, Hex, 7/16"-14 x 1 1/8", G5, Full Thd

6шт.

25

92-7

LOCK WASHER,7/16"

6шт.

26

D50060

SEAL,53.98mm ID x 77.93mm OD x 13.11mm Thk

- oil, rear

1шт.

27

D65247

WASHER

- ouput shaft

1шт.

345-84

ADHESIVE

SEAL - 3 oz. (88.7 ML) of sealer in tube, not shown, can be used between D65247 washer and end of shaft

1шт.

28

131-37

LOCK NUT,3/4"-16

NUT - hex, lock, 3/4" - 16 NF

1шт.

29

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

2шт.

30

221-643

PLUG - hex socket head, 3/8" NPT

1шт.

31

D50062

BREATHER

- shuttle

1шт.

D83122

SHAFT

VALVE ASSEMBLY - shuttle, Includes: Ref. 32 - 35

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

33

S113433

PLUG

- cup

1шт.

34

S113431

PLUG - valve

1шт.

35

135-198

GROOVED PIN,5/64" x 1", Type B

PIN, GROOVED, 5/64" x 1", Type B

1шт.

36

D50089

VALVE

- pressure regulator, Includes: Ref. 37 - 40

1шт.

37

D50090

SPRING

- valve

1шт.

38

D50091

RETAINER,9.53mm ID x 28.42mm OD x 1.34mm Thk

- spring

1шт.

39

D50092

RING

SNAP RING - spring retaining

1шт.

40

41-12

PLUG,Exp, 3/4"

- expansion

1шт.

42

D50066

GASKET,0.41mm Thk

- valve cover

1шт.

43

D50067

COVER

- valve

1шт.

46

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

3шт.

47

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

48

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

- valve

1шт.

49

101-11112

SNAP RING,#112, 1.060", Ext

RING - retaining

1шт.

50

D50068

VALVE SPRING

SPRING - poppet

1шт.

51

211-9

BALL,5/16" Dia

- steel, meter 5/16" Dia

1шт.

52

D77621

LEVER

- shift

1шт.

53

131-424

NUT,PAL, 1 1/8"-7

NUT - hex lock, 1-1/8" - 7 NC

1шт.
