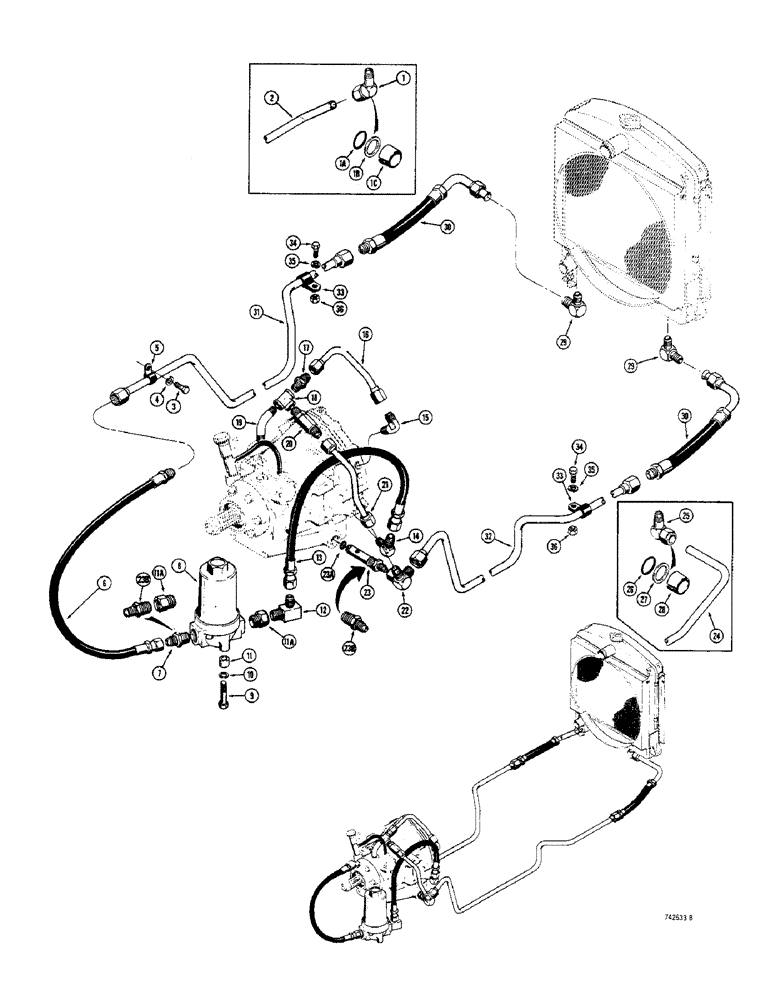

Запчасти Case 350 (116) - CRAWLER HYDRAULIC CIRCUIT, POWER SHUTTLE TRANSMISSION COOLING SYSTEM (03) - TRANSMISSION

1

222-3130

ELBOW - 45 degree, used with D48533 tube, Includes: Ref. 1A - 1C

1шт.

1a

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- elbow

1шт.

1b

D51413

RING - backup

1шт.

1c

222-3102

SLEEVE - elbow

1шт.

2

D48533

TUBE

- Used before tractor sn 3043089, for service, use refs 29 - 31

1шт.

3

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

1шт.

4

92-7

LOCK WASHER,7/16"

1шт.

5

D34174

CLAMP,5/8", 1/2" Bolt

- tube

1шт.

6

D48531

HOSE ASSY.

HOSE - 16" (406 MM) long

1шт.

7

218-1018

ROD, CONNECTING

CONNECTOR - straight

1шт.

Use 218-457 Adapter and 221-65 Bushing

1шт.

8

D52050

FILTER CARTRIDGE

FILTER - oil, parts list figure 118

1шт.

9

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

D48528

SPACER

- filter

2шт.

11a

221-65

REDUCER,Hex, 1" x 3/4" NPT

- bushing, 1" - 3/4" NPT

1-2шт.

12

D48527

TEE

- special

1шт.

13

D48532

HOSE ASSY.

HOSE - 13-3/16" (335 MM) long

1шт.

14

218-1057

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/8"-18, NPTF

FITTING - 90 degree, male

1шт.

15

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

FITTING - 90 degree, male

1шт.

16

D48523

TUBE

- at shuttle, left hand

1шт.

17

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

CONNECTOR - straight

1шт.

18

221-423

TEE,3/8" NPT

- female, 3/8" NPT

1шт.

19

D48539

FITTING

TUBE - at shuttle, rear

1шт.

20

D48540

VALVE POPPET

VALVE - relief

1шт.

21

D48525

TUBE

- at relief valve

1шт.

22

D48529

ELBOW UNION

ELBOW - special

1шт.

23

D48953

CONNECTOR - special, used before sn 3047235, models without breather hose, see ref 37 figure 120

1шт.

23

D52514

ADAPTER

CONNECTOR - special, used before sn 3047235, models with breather hose, see ref 37 figure 120

1шт.

23a

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- D52514 adapter only

1шт.

23b

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - straight, male, used sn 3047235 and after

1-2шт.

24

D48515

TUBE

- shuttle to radiator, used before tractor sn 3043089, for service use refs 29, 30 and 32

1шт.

25

222-3120

ELBOW - 90 degree, male, used with D48515 tube, Includes: Ref. 26 - 28

1шт.

26

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- elbow

1шт.

27

D51413

RING - backup

1шт.

28

222-3102

SLEEVE - elbow

1шт.

29

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- male, 90 degree, used on trac sn 3043089 and after, and as service replacement for prior models

2шт.

30

R24230

HOSE

- 13" (330 MM) long, used on trac sn 3043089 and after, and as service replacement for prior models

2шт.

31

D51892

TUBE

- radiator to oil filter, used on trac sn 3043089 and after, and as service replacement for prior models

1шт.

32

D51890

TUBE

- radiator to shuttle, used on trac sn 3043089 and after, and as service replacement for prior models

1шт.

33

D34174

CLAMP,5/8", 1/2" Bolt

- tube, used on trac sn 3043089 and after, and as service replacement for prior models

2шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used on tractor S/N 3043089 and after, and as service replacement for prior models Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

35

92-6

LOCK WASHER,3/8"

used on trac S/N 3043089 and after, and as service replacement for prior models 3/8"

2шт.

36

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, used on trac sn 3043089 and after, and as service replacement for prior models

2шт.
