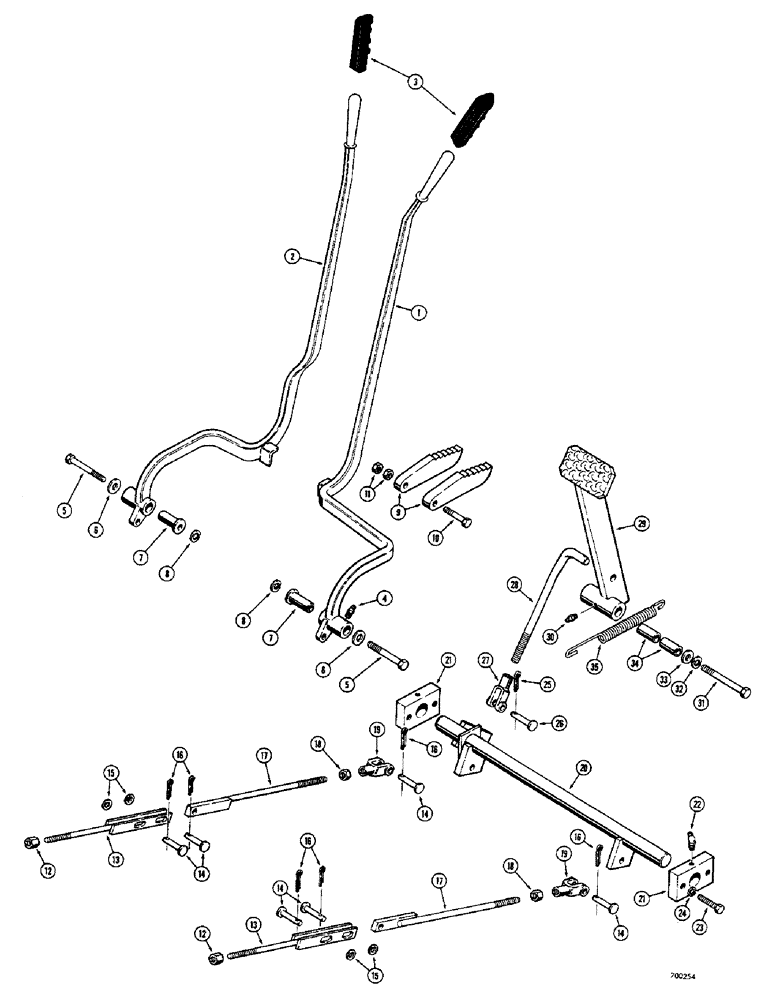

Запчасти Case 350 (114) - TRANSMISSION STEERING AND BRAKE CONTROLS (03) - TRANSMISSION

1

D33558

LEVER - steering, right hand

1шт.

2

D33559

LEVER

- steering, left hand

1шт.

3

31400

CLAMP

GRIP - steering lever

2шт.

4

219-14

LUBE NIPPLE,1/4" NPTF

GREASE - fitting, straight, 1/4" drive type

2шт.

5

13-960

BOLT,Hex, 9/16" - 12 x 3-3/4", Gr 5

- hex, 9/16" - 12 NC x 3-3/4"

2шт.

6

195-37

WASHER,9/16"

- flat, 9/16"

2шт.

7

35504

BUSHING

- steering lever

2шт.

8

92-9

BEARING WASHER,9/16"

2шт.

9

33604

RATCHET

LOCK - parking brake

2шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

12

11471

NUT

- special

2шт.

13

D33561

LINK

- steering, Serial Range: lever-transmission

2шт.

14

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

6шт.

15

195-22

WASHER

- flat, 3/8"

4шт.

16

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

17

D33562

LINK

- brake shaft to steering lever

2шт.

18

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

2шт.

19

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - end, adjustable

2шт.

20

D48480

SHAFT

- brake linkage

1шт.

21

D25269

BLOCK

BEARING - block, brake shaft

2шт.

22

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 65 degree, 1/8" NPT

2шт.

23

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

24

92-8

LOCK WASHER,1/2"

4шт.

25

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

26

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

1шт.

27

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - clevis

1шт.

28

D49172

ROD

- brake

1шт.

29

D48481

PEDAL - brake

1шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE - fitting, straight, 1/8" NPT

1шт.

31

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8" - 11 NC x 4"

1шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

33

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, special

1шт.

34

11031

SPACER

BUSHING - brake special

2шт.

35

R33370

SPRING

- return, brake pedal

1шт.
