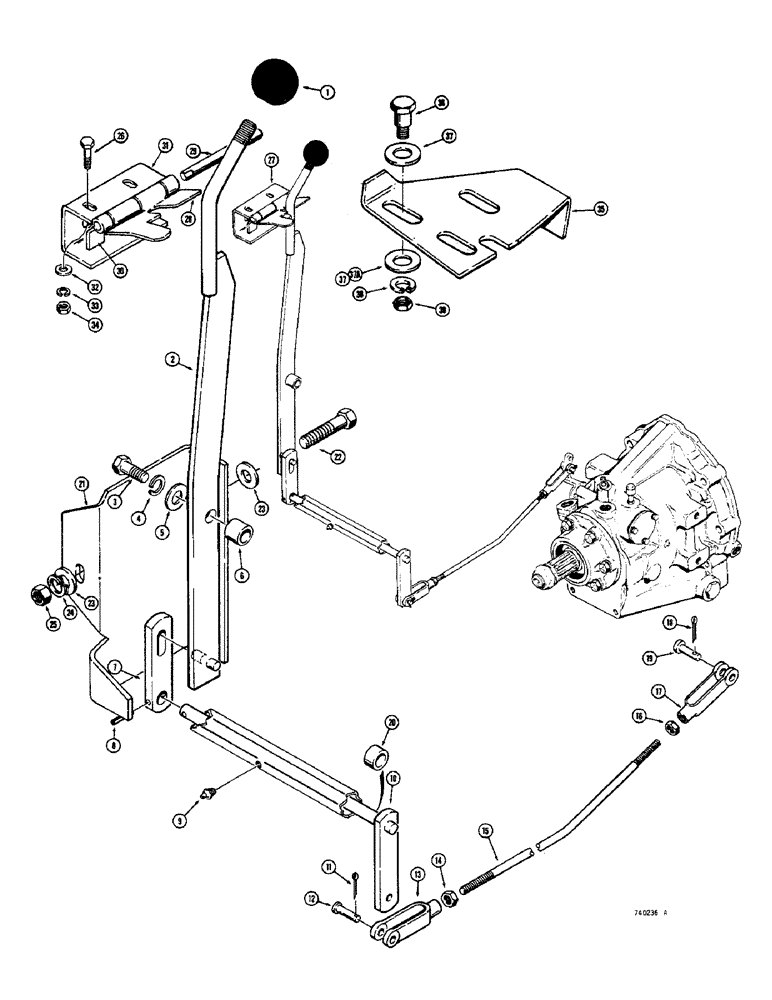

Запчасти Case 350 (112) - SHUTTLE CONTROL (03) - TRANSMISSION

1

D49996

KNOB

- control

1шт.

2

D50247

LEVER

- shuttle control

1шт.

3

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

- hex, 3/8" - 20 NC x 3/4"

1шт.

4

92-6

LOCK WASHER,3/8"

1шт.

5

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

6

T34907

SPACER

- lever

1шт.

7

D48450

LINK

- shuttle control

1шт.

8

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

9

219-4

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT short

1шт.

10

D48474

SHAFT

- shuttle control

1шт.

11

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

12

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

13

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - clevis

1шт.

14

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

1шт.

15

D48473

ROD

- before tractor sn 3065737

1шт.

15

R39037

ROD

- tractor sn 3065737 and after, 1/4" - 28 NF threads, use R42906 rod and R42896 yoke

1шт.

15

R42906

ROD

- 5/16" - 24 NF threads

1шт.

16

25-114

NUT,1/4"-28, G5

- hex, 1/4" - 28 NF, use with all rods except R42906 rod

1шт.

17

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - 1/4" - 28 NF

1шт.

17

R42896

ROD

YOKE - 5/16" - 24 NF threads

1шт.

18

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

19

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis

1шт.

20

D51323

BUSHING

- link

2шт.

21

D52499

GUARD - control, shuttle

1шт.

22

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

23

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

24

92-8

LOCK WASHER,1/2"

1шт.

25

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

26

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Hinged safety lock Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

27

D51911

LOCK ASSY

LOCK - safety, switch, hinged, Includes: Ref. 28 - 31

1шт.

28

D51913

LOCK

LATCH - lock, hinged safety

1шт.

29

D49488

PIN - hinge, safety lock

1шт.

30

D49491

TAB - starting, hinged safety lock

1шт.

31

D49490

BRACKET - lock mounting, hinged safety

1шт.

32

195-18

WASHER,1/4"

- flat, , hinged safety lock 1/4"

2шт.

33

80682

LOCK WASHER,1/4"

WASHER - lock, , hinged safety 1/4"

2шт.

34

25-104

NUT,1/4"-20, G5

Hinged safety lock 1/4"-20, G5

2шт.

35

R32530

PLATE - lock, one piece safety

1шт.

36

A27277

STEP BOLT

BOLT - shoulder, 3/8" - 24 NF, one piece safety lock

3шт.

37

195-33

WASHER,1/2"

- flat, , no longer used, not required, one piece safety lock 1/2"

6шт.

37a

R24718

WASHER

- flat, heat treated, one piece safety lock

3шт.

38

92-6

LOCK WASHER,3/8"

one piece safety lock 3/8"

3шт.

39

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF, one piece safety lock

3шт.
