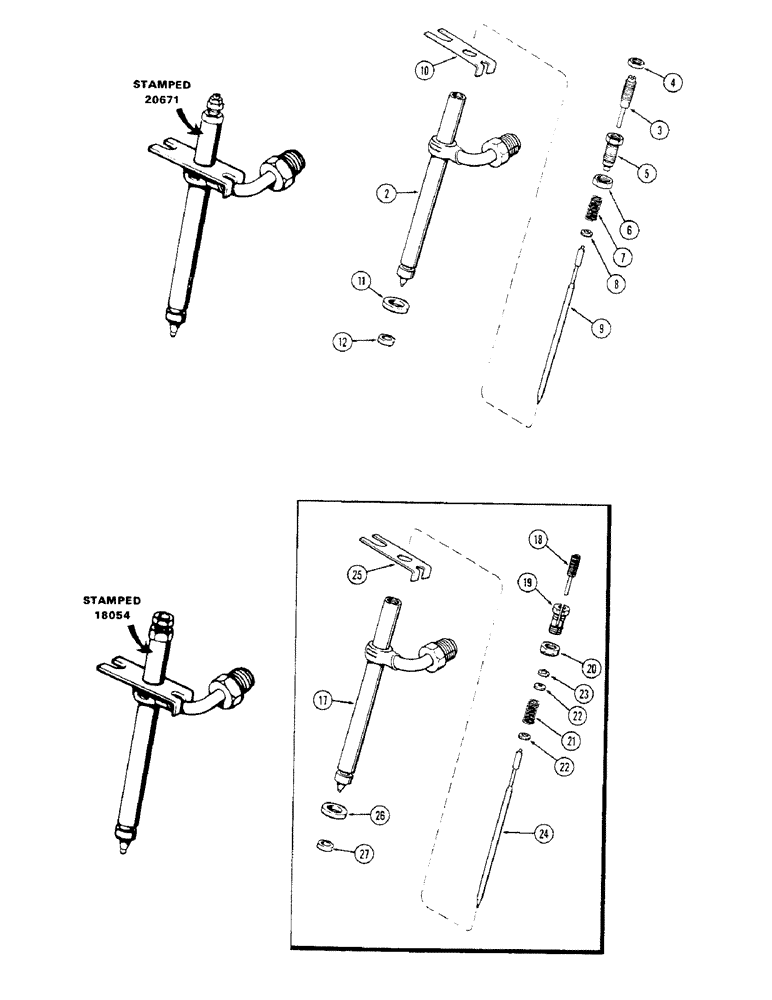

Запчасти Case 350 (068) - INJECTOR NOZZLES, USED ENGINE SERIAL NO. 2726393 AND AFTER (02) - FUEL SYSTEM

1

A140829

NOZZLE INJECTION

NOZZLE ASSEMBLY - injector (Replaces A51234) (No. 20671 stamped on body) (White color code), Includes: Ref. 2 - 12

4шт.

Whenever a nozzle is removed from the head washer (A41403) and seal (A41402) must be replaced before the nozzle is installed back into the head.

1шт.

A140829R

REMAN-INJECT NOZZLE

350 USED ENGINE SERIAL NO. 2726393 AND AFTER

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A43733

SPRING

- nozzle pressure adjusting (9/16" free length with red stain)

1шт.

8

A44369

SEAT

- pressure adjusting spring

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A43506

PLATE ASSY.

PLATE - nozzle holder

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

16

A37836

NOZZLE

ASSEMBLY - injector (No. 18054 stamped on body) (Without color code) (Order A140829), used prior to engine sn 2726393, Includes: Ref. 17 - 27

4шт.

Whenever a nozzle is removed from the head washer (A41403) and seal (A41402) must be replaced before the nozzle is installed back into the head.

1шт.

A140829R

REMAN-INJECT NOZZLE

350 USED PRIOR TO ENGINE SN. 2726393 AND AFTER, Reman For New P/N A37836

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - nozzle, used prior to engine sn 2726393

1шт.

18

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting, used prior to engine sn 2726393

1шт.

19

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting, used prior to engine sn 2726393

1шт.

20

A42424

LOCK NUT

- lock, adjusting screws, used prior to engine sn 2726393

1шт.

21

A41444

VALVE SPRING

SPRING - nozzle pressure adjusting (17/32" free length, plain), used prior to engine sn 2726393

1шт.

22

A44369

SEAT

- spring (Replaces A41401), used prior to engine sn 2726393

1шт.

23

A41407

WASHER

- upper seat locating, used prior to engine sn 2726393

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE - nozzle, used prior to engine sn 2726393

1шт.

25

A43506

PLATE ASSY.

PLATE - nozzle locating (Replaces A41405), used prior to engine sn 2726393

1шт.

26

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body, used prior to engine sn 2726393

1шт.

27

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, used prior to engine sn 2726393

1шт.
