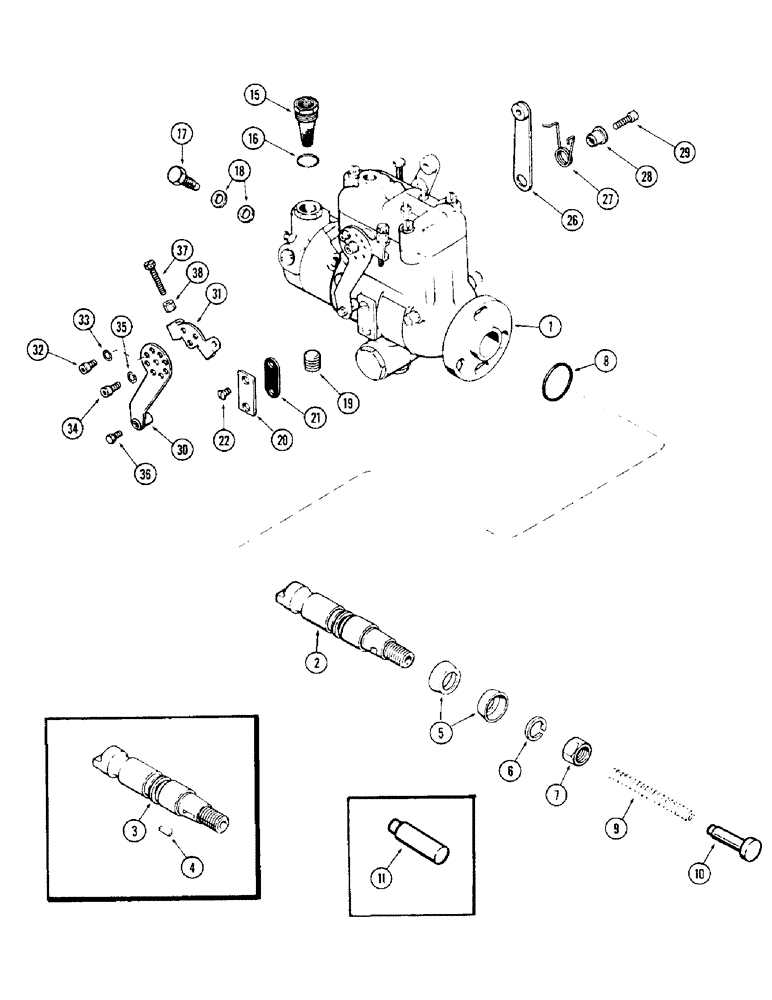

Запчасти Case 350 (066) - INJECTION PUMP (02) - FUEL SYSTEM

1

A39160

PUMP ASSEMBLY (2000 RPM) (Replaces A36437), Includes: Ref. 2 - 38

1шт.

2

A44710

SHAFT

ASSEMBLY - drive, with pin

1шт.

3

G47113

SHAFT

- drive (Requires key) (Order A44710)

1шт.

4

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

(Used with G47113 shaft only) #6, 5/32" x 5/8"

1шт.

5

R14711

SEAL

- drive shaft

2шт.

6

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

7

25-159

JAM NUT,Jam, 9/16"-18, G5

- jam, 9/16" NF

1шт.

8

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube

1шт.

9

G48502

SPRING

- thrust, drive shaft

1шт.

10

A44653

PLUNGER

- thrust spring, with button head

1шт.

11

G47128

PLUNGER

- thrust spring, without button head (Order plunger A44653)

1шт.

15

CAS73671

FILTER, ELEMENT

FILTER ASSEMBLY

1шт.

16

73666

AIR CLEANER

- filter

1шт.

17

73613

SCREW

- connector, injection tube

4шт.

18

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw

8шт.

19

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

20

G73452

COVER - timing window

2шт.

21

NLS

NO LONGER SERVICED

- cover

2шт.

22

NLS

NO LONGER SERVICED

- timing cover

4шт.

26

G45338

ARM

- throttle

1шт.

27

G48505

SPRING

- throttle arm

1шт.

28

G49621

RETAINER

- spring, throttle arm

1шт.

29

165-124

HEX SOC SCREW,Prev Torque, #10 - 32 x 3/4"

SCREW - throttle arm

1шт.

30

G45337

ARM

- shut-off

1шт.

31

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

32

165-1

SCREW,#8 x 1/4"

- position, shut-off arm

1шт.

33

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Position screw Int Tooth, #8

1шт.

34

165-30

HEX SOC SCREW,#10 - 32 x 3/8"

SCREW - retaining, shut-off arm

1шт.

35

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , Retaining screw Int Tooth, #10

1шт.

36

163-7

SCREW,Sl Hex, #8 - 32 x 3/8"

- pivot

1шт.

37

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adjusting, high idle

1шт.

38

86837534

LOCK WASHER

- high idle screw

1шт.
