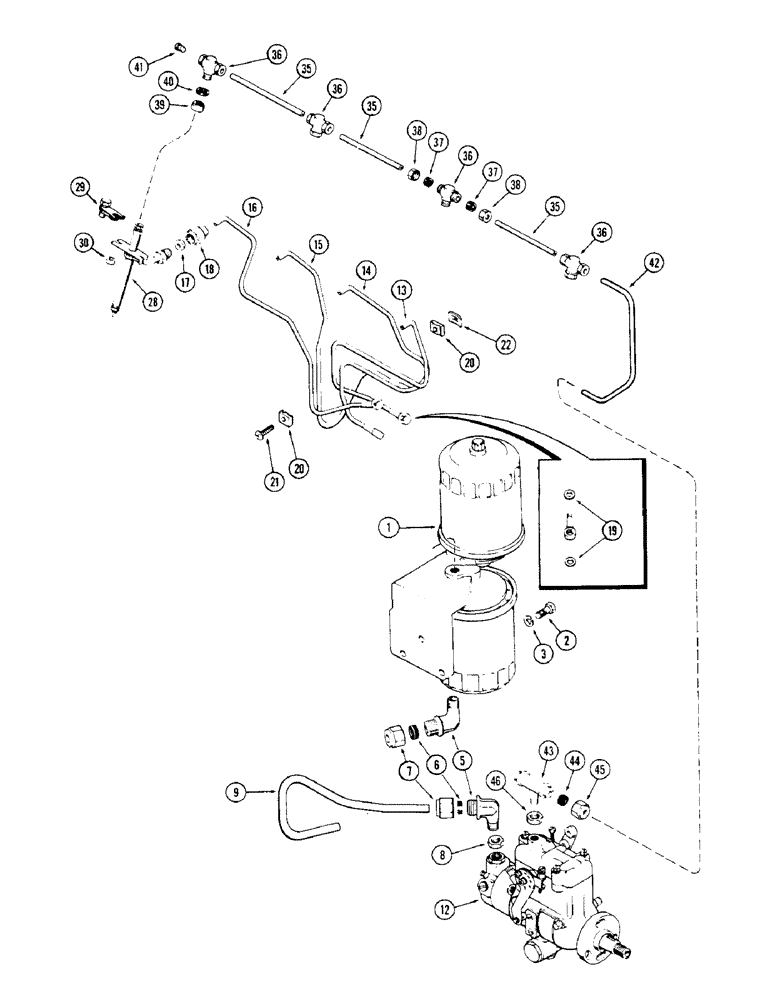

Запчасти Case 350 (060) - FUEL INJECTION AND FILTER SYSTEM, 188 DIESEL ENGINE (02) - FUEL SYSTEM

1

REF

INSTRUCTION

FILTER ASSEMBLY - fuel (See figure 62)

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Filter mounting Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

3

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

3шт.

5

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - filter outlet and pump inlet, Includes: Ref. 6 and 7

2шт.

6

222-104

SLEEVE,3/8" Tube

(For ) 3/8" Tube

1шт.

7

222-114

NUT,5/8"-24

NUT (For 3/8" tube)

1шт.

8

A38161

LOCK NUT

- sealing (1/4" PT hex) (At pump inlet elbow)

1шт.

9

A51784

TUBE

-, Serial Range: filter-pump

1шт.

12

REF

INSTRUCTION

PUMP ASSEMBLY - injection (See figure 66)

1шт.

13

A41391

TUBE

ASSEMBLY - pump to no. 1 cylinder, Includes: Ref. 17 - 19

1шт.

14

A41392

TUBE

ASSEMBLY - pump to no. 2 cylinder, Includes: Ref. 17 - 19

1шт.

15

A41393

TUBE

ASSEMBLY - pump to no. 3 cylinder, Includes: Ref. 17 - 19

1шт.

16

A41394

TUBE

ASSEMBLY - pump to no. 4 cylinder

1шт.

A41394 not illustrated properly the part pictured is A35061 see 310G crawler figure 40 for illustration of all tubes if customer requires tube which looks like picture

1шт.

17

A37850

PIPE FITTING

SLEEVE -, Serial Range: tube-injector

1шт.

18

A37851

NUT

-, Serial Range: tube-injector

1шт.

19

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - tube (Banjo, Serial Range: end-pump)

2шт.

20

A58709

BRACKET

CLAMP - injection tubes

4шт.

21

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp (#10-24 x 1" round head)

2шт.

22

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - clamp screw (#10 Tinnerman)

2шт.

28

REF

INSTRUCTION

NOZZLE ASSEMBLY - injector (See figure 68)

4шт.

29

A37837

CLAMP

- nozzle hold down

4шт.

30

A37839

SPACER

- nozzle clamp

4шт.

35

A38644

TUBE

- leak off

3шт.

36

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - leak off lines

4шт.

37

222-102

SLEEVE,1/4" Tube

8шт.

38

87017024

TUBE NUT,1/2"-24

NUT (For 1/4" tube)

8шт.

39

A58961

NUT

-, Serial Range: nozzle-tee

4шт.

40

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

-, Serial Range: nozzle-tee

4шт.

41

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - leak off tee

1шт.

42

A142906

TUBE

- leak off (To injection pump) (Replaces A51658 and A38158)

1шт.

43

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSEMBLY - injection pump, Includes: Ref. 44 and 45

1шт.

44

222-102

SLEEVE,1/4" Tube

2шт.

45

87017024

TUBE NUT,1/2"-24

NUT (For 1/4" tube)

2шт.

46

A38160

LOCK NUT

- sealing (1/8" PT) (Pump tee)

1шт.
