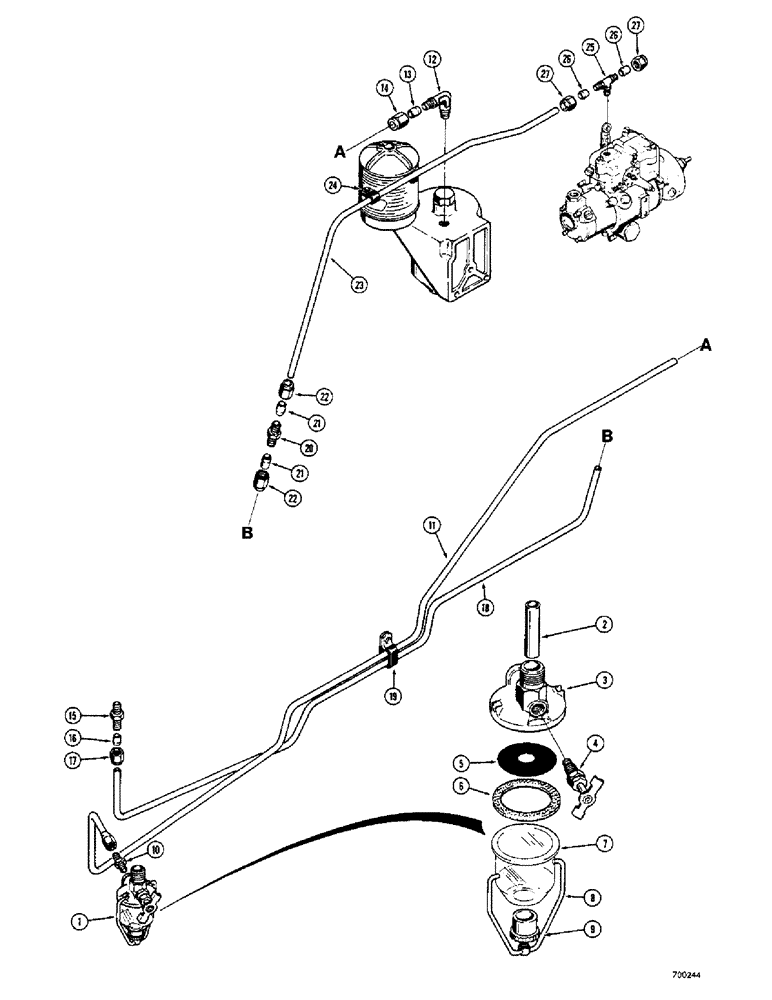

Запчасти Case 350 (058) - FUEL LINES (02) - FUEL SYSTEM

1

33487

STRAINER ELEMENT

STRAINER - fuel, Includes: Ref. 2 - 9

1шт.

2

NLS

NO LONGER SERVICED

TUBE - inlet

1шт.

3

41932

COVER

- strainer

1шт.

4

A11200

COCK

VALVE - shutoff

1шт.

5

A11211

FILTER SCREEN

SCREEN - strainer

1шт.

6

A11208

GASKET

- bowl

1шт.

7

86982913

BOWL

- strainer

1шт.

8

A11212

BAIL

- bowl

1шт.

9

A11210

ADJUSTER

NUT - cup, ball

1шт.

10

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight

1шт.

11

D48497

LINE

TUBE - fuel line, Serial Range: tank-filter

1шт.

12

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 90 degree, Includes: Ref. 13 and 14

1шт.

13

222-103

SLEEVE,5/16" Tube

- Elbow 5/16" Tube

1шт.

14

222-113

TUBE NUT,9/16"-24

NUT - elbow

1шт.

15

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR - straight, Includes: Ref. 16 and 17

1шт.

16

222-102

SLEEVE,1/4" Tube

Connector 1/4" Tube

1шт.

17

87017024

TUBE NUT,1/2"-24

NUT - connector

1шт.

18

D48496

TUBE - return, fuel, rear section

1шт.

19

D48438

CLAMP

- tubes

1шт.

20

222-3

FITTING,1/2"-24 Flex Tube

CONNECTOR - straight, Includes: Ref. 21 and 22

1шт.

21

222-102

SLEEVE,1/4" Tube

Connector 1/4" Tube

2шт.

22

87017024

TUBE NUT,1/2"-24

NUT - connector

2шт.

23

D48468

LINE

TUBE - return, fuel, front section

1шт.

24

49851

SHIELD

- tube

1шт.

25

REF

INSTRUCTION

TEE - male, Includes: Ref. 26 and 27

1шт.

26

REF

INSTRUCTION

SLEEVE - tee

2шт.

27

REF

INSTRUCTION

NUT - tee

2шт.
