(418[1]) - SPECIAL CRANKCASE GUARD MODELS WITH FRONT COUNTERWEIGHT WITHOUT BACKHOE

Запчасти Case 350 (418[1]) - SPECIAL CRANKCASE GUARD MODELS WITH FRONT COUNTERWEIGHT WITHOUT BACKHOE (01) - ENGINE

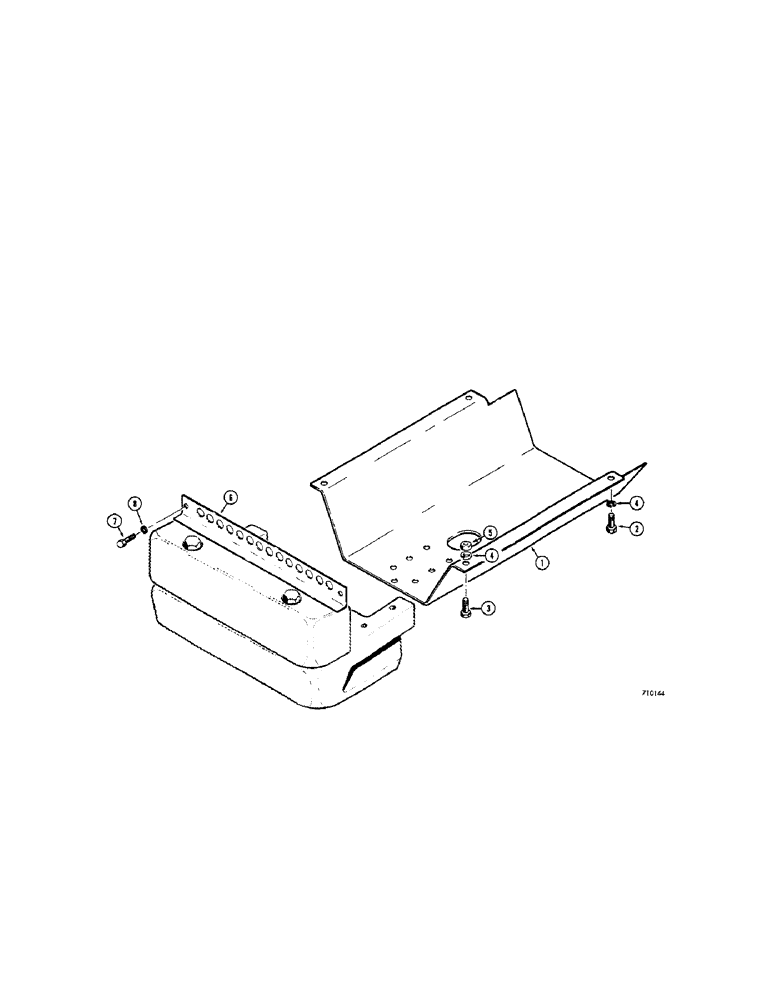

Схема запчастей Case 350 - (418[1]) - SPECIAL CRANKCASE GUARD MODELS WITH FRONT COUNTERWEIGHT WITHOUT BACKHOE (01) - ENGINE
2
7
1
3
4
8
4
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D34006

GUARD - crankcase

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

3

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2" - 13 NC x 2-1/2"

2шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

6

D51326

PLATE

- cover, front

1шт.

7

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

Выбрано товаров: 8
