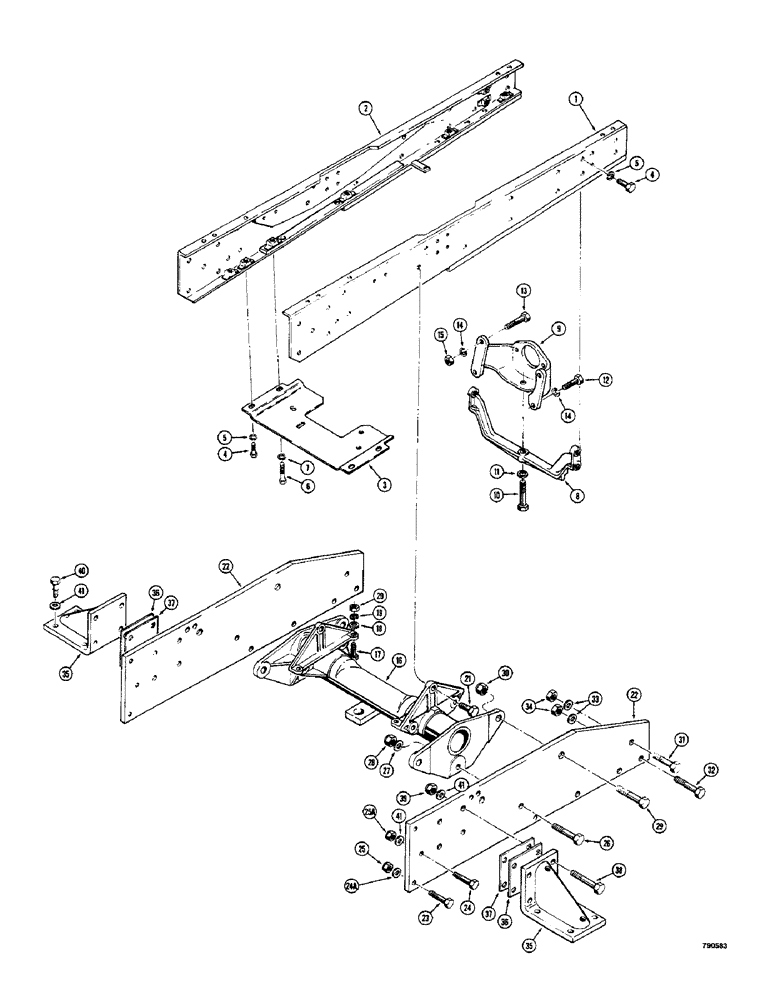

Запчасти Case 350 (408) - ENGINE FRAME, RELATED PARTS AND TORQUE TUBE, TRACTOR SN 3050472 AND AFTER (01) - ENGINE

1

R29812

FRAME - engine, RH

1шт.

2

R29813

FRAME - engine, LH

1шт.

3

R29703

GUARD - shuttle, used before tractor sn 3065737

1шт.

3

R39038

GUARD - shuttle, used tractor sn 3065737 and after

1шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

5

92-8

LOCK WASHER,1/2"

6шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4"

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

D48494

MOUNTING PARTS

SUPPORT - engine

1шт.

9

D36857

BRACKET

MOUNT - engine

1шт.

10

26-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

- hex, 5/8" - 11 NC x 3"

1шт.

11

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special

1шт.

12

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

13

G49039

BOLT

- special, 5/8" - 18 NF x 2-1/2", if used

2шт.

13

R33936

BOLT

- special, 5/8" - 11 NC x 3", if used

2шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

15

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF

2шт.

15

25-1010

NUT,5/8"-11, G5

2шт.

16

R29788

TUBE - torque standard, 48" (1219 MM) gauge

1шт.

16

R29789

TUBE - torque, 60" (1524 MM) gauge

1шт.

16

R29790

TUBE - torque, 72" (1829 MM) gauge

1шт.

17

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

18

33496

BRAKE LINING

SHIM - .010" (.254 MM) thick

1шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

21

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

22

D45905

PLATE - side

2шт.

23

D29721

BOLT

- special

4шт.

24

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- hex, 3/4" - 16 NF x 2-1/2"

2шт.

24a

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4", heat treated

6шт.

25

230-46112

LOCK NUT,3/4"-16, GA

NUT - hex, self lock, 3/4" - 16 NF

4шт.

25a

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex, lock, 3/4" - 10 NC

2шт.

26

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

27

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

2шт.

28

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self lock, 3/4" - 10 NC

2шт.

29

R36816

BOLT

BOLT - special

4шт.

30

131-1177

LOCK NUT,1"-8, GC

NUT - hex, self lock, 1" - 14 NC

4шт.

31

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

32

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

33

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4"

4шт.

34

25-1012

NUT,3/4"-10, G5

4шт.

35

D29059

BRACKET - mounting, track frame, see figure 150 for track frame and rollers

2шт.

36

D29758

SHIM,.1875" Thk

(4.76 mm) .1875" Thk

1шт.

37

D29759

SHIM,.0747" Thk

(1.90 mm) .0747" Thk

1шт.

38

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

8шт.

39

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, lock, 3/4" - 10 NC

8шт.

40

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

41

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4"

16шт.
