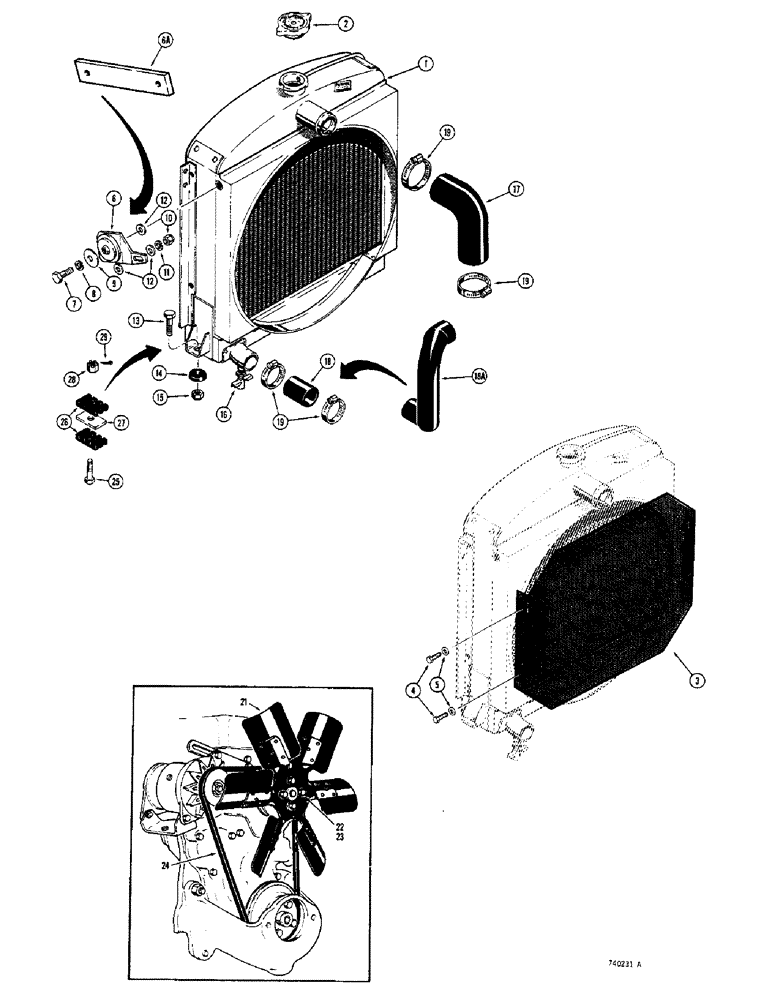

Запчасти Case 350 (050) - RADIATOR, FAN AND FAN BELT (01) - ENGINE

1

R34163

RADIATOR

ASSEMBLY - diesel, Includes: Ref. 2

1шт.

2

D25826

CAP

- radiator

1шт.

3

D52500

SCREEN

- antisandblast, radiator, standard for loader models, optional for all other models

1шт.

4

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

4шт.

5

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

6

NSS

NOT SOLD SEPARAT

BRACKET - radiator mounting, use R26330 mounting strap

2шт.

6a

R26330

STRAP

- radiator mounting

2шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

D22988

WASHER

- snubber, if used

2шт.

10

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self lock, 3/8" - 16 NC

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special, 3/8"

4шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

D48442 washer only Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

14

D48442

WASHER

- vibration, rubber, service with (2) R32823 washers, R32822 bolt, R32824 spacer, 25-128 nut and 132-27 pin

2шт.

15

131-354

LOCK NUT,1/2"-13, GA

NUT - hex, self lock, 1/2" - 13 NC

2шт.

16

217-92

COCK

DRAINCOCK

1шт.

17

R26205

RADIATOR HOSE,2.00" ID x 5.50", SAE 20R4 Class SC

HOSE - upper, 9-29/32" (252 MM) long, measured at center line x 2" (51 MM) ID

1шт.

18

D50210

HOSE - lower, 2-22/32" (68 MM) x 1-3/4" (45 MM) ID

1шт.

18

G47040

RADIATOR HOSE,1.75" ID x 3.88"

Lower 1.75" ID x 3.88"

1шт.

18

R31196

RADIATOR HOSE,1.75" ID x 3.00", SAE 20R2 Class R

HOSE ASSY - Lower 1.75" ID x 3.00", SAE 20R2 Class R

1шт.

18a

R36373

HOSE

- lower, tractor sn 3063113 and after

1шт.

19

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

3шт.

21

R39167

FAN

- pusher, standard on loader models only, not shown

1шт.

R39167 Pusher Fan is no longer available

1шт.

21

D52583

FAN

- suction, standard on all models except loader models

1шт.

22

26-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

- hex, 5/16"-18 NC x 1-1/2", grade 8

4шт.

23

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

4шт.

24

R32782

BELT,0.50" W x 47.56" L

Fan 0.50" W x 47.56" L

1шт.

25

R32822

BOLT

BOLT - special

2шт.

26

R32823

MOUNTING PARTS

WASHER - vibration

4шт.

27

R32824

SPACER

- washer

2шт.

28

25-128

NUT

- hex, slotted, 1/2" - 13 NC

2шт.

29

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

2шт.
