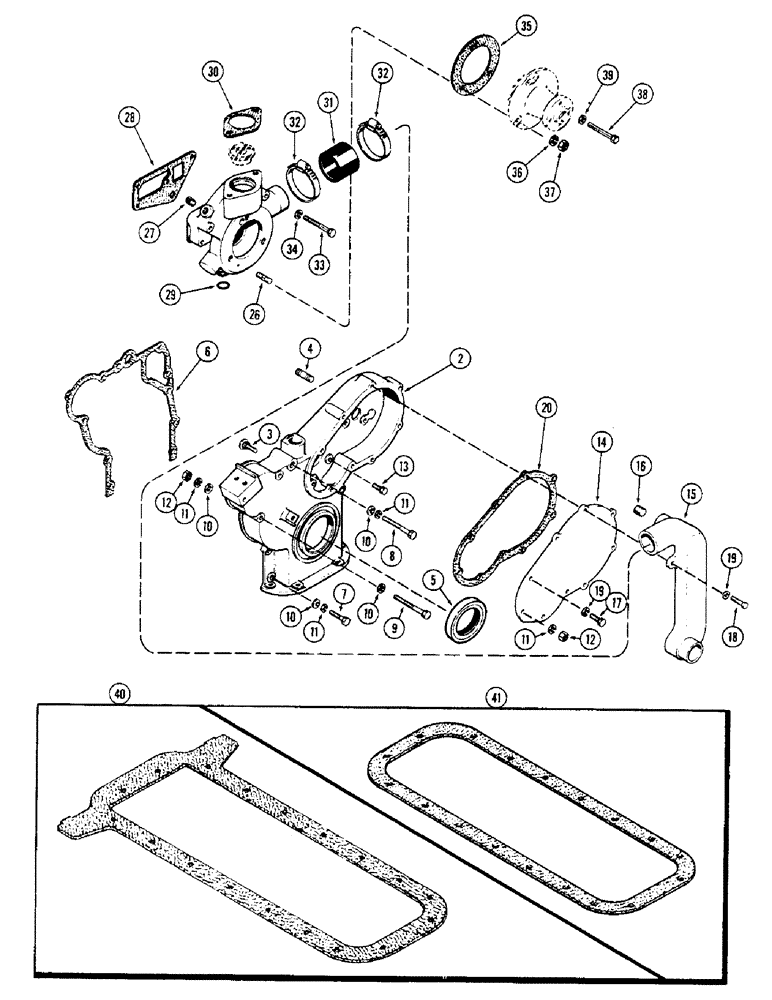

Запчасти Case 350 (048) - A51890 CONVERSION KIT, 188 DIESEL ENGINE, TO CONVERT 1 PIECE COVER TO 2 PIECE COVER (01) - ENGINE

A51890

DUST VALVE

CONVERSION KIT - timing gear cover, Includes: Ref. 2 - 41

1шт.

2

A51981

COVER

ASSEMBLY - timing gears (Replaces A51734), Includes: Ref. 3 - 5

1шт.

3

A51649

STUD

- cover

2шт.

4

G102128

BOLT

- injection pump mounting (3/8" NC x 1-7/16")

3шт.

5

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft, front (2 x 3 x 1/2")

1шт.

6

A51529

GASKET

-, Serial Range: cover-block

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" NC hex

2шт.

9

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" NC hex

1шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" NC hex

3шт.

10

95-6

WASHER,3/8"

- 7/16 x 1 x 1/16"

1шт.

11

92-6

LOCK WASHER,3/8"

5шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

5шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cover (inside) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

14

A51908

COVER

COVER - timing gears

1шт.

15

A51907

TUBE

- water passage

1шт.

16

221-843

PLUG,Hex Soc, 3/8"-18

- water passage tube (3/8" PT, socket head)

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

18

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex

2шт.

19

A50820

WASHER

- 3/8 x 3/4 x 1/8"

9шт.

20

A39925

GASKET

- timing gear cover

1шт.

25

A51888

BODY

ASSEMBLY - water pump

1шт.

26

A29433

STUD

- pump (3/8" NC x 1")

2шт.

27

222-843

PLUG - 3/8" PT, socket head

1шт.

28

A38084

GASKET,1.27mm Thk

- pump body to cylinder head

1шт.

29

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- body to cover (3/4 x 1 x 1/8")

1шт.

30

G46907

GASKET

- thermostat housing

1шт.

31

A7249

HOSE

- body to cover (2" ID x 1-3/4")

1шт.

32

204-260

CLAMP - hose, Serial Range: (1-3/16"-2-3/4")

2шт.

33

13-6344

BOLT - 3/8 x 2-3/4" NC hex

2шт.

33

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

34

92-6

LOCK WASHER,3/8"

3шт.

35

A38083

GASKET

- water, Serial Range: pump-body

1шт.

36

92-6

LOCK WASHER,3/8"

2шт.

37

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

38

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" NC hex

1шт.

39

A7085

WASHER

- 3/8 x 9/16 x 1/32" copper

1шт.

40

NSS

NOT SOLD SEPARAT

GASKET (Used with cast iron oil pan) (Not used this application)

1шт.

41

NSS

NOT SOLD SEPARAT

GASKET (Used with stamped oil pan) (Order A44758)

1шт.
