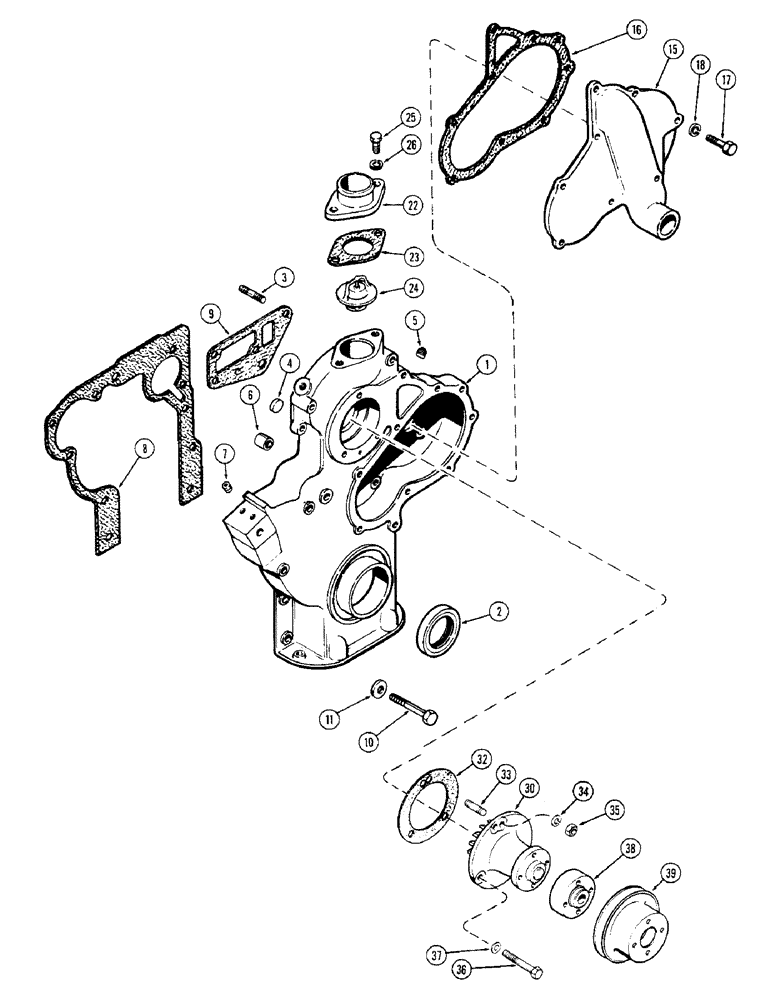

Запчасти Case 350 (046) - TIMING GEAR COVER, 188 DIESEL ENGINE, USED PRIOR TO ENGINE S/N 2728315 (01) - ENGINE

A39846

COVER ASSEMBLY - timing gears (Replaces A38955) (Order conversion kit A51890) (See figure 48), Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - timing gears

1шт.

2

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft, front (2 x 3 x 1/2")

1шт.

3

G102128

BOLT

- injection pump mounting (3/8" NC x 1-7/16")

3шт.

4

A58620

PLUG,Cup, 3/4", Stainless

- water cooler hole (3/4" cup type)

1шт.

5

221-1022

PLUG,Sq Soc, 1/2"-14 NPTF

- heater holes (3/8" PT, socket head)

2шт.

6

A29442

RING

DOWEL - cover to block (9/16 x 3/8 x 5/8")

2шт.

7

178-821

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - cover plug (3/8" NC socket head)

2шт.

8

A38228

GASKET

-, Serial Range: cover-block

1шт.

9

A38084

GASKET,1.27mm Thk

-, Serial Range: cover-head

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover (3/8 x 1-1/2" NC hex)

3шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Cover Hex, 3/8"-16 x 2", G5

1шт.

10

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- cover (3/8 x 2-3/4" NC hex)

3шт.

10

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(3/8 x 3" NC hex)

1шт.

10

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- cover (3/8 x 3-1/4" NC hex)

3шт.

11

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

15

G2077

COVER ASSY

COVER - drive gear

1шт.

16

G46859

GASKET

- gear cover

1шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Cover Hex, 3/8"-16 x 2", G5

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

18

92-6

LOCK WASHER,3/8"

9шт.

22

G2144

FITTING

CONNECTION - water outlet

1шт.

23

G46907

GASKET

- water outlet connection

1шт.

24

A57641

THERMOSTAT

- 180 degrees

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Connection Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

30

A39074

PUMP

ASSEMBLY - water (Replaces A37758) (Order A146584), Includes: Ref. 32

1шт.

32

A38083

GASKET

- pump to cover, water

1шт.

33

A29433

STUD

- 3/8" NC x 1, water pump

2шт.

34

92-6

LOCK WASHER,3/8"

water pump 3/8"

25шт.

35

25-106

NUT,3/8"-16, G5

- 3/8" NC hex, water pump

2шт.

36

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" NC hex, water pump

1шт.

37

A22317

WASHER

- 1/8 x 3/8 x 1/16" copper, water pump

1шт.

38

A37191

BUSHING

SPACER - fan hub, water pump

1шт.

39

G11339

PULLEY

- drive, water pump

1шт.
