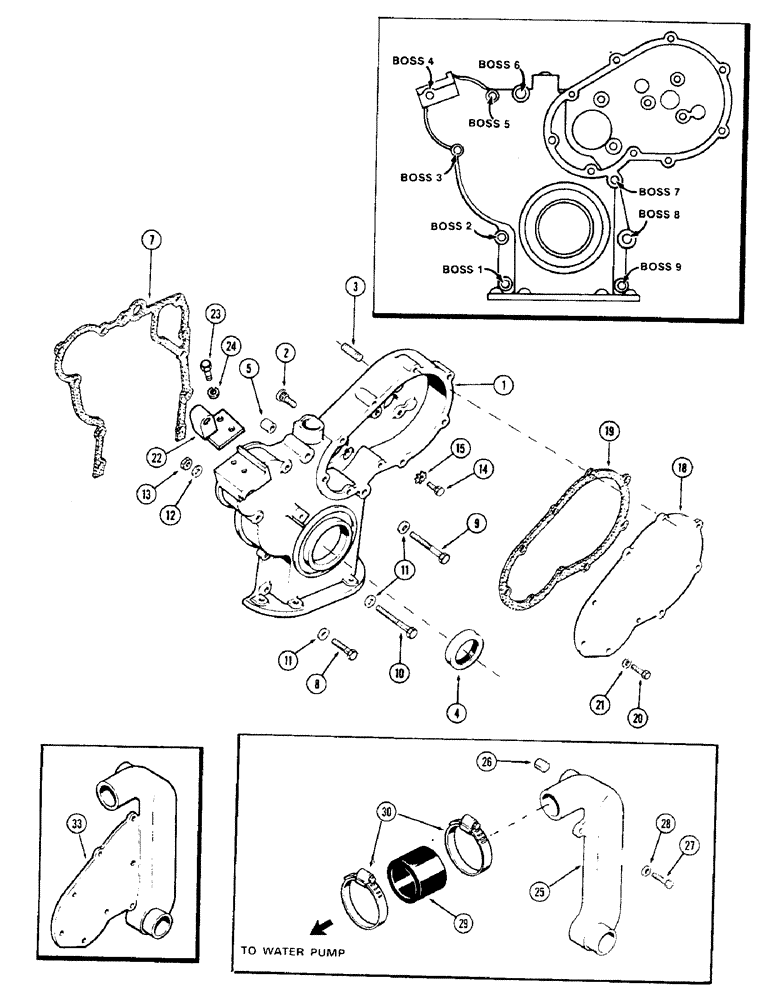

Запчасти Case 350 (042) - TIMING GEAR COVER, DIESEL ENGINE, USED ENGINE SERIAL NO. 2728315 AND AFTER (01) - ENGINE

1

A51981

COVER

ASSEMBLY - timing gears (Replaces A51734), Includes: Ref. 2 - 4

1шт.

2

A51649

STUD

- cover

2шт.

3

G102128

BOLT

- pump mounting (3/8" NC x 1-7/16")

3шт.

4

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft, front (2 x 3 x 1/2")

1шт.

5

A29442

RING

DOWEL - cover locating (9/16 x 3/8 x 5/8")

2шт.

7

A51529

GASKET

-, Serial Range: cover-block

1шт.

8

136-620

BOLT - cover (3/8 x 1-1/4" NC hex) (Boss #1, #2 and #9)

3шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover (3/8 x 1-1/2" NC hex) (Boss #8)

1шт.

9

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- cover (3/8 x 2-3/4" NC hex) (Boss #7)

1шт.

9

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- cover (3/8 x 3" NC hex) (Boss #6)

1шт.

10

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- cover (3/8 x 3-1/4" NC hex) (Boss #3, #4 and #5)

3шт.

11

A50820

WASHER

- 3/8 x 3/4 x 1/8"

9шт.

11

95-6

WASHER,3/8"

- x 1 x 1/16" 3/8"

1шт.

12

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16"

3шт.

13

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

3шт.

14

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cover (inside) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

15

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

18

A51908

COVER

COVER - injection pump gears

1шт.

19

A39925

GASKET

- gear cover

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

7шт.

21

A50820

WASHER

- 3/8 x 3/4 x 1/8"

7шт.

22

R30381

BRACKET

- alternator mounting

1шт.

23

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Bracket to cover Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

A51907

TUBE

- water (Used with A51908 cover), used prior to engine s/n 2827809

1шт.

26

221-843

PLUG,Hex Soc, 3/8"-18

- water tube (3/8" PT socket head), used prior to engine s/n 2827809

1шт.

27

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- tube (3/8 x 1-1/2" NC hex), used prior to engine s/n 2827809

2шт.

28

A50820

WASHER

- 3/8 x 3/4 x 1/8", used prior to engine s/n 2827809

2шт.

29

A7249

HOSE

- tube to water pump (2" ID x 2"), used prior to engine s/n 2827809

1шт.

30

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

used prior to engine S/N 2827809 #36, 1.81/2.75 Type F Worm

2шт.

33

A51765

CLIP

COVER - injection pump gears, with water passage tube (Changed from cast iron to aluminum at engine serial no. 2731067) (Replaces A39911), used prior to engine s/n 2827809

1шт.
