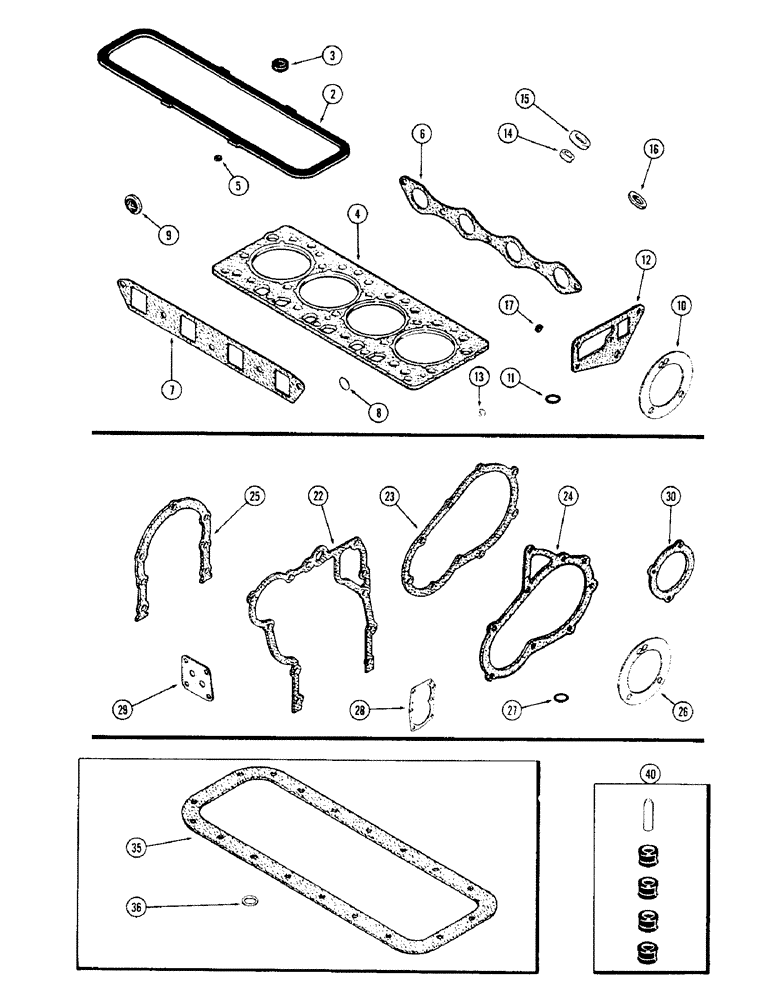

Запчасти Case 350 (040) - ENGINE GASKET KITS, 188 DIESEL ENGINE, VALVE GRIND KIT (01) - ENGINE

A143000

GASKET

KIT - valve gring (Replaces A43069, A42001 and A43193), Includes: Ref. 2 - 17

1шт.

For complete engine overhaul order 1-A143000, 1-A43198 and 1-A44758

1шт.

2

A43030

GASKET,3.05mm Thk

- valve cover

1шт.

3

A142098

GROMMET

- valve cover studs (Rubber)

2шт.

4

A148745

CYLINDER HEAD GASKET

- cylinder head

1шт.

5

G46851

SEAL

- valve stem (Rubber) (See ref. 40)

8шт.

6

G46872

MANIFOLD GASKET

- intake manifold

1шт.

7

G46871

GASKET

1шт.

8

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- manifold studs (3/8 x 9/16 x 3/32") (See figure 10 for application)

3шт.

9

A50694

DISC

WASHER - sealing, intake manifold (See figure 10 for application)

3шт.

10

A38083

GASKET

- water pump

1шт.

11

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- water pump body (3/4 x 1 x 1/8")

1шт.

12

A38084

GASKET,1.27mm Thk

- timing gear cover, upper

1шт.

13

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injection, Serial Range: lines-pump

8шт.

14

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop (Used with pencil injectors)

4шт.

15

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- sealing (Used with pencil injectors)

4шт.

16

G49068

GASKET

- injector nozzle seat (Not used this application)

4шт.

17

222-101

SLEEVE,3/16" Tube

- for (Not used this application) 3/16" Tube

4шт.

17

111-103

SLEEVE - for 5/16" tube (Not used this application)

4шт.

A43198

GASKET

KIT - cylinder block (Replaces A41426), Includes: Ref. 22 - 30

1шт.

For complete engine overhaul order 1-A143000, 1-A43198 and 1-A44758

1шт.

22

A51529

GASKET

- timing gear cover, lower, cylinder block kit

1шт.

23

A39925

GASKET

- injection pump drive gear cover (See figure 42), cylinder block kit

1шт.

24

A46859

GASKET - injection pump drive gear cover (See figure 46), cylinder block kit

1шт.

25

A39188

GASKET

- rear oil seal retainer, cylinder block kit

1шт.

26

A38083

GASKET

- water pump, cylinder block kit

1шт.

27

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- water pump body (3/4 x 1 x 1/8"), cylinder block kit

1шт.

28

G46852

GASKET

- oil pump cover, cylinder block kit

1шт.

29

G46854

GASKET

- oil filter bracket (Not used this application), cylinder block kit

1шт.

30

A30042

GASKET

- power steering pump (Not used this application), cylinder block kit

1шт.

A44758

GASKET

KIT - oil pan (Replaces A40712), Includes: Ref. 35 and 36

1шт.

For complete engine overhaul order 1-A143000, 1-A43198 and 1-A44758

1шт.

35

NSS

NOT SOLD SEPARAT

GASKET - oil pan, kit

1шт.

36

A58608

GASKET

- drain plug, oil pan kit

1шт.

40

M20611

SEAL KIT

SEAL KIT - valve (Includes 4 seals and installation sleeve), oil pan kit

1шт.
