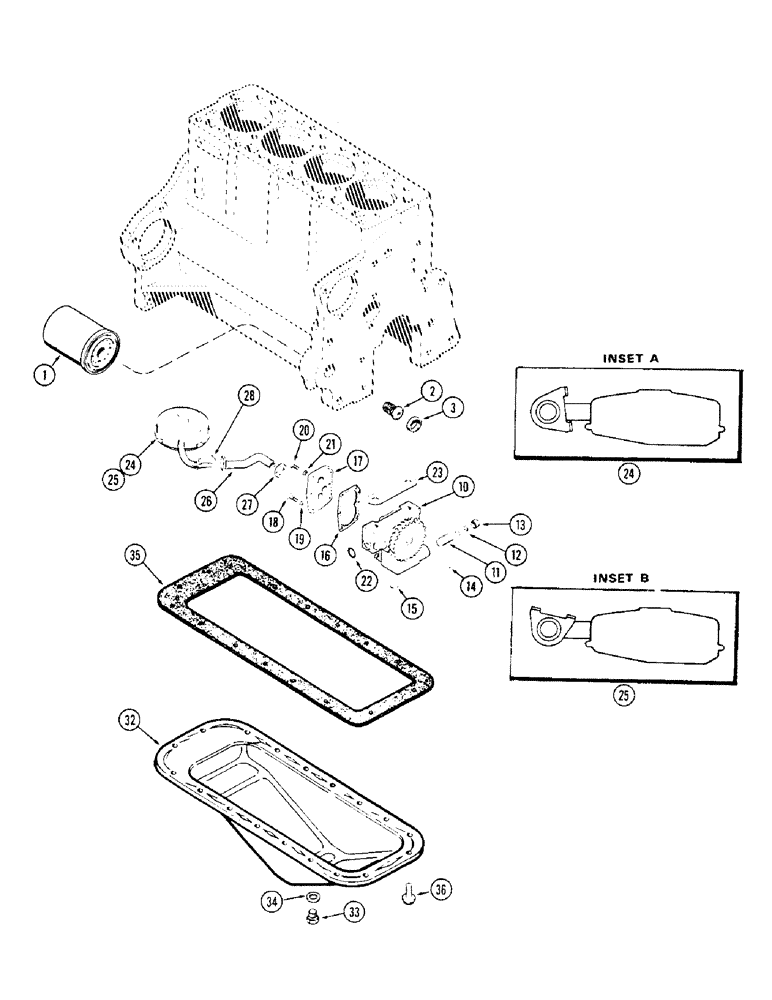

Запчасти Case 350 (038) - OIL FILTER, 188 DIESEL ENGINE (01) - ENGINE

1

A146696

ENGINE OIL FILTER

FILTER - engine oil (Replaces A37189)

1шт.

2

A153552

ADAPTER

ADAPTER -, Serial Range: filter-block

1шт.

3

41-1016

PLUG,Cup, 1"

PLUG - adapter opening (1" cup type)

1шт.

10

A38372

PUMP

PUMP ASSEMBLY - oil, Includes: Ref. 11 - 21

1шт.

10

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

10

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

11

A155144

VALVE, PRESSURE RELI

- relief, oil pump

1шт.

12

G48500

SPRING

SPRING - relief valve, oil pump

1шт.

13

A29260

RETAINER

RETAINER - relief spring, oil pump

1шт.

14

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN - roll, 1/8 x 1/4", oil pump

1шт.

15

A39321

PLUG,Cup, 7/16"

PLUG - body (1/2" cup type), oil pump

1шт.

16

G46852

GASKET

GASKET - pump cover, oil

1шт.

17

NSS

NOT SOLD SEPARAT

COVER - pump body, oil

1шт.

18

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT, , Oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

3шт.

20

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

SCREW - 1/4 x 5/8" slotted flat head, oil pump

2шт.

21

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump Ext Csk Tooth, 1/4"

2шт.

22

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

O-RING - oil port (3/4 x 15/16 x 3/32"), pump

1шт.

23

G11337

SHIM,.002" Thk

SHIM, , Pump to block, Oil .002" Thk

1шт.

23

G11338

SHIM,.005" Thk

SHIM, , Pump to block, Oil .005" Thk

1шт.

24

A39036

FLOAT

FLOAT ASSEMBLY (See inset A) (1st used engine serial no. 2700140), oil pump

1шт.

25

A30126

SPARE PART FLOAT ASSEMBLY (See inset B) (Order 1-A39036 and 1-A39035) (Used prior to engine serial no. 2700140), oil pump

1шт.

26

G45766

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST PIPE - suction (Used with A30126 float) (Used prior to engine serial no. 2700140), oil pump

1шт.

27

223-207

LOCK NUT

NUT - lock, pipe to pump, oil

1шт.

28

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

32

A36782

PAN

PAN ASSEMBLY - oil, Includes: Ref. 33 and 34

1шт.

33

A140222

PLUG

PLUG - drain (Replaces A14280) , oil pan

1шт.

34

A58608

GASKET

GASKET - drain plug , oil pan

1шт.

35

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A44758 from figure 40)

1шт.

36

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - 5/16 x 3/4" NC hex (Includes lockwasher) , oil pan

18шт.
