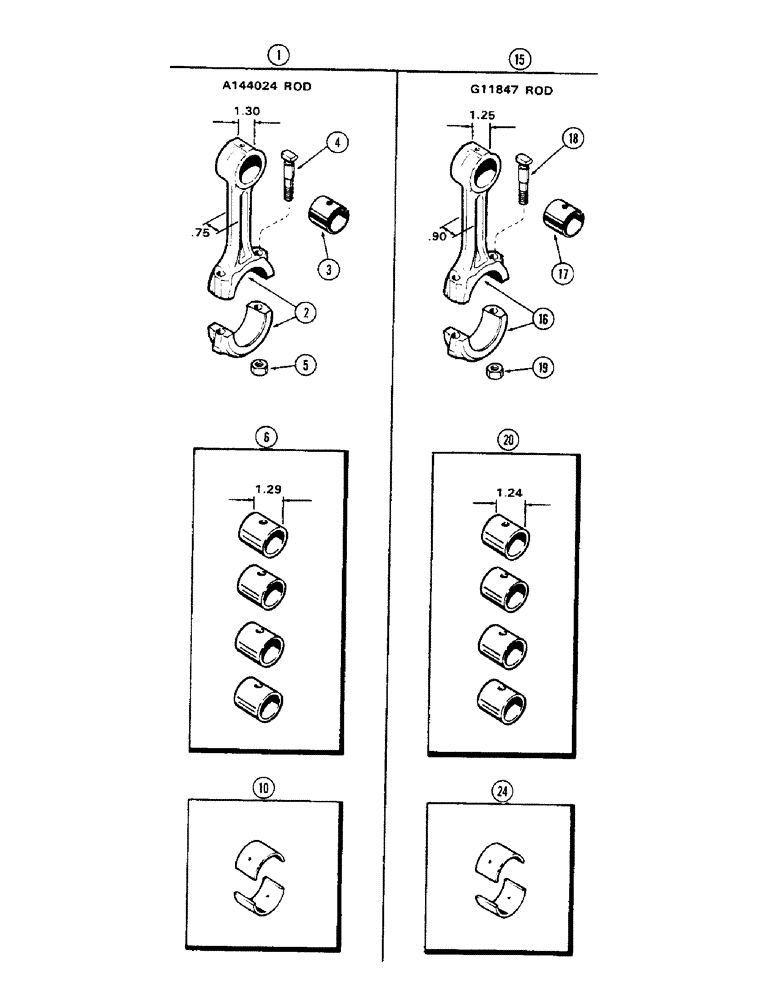

Запчасти Case 350 (036) - CONNECTING RODS, 188 DIESEL ENGINE, USED PRIOR TO ENGINE S/N 2767997 (01) - ENGINE

1

A144024

ROD

ASSEMBLY - connecting (Replacement for G11847), Includes: Ref. 2 - 5

4шт.

2

NSS

NOT SOLD SEPARAT

ROD AND CAP (.075" "1" section width and 1.30" pin boss width)

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 6) (1-7/32" ID x 1-5/16" OD x 1.29" long)

1шт.

4

G49064

STEP BOLT

BOLT - connecting rod cap

2шт.

5

A51904

NUT

NUT - connecting rod bolt

2шт.

6

A44083

KIT

BUSHING SET - piston pin (Set of 4)

1шт.

10

A36500

SEAL

LINER SET - connecting rod bearing (Standard) (Set of 2) (Order 4 sets of A46050) (See figure 34)

4шт.

10

A36501

BEARING LINER

LINER SET - connecting rod bearing (-.002") (Set of 2) (Order 4 sets of A46051) (See figure 34)

4шт.

10

A36502

LINING

LINER SET - connecting rod bearing (-.010") (Set of 2) (Order 4 sets of A46052) (See figure 34)

4шт.

10

A36503

BEARING LINER

LINER SET - connecting rod bearing (-.020") (Set of 2) (Order 4 sets of A46053) (See figure 34)

4шт.

10

A36504

KIT

LINER SET - connecting rod bearing (-.030") (Set of 2) (Order 4 sets of A46054) (See figure 34)

4шт.

15

G11847

ROD

ASSEMBLY - connecting (Order A144024), Includes: Ref. 16 - 19

4шт.

16

NSS

NOT SOLD SEPARAT

ROD AND CAP (0.90" "1" section width and 1.25" piston boss width)

1шт.

17

G49659

BEARING,30.94mm ID x 33.47mm OD x 31.75mm W

BUSHING - piston pin (See ref. 20) (1-7/32" ID x 1-5/16" OD x 1.24" length)

1шт.

18

G49064

STEP BOLT

BOLT - connecting rod cap

2шт.

19

A51904

NUT

NUT - connecting rod bolt (Replaces A39286)

2шт.

20

G11953

BUSHING

SET - piston pin (Set of 4)

1шт.

24

A36500

SEAL

LINER SET - connecting rod bearing (Standard) (Set of 2) (Order 4 sets of A46050) (See figure 34)

4шт.

24

A36501

BEARING LINER

LINER SET - connecting rod bearing (-.002") (Set of 2) (Order 4 sets of A46051) (See figure 34)

4шт.

24

A36502

LINING

LINER SET - connecting rod bearing (-.010") (Set of 2) (Order 4 sets of A46052) (See figure 34)

4шт.

24

A36503

BEARING LINER

LINER SET - connecting rod bearing (-.020") (Set of 2) (Order 4 sets of A46053) (See figure 34)

4шт.

24

A36504

KIT

LINER SET - connecting rod bearing (-.030") (Set of 2) (Order 4 sets of A46054) (See figure 34)

4шт.
