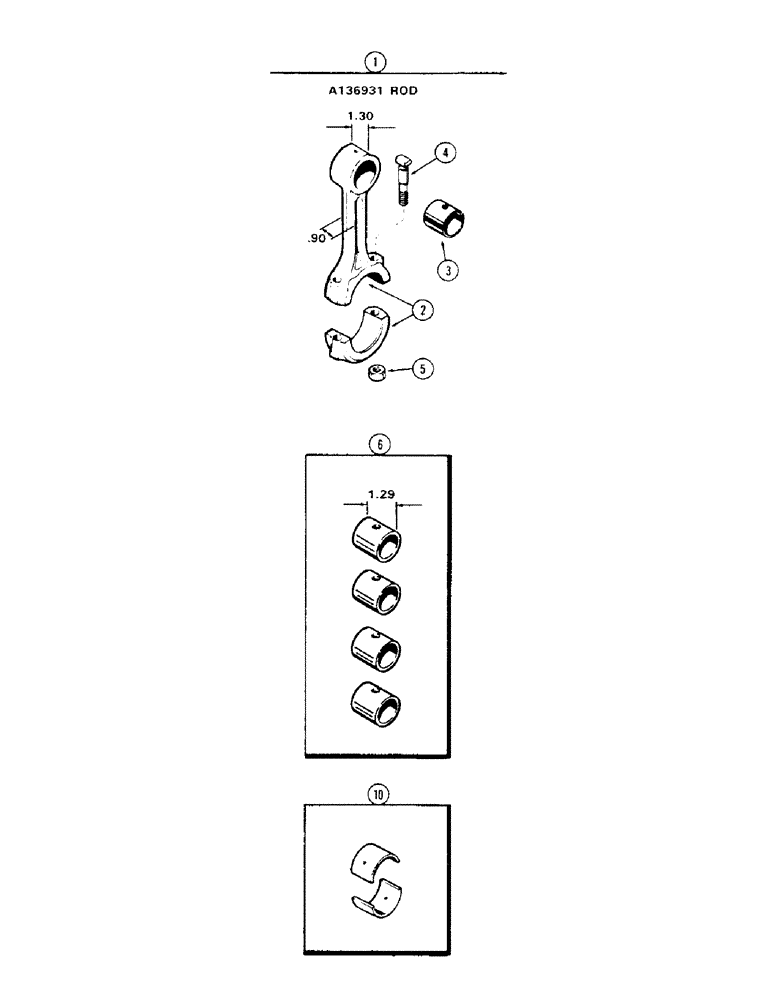

Запчасти Case 350 (034) - CONNECTING RODS, 188 DIESEL ENGINE, USED ENGINE SERIAL NO. 2767997 AND AFTER (01) - ENGINE

1

A136931

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

ROD AND CAP (0.90" "1" Section width and 1.30" pin boss width)

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 6) (1-7/32" ID x 1-5/16" OD x 1.29" long)

1шт.

4

G49064

STEP BOLT

BOLT - connecting rod cap

2шт.

5

A51904

NUT

NUT - connecting rod bolt

2шт.

6

A44083

KIT

BUSHING SET - piston pin (Set of 4)

1шт.

10

A46050

BEARING LINER,53.66mm ID x 56.82mm OD x 26.67mm W

LINER SET - connecting rod bearing (Standard) (Copper-Lead) (Set of 2) (See note)

4шт.

Always replace all connecting rod bearing lines. Do not mix Copper-Lead and aluminum liners in the same engine

1шт.

10

A36500

SEAL

LINER SET - connecting rod bearing (Standard) (Aluminum) (Set of 2) (Order 4 sets of A46050)

4шт.

A46051

BEARING LINER

LINER SET - connecting rod bearing (-.002") (Copper-Lead) (Set of 2) (See note)

4шт.

Always replace all connecting rod bearing lines. Do not mix Copper-Lead and aluminum liners in the same engine

1шт.

10

A36501

BEARING LINER

LINER SET - connecting rod bearing (-.002") (Aluminum) (Set of 2) (Order 4 sets of A46051)

4шт.

10

A46052

BEARING LINER,53.4mm ID x 56.82mm OD x 26.67mm W

LINER SET - connnecting rod bearing (-.010") (Copper-Lead) (Set of 2) (See note)

4шт.

Always replace all connecting rod bearing lines. Do not mix Copper-Lead and aluminum liners in the same engine

1шт.

10

A36502

LINING

LINER SET - connecting rod bearing (.010") (Aluminum) (Set of 2) (Order 4 sets of A46052)

4шт.

10

A46053

BEARING LINER,53.15mm ID x 56.82mm OD x 26.67mm W

LINER SET - connecting rod bearing (-.020") (Copper-Lead) (Set of 2) (See note)

4шт.

Always replace all connecting rod bearing lines. Do not mix Copper-Lead and aluminum liners in the same engine

1шт.

10

A36503

BEARING LINER

LINER SET - connecting rod bearing (-.020") (Aluminum) (Set of 2) (Order 4 sets of A46053)

4шт.

10

A46054

BEARING LINER

LINER SET - connecting rod bearing (-.030") (Copper-Lead) (Set of 2) (See note)

4шт.

Always replace all connecting rod bearing lines. Do not mix Copper-Lead and aluminum liners in the same engine

1шт.

10

A36504

KIT

LINER SET - connecting rod bearing (-.030") (Aluminum) (Set of 2) (Order 4 sets of A46054)

4шт.
