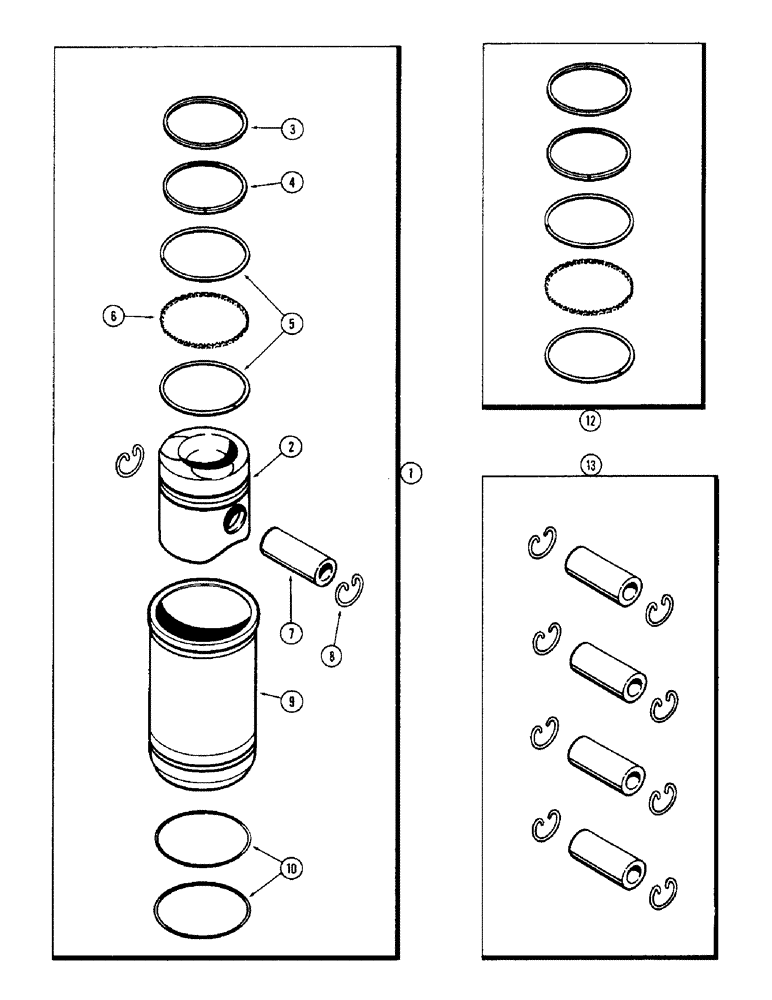

Запчасти Case 350 (032) - PISTONS, 188 DIESEL ENGINE (01) - ENGINE

1

A151995

SLEEVE ASSY

PISTON ASSEMBLY - set of 1 (Replaces A42812), Includes: Ref. 2 - 10

4шт.

2

A38424

PISTON

1шт.

3

A51189

RING

- compression, 1st groove (See ref. 12) (Replaces G4819)

1шт.

4

G4817

RING

- compression, 2nd groove (See ref. 12)

1шт.

5

G47155

RAIL

RING - oil control, 3rd groove (See ref. 12)

2шт.

6

G47174

SPRING

SPACER - oil control rings, 3rd groove (See ref. 12)

1шт.

7

NS

NOT SERVICED

PIN - piston

1шт.

8

G46702

RING, LOCKING

RING - piston pin retaining (See ref. 13)

2шт.

9

A39006

SLEEVE

- piston (Cylinder liner)

1шт.

10

G46888

O-RING,3.737" ID x 3.943" OD

- sleeve sealing

2шт.

12

A151857

PISTON RING SET

RING KIT - piston re-ring (Set of 1) (Replaces G37075)

4шт.

13

A35771

KIT

PIN SET - piston (Set of 4 piston and 8 retaining rings)

1шт.
