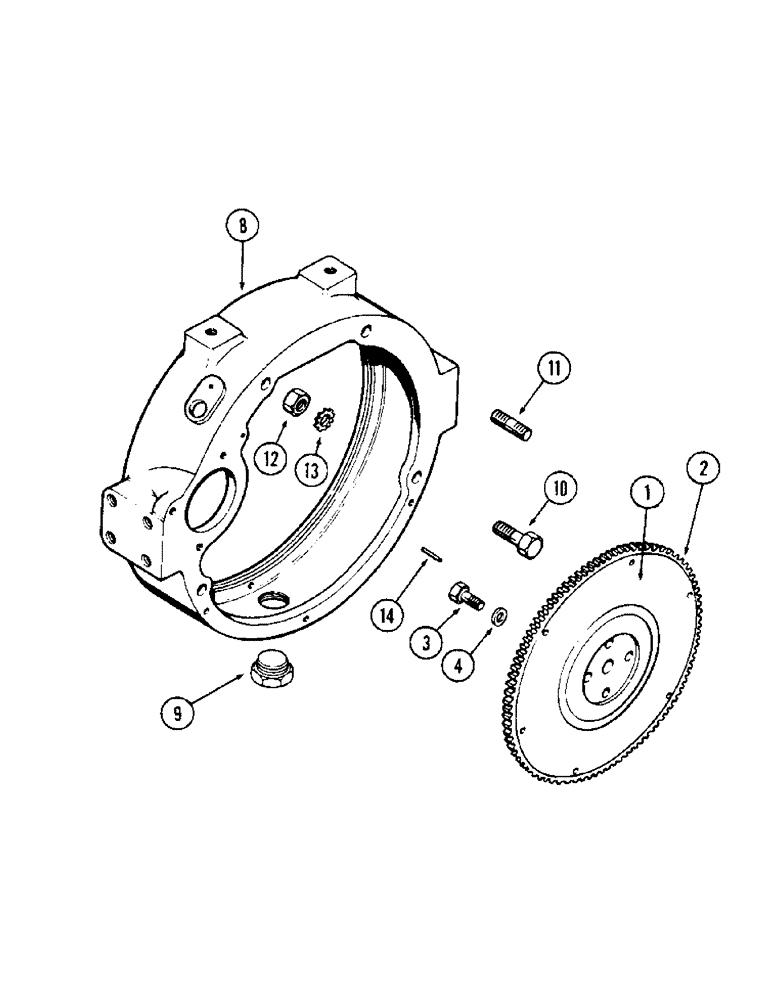

Запчасти Case 350 (030) - FLYWHEEL AND HOUSING, 188 DIESEL ENGINE (01) - ENGINE

1

A38915

FLYWHEEL

ASSEMBLY, Includes: Ref. 2

1шт.

2

G11710

GEAR

- ring

1шт.

3

121-300

LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8

BOLT - flywheel, 7/16 x 1-1/8" NF hex

4шт.

4

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

(7/16 x 3/4 x 1/16")

4шт.

8

A150727

WHEEL

HOUSING - flywheel, with drain hole (Replaces A39054)

1шт.

8

A38912

HOUSING

- flywheel, without drain hole (Order 1-A150727 housing and 1-353-25 plug)

1шт.

9

353-25

PLUG - drain hole (Used with A150727 housing) Cap, 1.600" OD

1шт.

10

A30135

BOLT

BOLT - housing to engine (5/8 x 2-1/4" NF hex)

2шт.

11

A29363

STUD

- housing to engine (5/8 NF x 2-1/4")

2шт.

12

25-1110

NUT,5/8"-18, G5

- 5/8" NF hex

4шт.

13

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

14

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, , Timing pointer 1/8" x 1 1/4", Slotted

1шт.
