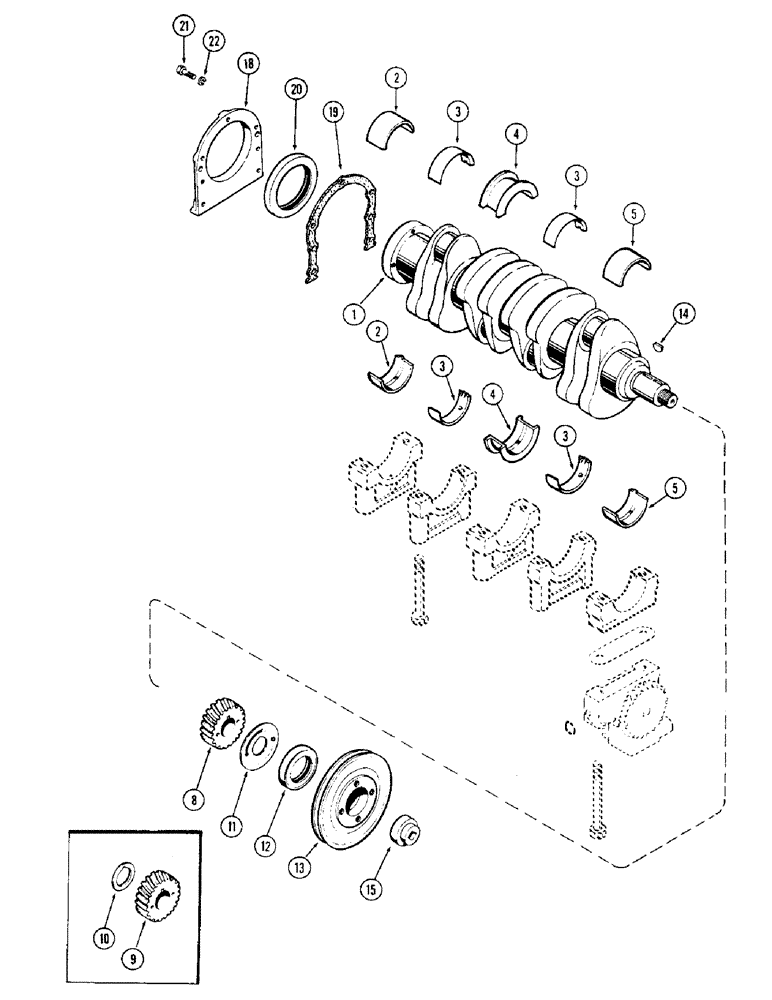

Запчасти Case 350 (028) - CRANKSHAFT, 188 DIESEL ENGINE (01) - ENGINE

1

A151015

CRANKSHAFT

(Replaces A37211 and A39146)

1шт.

2

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINER SET - main bearing, rear (Standard) (Set of 2)

1шт.

2

A36496

LINING

LINER SET - main bearing, rear (-.002") (Set of 2)

1шт.

2

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINER SET - main bearing, rear (-.010") (Set of 2)

1шт.

2

A36498

KIT

LINER SET - main bearing, rear (.-020") (Set of 2)

1шт.

2

A36499

BEARING LINER

LINER SET - main bearing, rear (-.030") (Set of 2)

1шт.

3

A36485

LINING

LINER SET - main bearing, intermediate (Standard) (Set of 2)

2шт.

3

A36486

LINING

LINER SET - main bearing, intermediate (-.002") (Set of 2)

2шт.

3

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINER SET - main bearing, intermediate (-.010") (Set of 2)

2шт.

3

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINER SET - main bearing, intermediate (-.020") (Set of 2)

2шт.

3

A36489

LINING

LINER SET - main bearing, intermediate (-.030") (Set of 2)

2шт.

4

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINER SET - main bearing, center (Standard) (Set of 2)

1шт.

4

A36491

LINING

LINER SET - main bearing, center (-.002") (Set of 2)

1шт.

4

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER SET - main bearing, center (-.010") (Set of 2)

1шт.

4

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER SET - main bearing, center (-.020") (Set of 2)

1шт.

4

A36494

LINING

LINER SET - main bearing, center (-.030") (Set of 2)

1шт.

5

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINER SET - main bearing, front (Standard) (Set of 2)

1шт.

5

A36481

LINING

LINER SET - main bearing, front (-.002") (Set of 2)

1шт.

5

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINER SET - main bearing, front (-.010") (Set of 2)

1шт.

5

A36483

LINING

LINER SET - main bearing, front (-.020") (Set of 2)

1шт.

5

A36484

LINING

LINER SET - main bearing, front (-.030") (Set of 2)

1шт.

8

A39288

GEAR

- crankshaft (1st used engine serial no. 2718083) (1-5/32" wide) (Do not use spacer with this gear)

1шт.

9

A29263

GEAR

- crankshaft (Used prior to engine serial no. 2718083) (1-1/16" wide) (Must use spacer with this gear)

1шт.

10

A29294

BUSHING

SPACER - thrust (3/32" wide) (Use with A29263 gear)

1шт.

11

A29259

SLINGER

- oil

1шт.

12

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, front (2 x 3 x 1/2") (Replaces A36609)

1шт.

13

A50962

PULLEY

- fan drive (Replaces A39931 and G11342)

1шт.

14

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley and gear

2шт.

15

A35673

NUT

- pulley retaining

1шт.

18

A38390

RETAINER

- rear oil seal

1шт.

19

A39188

GASKET

- retainer

1шт.

20

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, rear (4 x 5 x 1/2) (Replaces A36610, A39027 and A39111)

1шт.

A49851 Wear Sleeve for the A51339 Rear Crank Seal

1шт.

21

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- retainer (1/4 x 3/4 NC hex)

4шт.

21

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- retainer (1/4 x 1" NC hex)

3шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.
