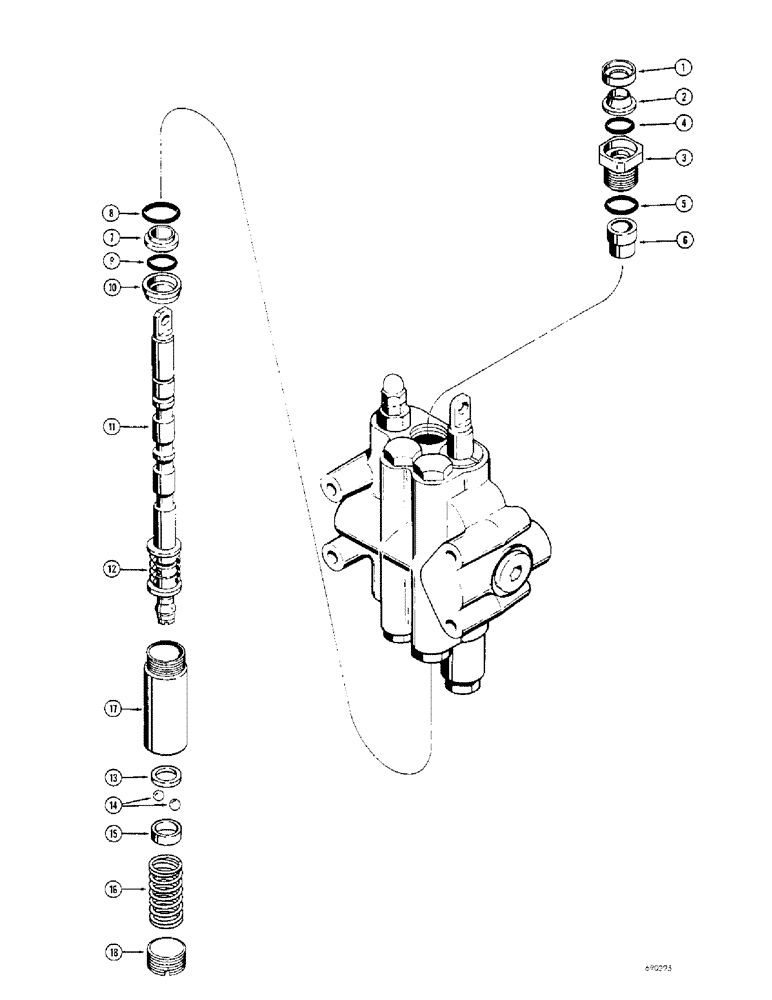

Запчасти Case 350 (348) - D46024 FOUR POSITION SPOOL (07) - HYDRAULIC SYSTEM

D46024

SPOOL

ASSEMBLY - four position, color code - black or letter code - W, .73700" (18.720 MM) to .73709" (18.722 MM), Includes: Ref. 1 - 18

1шт.

1

D37153

RETAINER

- wiper ring

1шт.

2

A14527

SCRAPER

RING - wiper

1шт.

3

D37152

RETAINER

GLAND - spool

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- small

1шт.

5

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

- large

1шт.

6

D37076

SLEEVE

- spool, lug end

1шт.

7

D33857

RETAINER

- O-ring

1шт.

8

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- large

1шт.

9

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- small

1шт.

10

D33856

RETAINER

- O-ring

1шт.

D46034

TUBE

SPOOL KIT - D46024 spool assembly only

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - four position

1шт.

12

A16882

SPRING

- centering

1шт.

13

L30455

WASHER

- detent

1шт.

14

211-8

BALL,9/32" Dia

- detent 9/32" Dia

8шт.

15

L30456

CAM

- detent

1шт.

16

L30626

SPRING

- detent

1шт.

17

L30454

CAP

- valve, detent

1шт.

18

L30458

PLUG

- detent adjustment

1шт.
