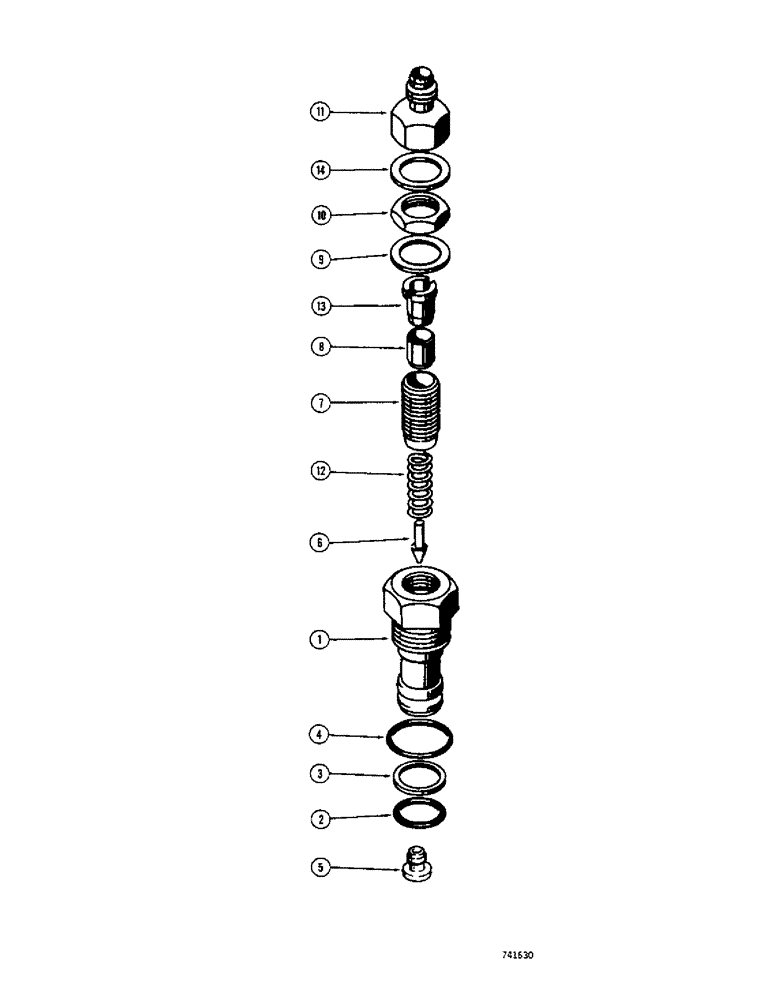

Запчасти Case 350 (346) - MAIN RELIEF VALVE, USED ON DOZER BACKHOE MODELS (07) - HYDRAULIC SYSTEM

R26337

VALVE ASSEMBLY - dual main relief, Includes: Ref. 1 - 13

1шт.

1

D37045

CAP

BODY - valve

1шт.

2

L30444

O-RING,0.521" ID x 0.661" OD

- small

1шт.

3

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup

1шт.

5

D26266

SEAT

- pilot

1шт.

6

D26267

PLUNGER

- pilot

1шт.

7

D27258

ADJUSTMENT SCREW,5/8" - 18 x 1 1/16"

- adjusting

1шт.

8

D27261

PISTON

- relief valve

1шт.

9

D27259

SEAL

- special

2шт.

10

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex, lock, 5/8" - 18 NF

1шт.

11

D27260

FITTING

- pilot

1шт.

12

D26268

SPRING

- pilot

1шт.

13

R29766

RETAINER

- piston

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- large

1шт.
