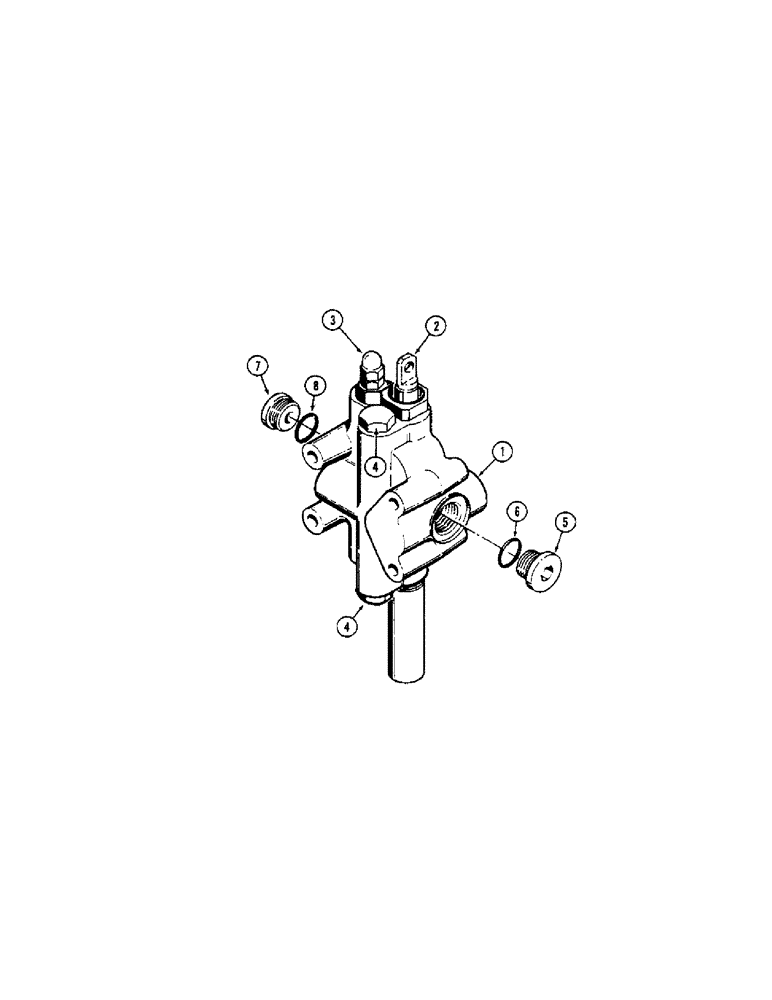

Запчасти Case 350 (336) - D45036 EQUIPMENT VALVE - ONE SPOOL (07) - HYDRAULIC SYSTEM

1

D45036

VALVE - equipment control, Parker VDSP 22-F-22, Includes: Ref. 2 - 8

1шт.

2

D46024

SPOOL

- four position, parts list figure 328

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list figure 344

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - check, parts list figure 350

2шт.

5

9841223

PLUG,1-1/16" - 12 ORB

Valve port, Incl. Ref. 6 Hex Soc, 1 1/16"-12 ORB

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

7

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Valve port, Incl. Ref 8 Hex Soc, 1 5/16"-12 ORB

1шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.
