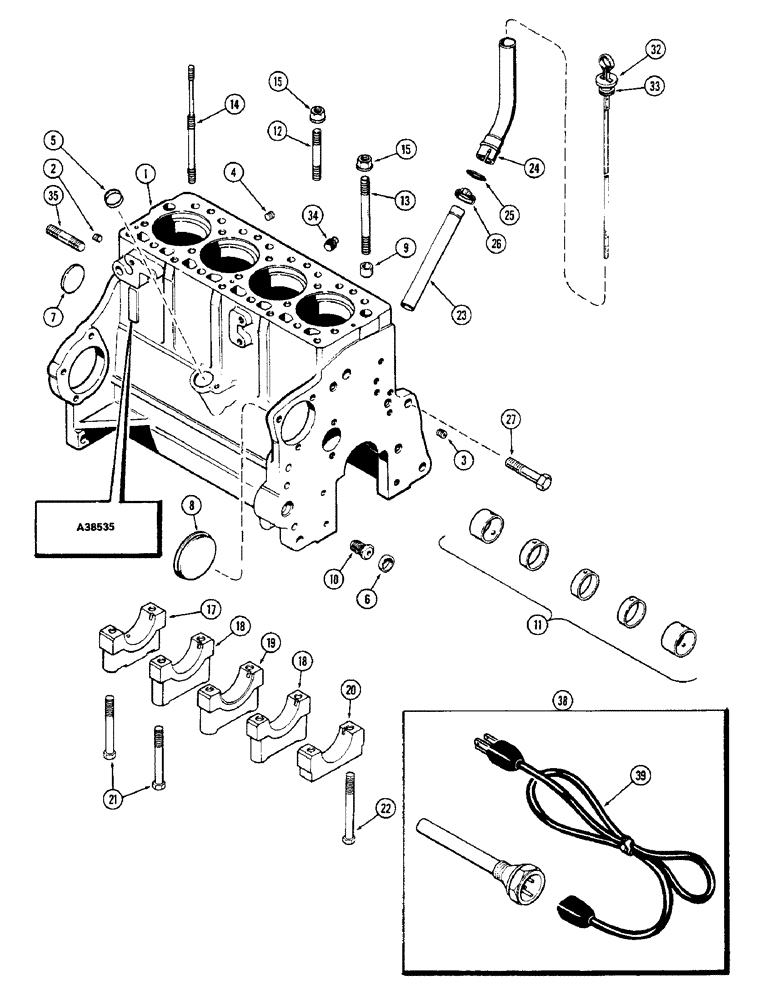

Запчасти Case 350 (026) - CYLINDER BLOCK, 188 DIESEL ENGINE, USED PRIOR TO ENGINE S/N 2711005 WITH CYL. HEAD STUDS (01) - ENGINE

A42814

CYLINDER BLOCK

BLOCK ASSEMBLY - short (Order A46352) (Includes stripped block, crankshaft and bearings, piston assembly, connecting rods and bearings, camshaft, oil pump and timing gears), Includes: Ref. 1 - 27

1шт.

1

A41597

SKELETON ENGINE

BLOCK ASSEMBLY - stripped (Order A46351) (Casting no. A38535), Includes: Ref. 2 - 27

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

2шт.

3

G49070

PLUG

- oil gallery, 1/4" PT, drilled head

1шт.

4

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - 3/8 PT, socket head

1шт.

5

A38534

PLUG

- tachometer drive hole, 1-1/16" cup

1шт.

6

41-1016

PLUG,Cup, 1"

- adapter hole, 1" cup

1шт.

7

A39241

PLUG,Exp, 2.12" dia

- camshaft hole, 2-1/8" expansion

1шт.

8

41-1052

PLUG,Cup, 3 1/4"

- auxiliary pump hole, 3-1/4" cup

1шт.

9

G49608

RING

- dowel, head locating

2шт.

10

A153552

ADAPTER

- oil filter

1шт.

11

A42746

CAM

BUSHING SET - camshaft

1шт.

12

A36904

STUD

- cylinder head, 1/2" NC x 4"

4шт.

13

A36902

STUD

- cylinder head, 1/2" NC x 5-5/8"

11шт.

13

A36905

STUD

- cylinder head, 1/2" NC x 6"

2шт.

14

A36903

STUD

- cylinder head cover

2шт.

15

A37030

FLANGE NUT

- 1/2" NC hex, flanged

19шт.

17

A38385

CAP

- main bearing, rear

1шт.

18

G2128

CAP

- main bearing, intermediate

2шт.

19

G2127

CAP

- main bearing, center

1шт.

20

G2126

CAP

- main bearing, front

1шт.

21

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- bearing caps, 1/2 x 4-1/2" NC hex

8шт.

22

26-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

- front bearing cap, 1/2 x 5" NC hex

2шт.

23

A37149

TUBE

- oil filler and dipstick

1шт.

24

A37407

TUBE

EXTENSION - oil filler tube

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- tube, 1-1/8 x 1-3/8 x 1/8"

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - tube, 1-3/16" to 1-3/4"

1шт.

27

A38303

BOLT

BOLT - front support, 5/8 x 3-3/16" NC hex

1шт.

32

A37148

DIPSTICK

ASSEMBLY (Order A39936), Includes: Ref. 33

1шт.

33

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- 3/4 x 1 x 1/8"

2шт.

34

221-662

PLUG,Hex Hd, 1/4"-18

- drain, cylinder block, 1/4" PT, square head

1шт.

35

A29363

STUD

- engine mount, 5/8" NC-NF x 2-1/4"

2шт.

38

A44815

HEATER

ASSEMBLY (Replaces A40637) , block, Includes: Ref. 39

1шт.

39

A44814

ELECTRIC CABLE

CORD ASSEMBLY - 12" long (Replaces A40477), block heater

1шт.
