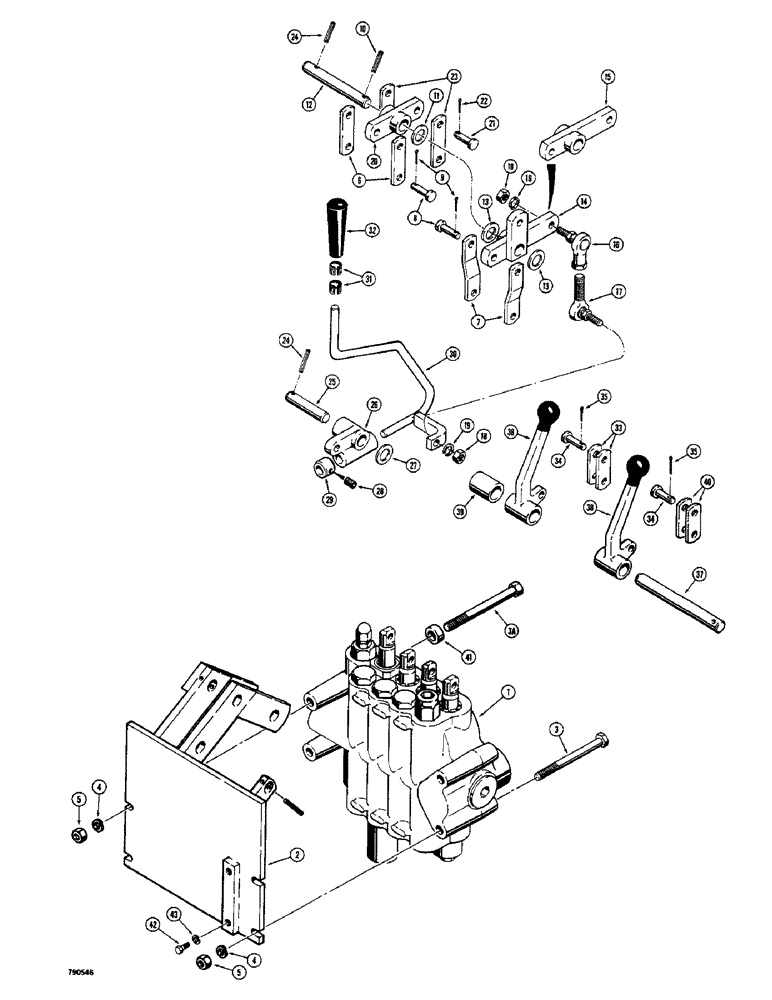

Запчасти Case 350 (334) - EQUIPMENT CONTROL VALVES AND LEVERS, THREE LEVERS - FOUR SPOOLS (07) - HYDRAULIC SYSTEM

1

R30045

VALVE

- four spool, parts list figure 342

1шт.

2

R41633

BRACKET - lever mounting

1шт.

3

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8" - 16 NC x 4-1/4"

2шт.

3a

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8" - 16 NC x 4-1/2"

2шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

6

D46075

DRAG LINK

LINK - at valve to lever, inner

2шт.

7

D46078

DRAG LINK

LINK - at valve to lever, curved

2шт.

8

D45388

PIN

- clevis

4шт.

9

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

10

138-96

LOCK PIN,3/16" x 1", Slotted

WASHER - special

1шт.

11

A26411

WASHER

- special

1шт.

12

D46073

AXLE PIN

PIN - mounting, linkage

1шт.

13

A26411

WASHER

- spacer

1шт.

14

D46086

LINK - at control lever, loader models

1шт.

15

D46087

LEVER

LINK - at control lever, dozer models

1шт.

16

D40908

BALL JOINT

- female

1шт.

17

D46071

BALL JOINT

- male

1шт.

18

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

D46083

LEVER

LINK - to pivot lever

1шт.

21

D45388

PIN

- clevis

2шт.

22

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

23

D43454

LINK

- at pivot lever

2шт.

24

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

25

D46074

AXLE PIN

PIN - mounting, pivot lever

1шт.

26

D46094

CRANK

LEVER - pivot

1шт.

27

A26411

WASHER

- spacer

1шт.

28

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - Allen head, 1/4" - 20 NC x 1/4"

1шт.

29

D46079

COLLAR

- control lever

1шт.

30

D46101

LEVER

- valve control, inner, loader models

1шт.

30

D47804

LEVER

- valve control, inner, dozer models

1шт.

31

D38662

RING

BUSHING - spacer

2шт.

32

D37550

KNOB

- control lever

1шт.

33

D46077

LINK

- at valve to lever, between curved links and outer links

2шт.

34

D45388

PIN

- clevis

4шт.

35

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

36

138-96

LOCK PIN,3/16" x 1", Slotted

PIN - roll, 3/16" x 1-1/4"

1шт.

37

D43490

PIN

- mounting, lever

1шт.

38

D33255

LEVER

- valve control, outer and center

2шт.

39

D46080

SPACER

- lever

1шт.

40

D35859

SPACER

- control valve mounting, left side

2шт.

42

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

43

92-6

LOCK WASHER,3/8"

2шт.
