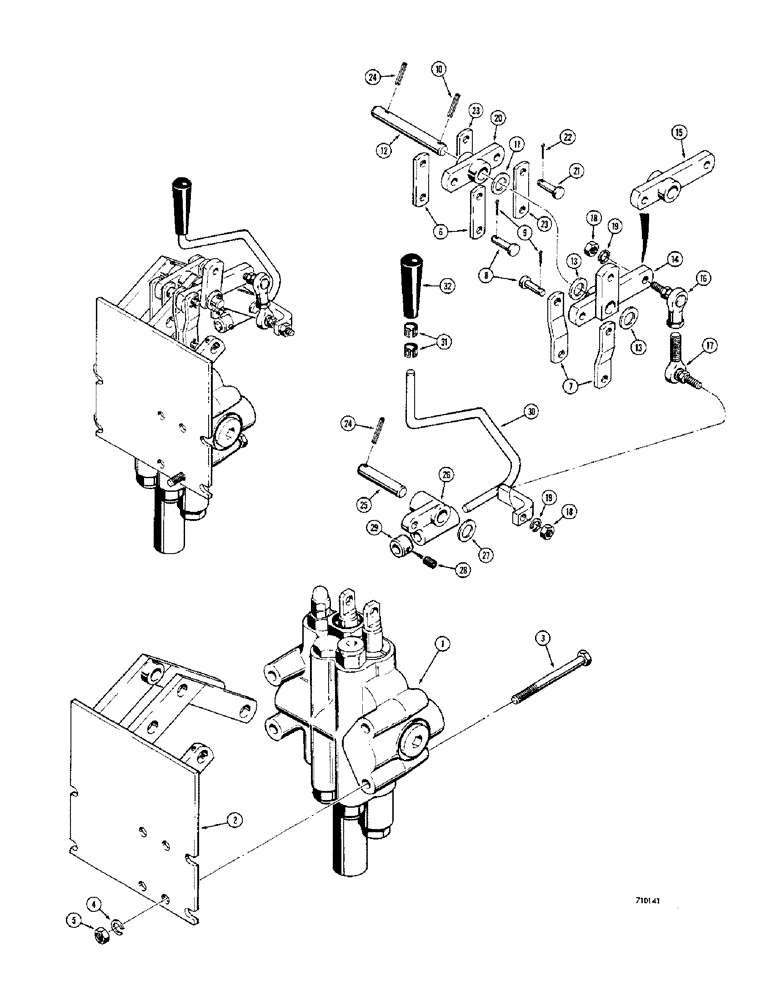

Запчасти Case 350 (330) - EQUIPMENT CONTROL VALVES AND LEVERS, ONE LEVER - TWO SPOOLS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
D45039
VALVE
- two spool, loader models with counterweight or backhoe, parts list figure 338
1шт.
Used on models with field installed ripper, three point hitch or pull behind hydraulics.
1шт.
1
D45037
VALVE
- two spool, power angling or tilt dozer models with or without backhoe, parts list figure 336
1шт.
Used on models with field installed ripper, three point hitch or pull behind hydraulics.
1шт.
2
D46098
BRACKET
- lever mounting
1шт.
3
13-668
BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5
- hex, 3/8" - 16 NC x 4-1/4"
4шт.
4
92-6
LOCK WASHER,3/8"
4шт.
5
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
4шт.
6
D46075
DRAG LINK
LINK - lever to valve, inner
2шт.
7
D46078
DRAG LINK
LINK - lever to valve, outer
2шт.
8
D45388
PIN
- clevis
4шт.
9
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
4шт.
10
138-96
LOCK PIN,3/16" x 1", Slotted
PIN, 3/16" x 1", Slotted
1шт.
11
A26411
WASHER
- special
1шт.
12
D46073
AXLE PIN
PIN - mounting linkage
1шт.
13
A26411
WASHER
- spacer
1шт.
14
D46086
LINK - at control lever, loader models
1шт.
15
D46087
LEVER
LINK - at control lever, dozer models
1шт.
16
D40908
BALL JOINT
- female
1шт.
17
D46071
BALL JOINT
- male
1шт.
18
25-116
NUT,Hex, 3/8"-24, G5
- hex, 3/8" - 24 NF
2шт.
19
92-6
LOCK WASHER,3/8"
2шт.
20
D46083
LEVER
LINK - to pivot lever
1шт.
21
D45388
PIN
- clevis
2шт.
22
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
2шт.
23
D43454
LINK
- at pivot lever
2шт.
24
138-98
LOCK PIN,3/16" x 1 1/4", Slotted
PIN, 3/16" x 1 1/4", Slotted
2шт.
25
D46074
AXLE PIN
PIN - mounting, pivot lever
1шт.
26
D46094
CRANK
LEVER - pivot
1шт.
27
A26411
WASHER
- spacer
1шт.
28
83-44
SET SCREW,Hex Soc, 1/4"-20 x 1/4"
SCREW - Allen head, 1/4" - 20 NC x 1/4"
1шт.
29
D46079
COLLAR
- control lever
1шт.
30
D47804
LEVER
- valve control, dozer models
1шт.
30
D46101
LEVER
- valve control, loader models
1шт.
31
D38662
RING
BUSHING - spacer
2шт.
32
D37550
KNOB
- control lever
1шт.
Выбрано товаров: 36
