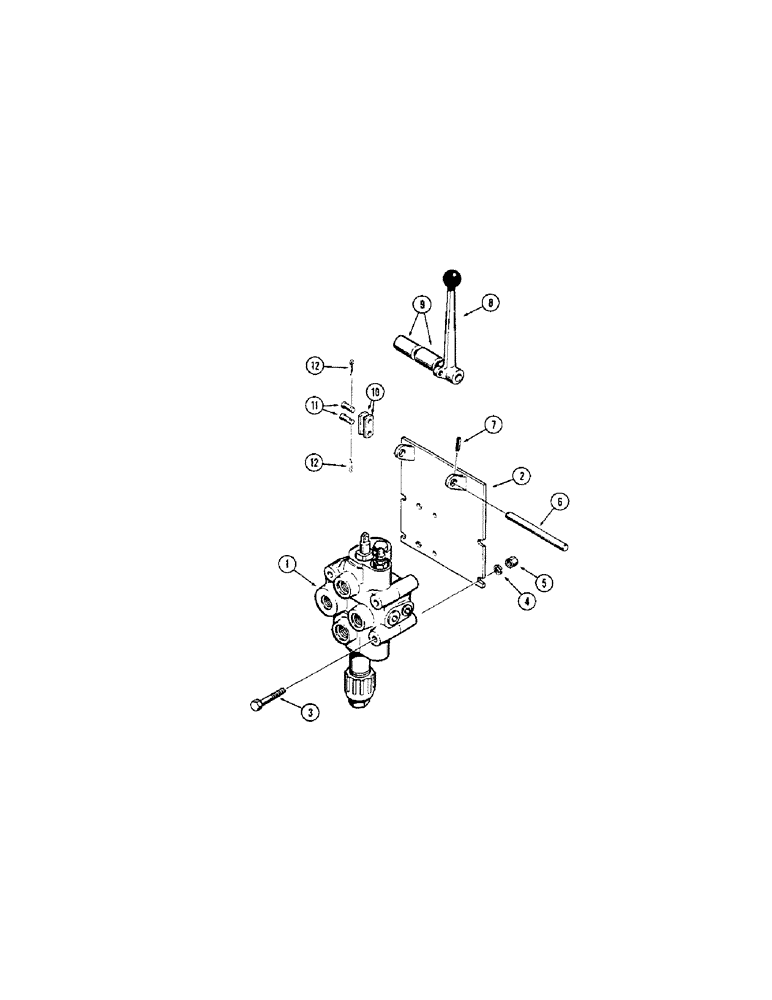

Запчасти Case 350 (328) - EQUIPMENT CONTROL VALVES AND LEVERS, ONE LEVER - ONE SPOOL (07) - HYDRAULIC SYSTEM

1

D45036

VALVE - one spool, mechanical angling dozer, parts list figure 336

1шт.

For models with field installed three point hitch, ripper or pull behind hydraulics.

1шт.

2

D38088

BRACKET - lever mounting

1шт.

3

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8" - 16 NC x 4-1/4"

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

6

D33251

SHAFT

- lever mounting

1шт.

7

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

8

D33254

LEVER - valve control

1шт.

9

D33252

SPACER - lever

2шт.

10

D25483

LINK

-, Serial Range: lever-lever

2шт.

11

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

25шт.

12

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.
