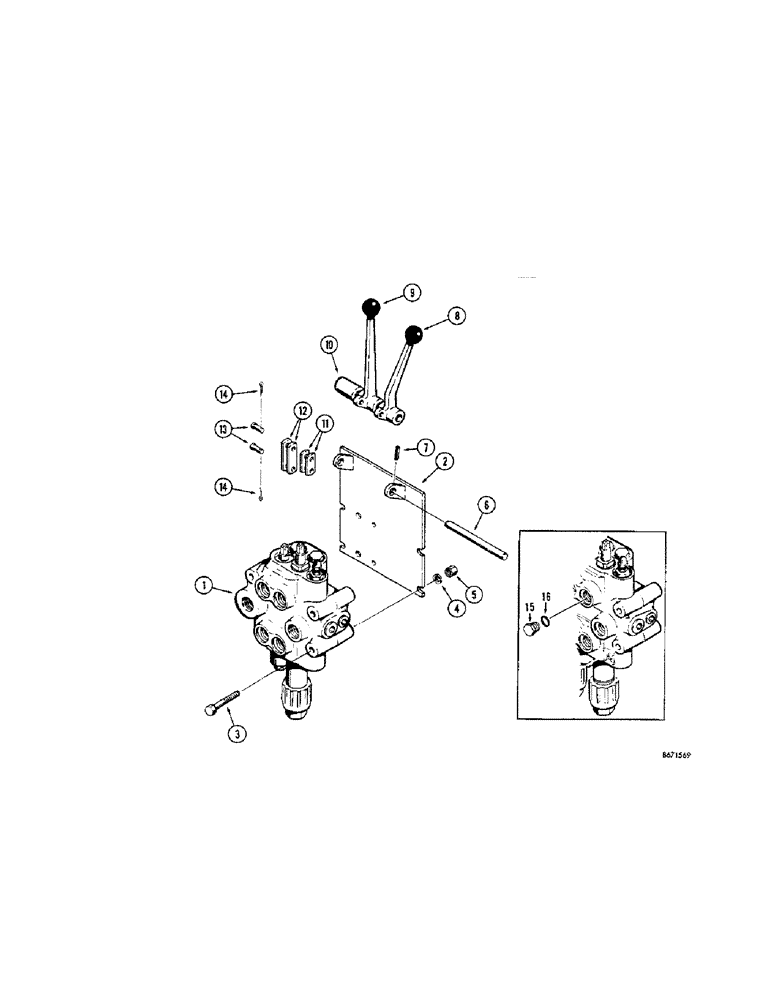

Запчасти Case 350 (328[1]) - TWO LEVERS - TWO SPOOLS (07) - HYDRAULIC SYSTEM

1

D45037

VALVE

- two spool, use on drawbar with three point hitch and mechanical angling dozer with ripper, pull behind hydraulics or three point hitch, parts list figure 336(1)

1шт.

2

D38088

BRACKET - lever mounting

1шт.

3

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8" - 16 NC x 4-1/4"

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

6

D33251

SHAFT

- lever mounting

1шт.

7

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

8

D33256

LEVER - valve control, LH

1шт.

9

D33254

LEVER - valve control, RH

1шт.

10

D33252

SPACER - lever

1шт.

11

D25483

LINK

- LH, short

2шт.

12

D38089

LINK

- RH, long

2шт.

13

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

4шт.

14

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

15

86512512

PLUG,7/8" - 14 ORB

Valve port, If used, Incl. Ref. 16 Hex Hd, 7/8"-14 ORB

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.
