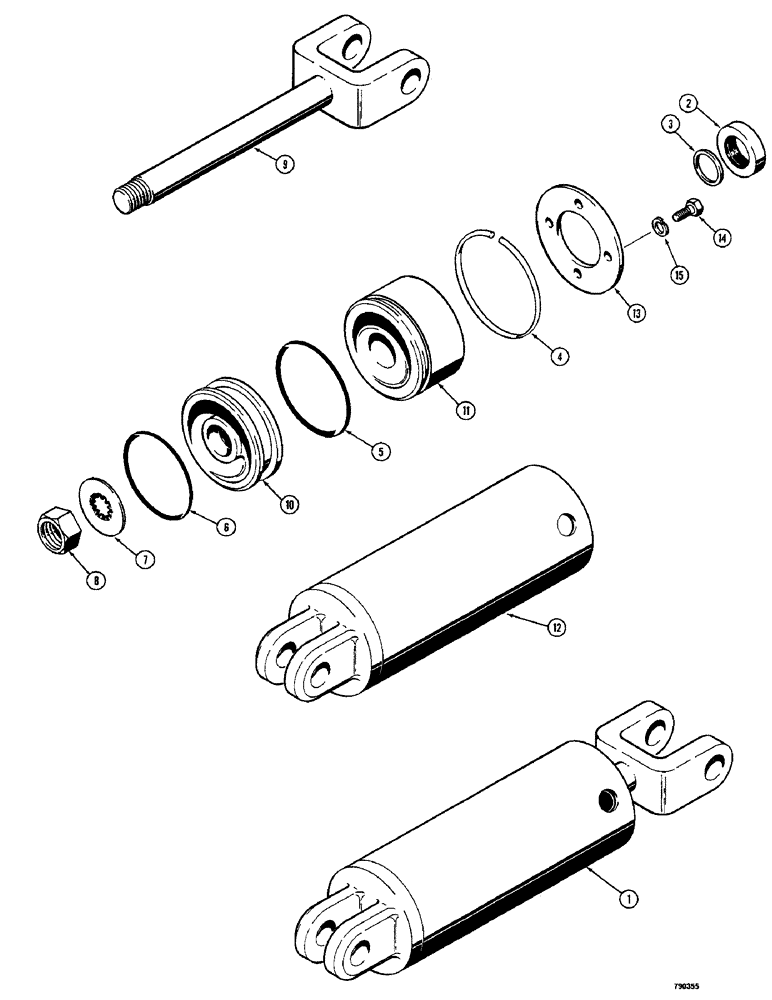

Запчасти Case 350 (326) - A11231 THREE POINT HITCH CYLINDER (07) - HYDRAULIC SYSTEM

1

A11231

CYLINDER

- 4" (102 MM) ID x 6" (152 MM) stroke, Includes: Ref. 2 - 15

1шт.

A40760

KIT

SEAL KIT - cylinder repair, Includes: Ref. 2 - 8

1шт.

2

A26758

OIL SEAL

SEAL - piston rod

1шт.

3

A11251

SEALING RING

QUAD RING - piston

1шт.

4

A30896

RING

- snap

1шт.

5

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

- cylinder head

1шт.

6

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

- piston

1шт.

7

193-36

LOCK WASHER,Int Tooth, 7/8"

WASHER, LOCK, Int Tooth, 7/8"

1шт.

8

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex, lock, 7/8" - 14 NF, if used

1шт.

9

4416AA

ROD - piston, 1-1/8" (29 MM) dia

1шт.

10

A23534

PISTON - cylinder

1шт.

11

A11248

HEAD

- cylinder

1шт.

12

A11247

TUBE - cylinder body

1шт.

13

A11249

PLATE - cylinder end

1шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

15

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

4шт.
