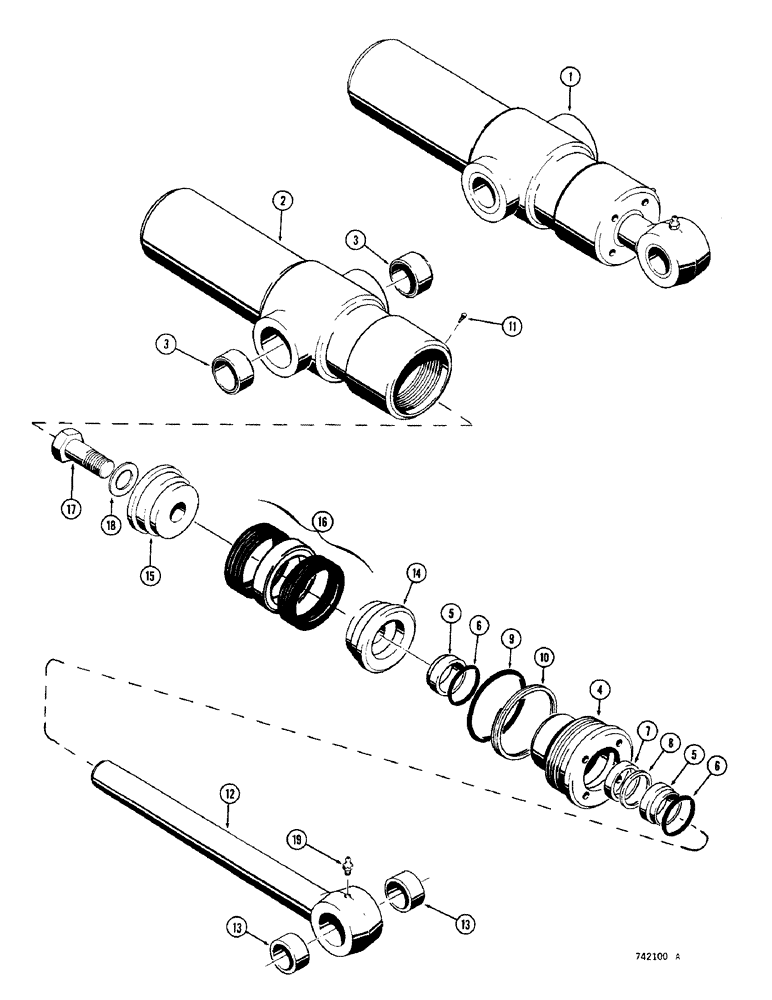

Запчасти Case 350 (324) - D31185 RIPPER CYLINDER, SPLIT INNER AND OUTER ROD WIPERS (07) - HYDRAULIC SYSTEM

1

D31185

CYLINDER - 3" (76 MM) ID x 10-1/2" (267 MM) stroke, service with G101241 cylinder, Includes: Ref. 2 - 18

1шт.

2

D31184

TUBE

- cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube trunnion

2шт.

4

D45067

GLAND

- use G32734 gland, figure 322, ref 28

1шт.

D42870

GASKET KIT

PACKING KIT - gland, Includes: Ref. 5 - 11

1шт.

5

D27706

WIPER SEAL

WIPER - piston rod

2шт.

6

D27878

O-RING,1.609" ID x 1.887" OD

- gland, small, if used

2шт.

7

D36969

CUP

SEAL - piston rod

1шт.

Service option P/N G100776 - severe heat or cold

1шт.

8

D28498

RING

- backup

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland, large

1шт.

10

D28049

RING

- backup

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

D32143

EYE

ROD - piston, 1-1/2" (38 MM) dia, use G33467 rod, G33485 gland and G33150 piston, figure 322, Includes: Ref. 13

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

14

D28365

PISTON

- split, rod end

1шт.

15

D28366

PISTON

- split, bolt end

1шт.

16

G33151

PACKING

- piston

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.
