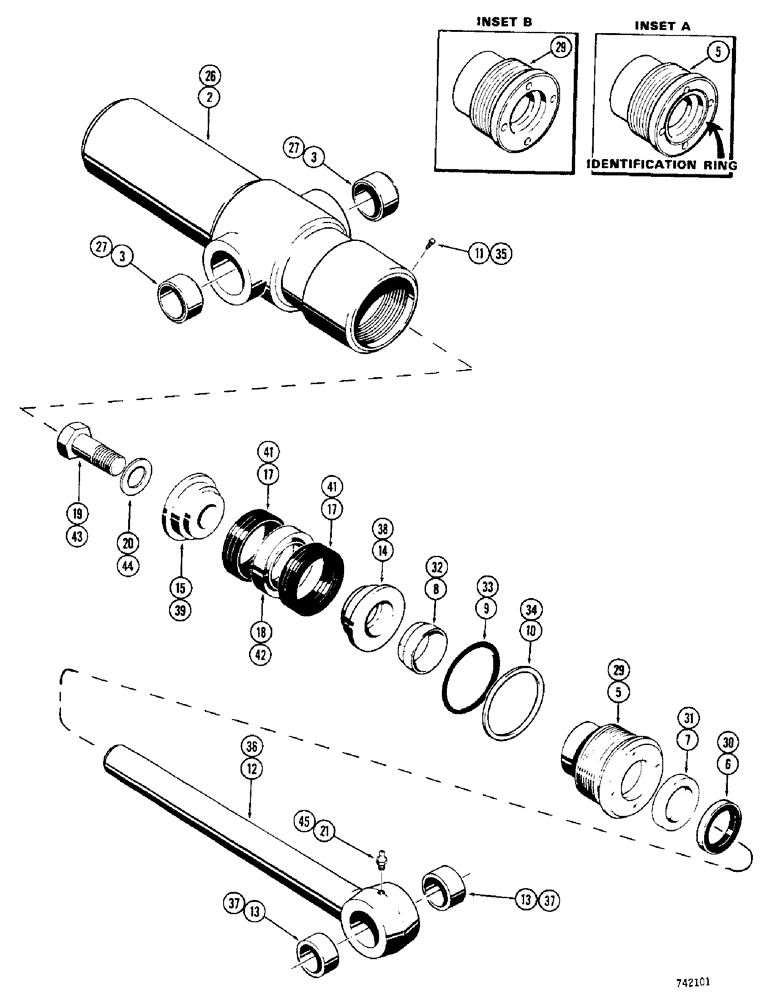

Запчасти Case 350 (322) - G33470 AND G32480 RIPPER CYLINDERS WITH SPLIT INNER ROD WIPER AND SOLID OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

G33470

CYLINDER

- 3" (76 MM) ID x 10-1/2" (267 MM) stroke, not shown, service with one G101241 cylinder, Includes: Ref. 2 - 21

1шт.

2

D31184

TUBE

- cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

4

G33485

GLAND

ASSEMBLY - not shown, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - see inset A

1шт.

Look for identification ring on gland.

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G34332

1шт.

7

D36969

CUP

SEAL - piston rod

1шт.

Part of Seal Kit P/N G34332

1шт.

Service option P/N G100776 - severe heat or cold

1шт.

8

D27706

WIPER SEAL

WIPER - piston rod, inner

1шт.

Part of Seal Kit P/N G34332

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G34332

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G34332

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G33467

ROD

- piston, 1-1/2" (38 MM) diameter, Includes: Ref. 13

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

14

G33150

PISTON

- split, rod end

1шт.

15

D28366

PISTON

- split, bolt end

1шт.

16

G33151

PACKING

- piston, not shown, Includes: Ref. 17 and 18

1шт.

Part of Seal Kit P/N G34332

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

25

G32480

CYLINDER ASSY.

CYLINDER - 3" (76 MM) ID x 10-1/2" (267 MM) stroke, not shown, service with G101241 cylinder, Includes: Ref. 26 - 45

1шт.

26

D31184

TUBE

- cylinder, Includes: Ref. 27

1шт.

27

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

28

G32734

GLAND

ASSEMBLY - not shown, Includes: Ref. 29 - 34

1шт.

29

NSS

NOT SOLD SEPARAT

GLAND - see inset B

1шт.

Has no identification ring on gland.

1шт.

30

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G34332

1шт.

31

D36969

CUP

SEAL - piston rod

1шт.

Part of Seal Kit P/N G34332

1шт.

Service option P/N G100776 - severe heat or cold

1шт.

32

D27706

WIPER SEAL

WIPER - piston rod, inner

1шт.

Part of Seal Kit P/N G34332

1шт.

33

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G34332

1шт.

34

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G34332

1шт.

35

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

36

D32143

EYE

ROD - piston, 1-1/2" (38 MM) diameter, use G33467, G33485 and G33150 - see above, Includes: Ref. 37

1шт.

37

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

38

D28365

PISTON

- split, rod end

1шт.

39

D28366

PISTON

- split, bolt end

1шт.

40

G33151

PACKING

- piston, not shown, Includes: Ref. 40 and 41

1шт.

Part of Seal Kit P/N G34332

1шт.

41

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

42

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

43

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

44

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

45

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G34332

SEAL

KIT - seal, Includes: Ref. 6 - 10, 16, 30 - 34 and 40

1шт.

G100776

SEAL

- piston ring, service option - severe heat or cold

1шт.
