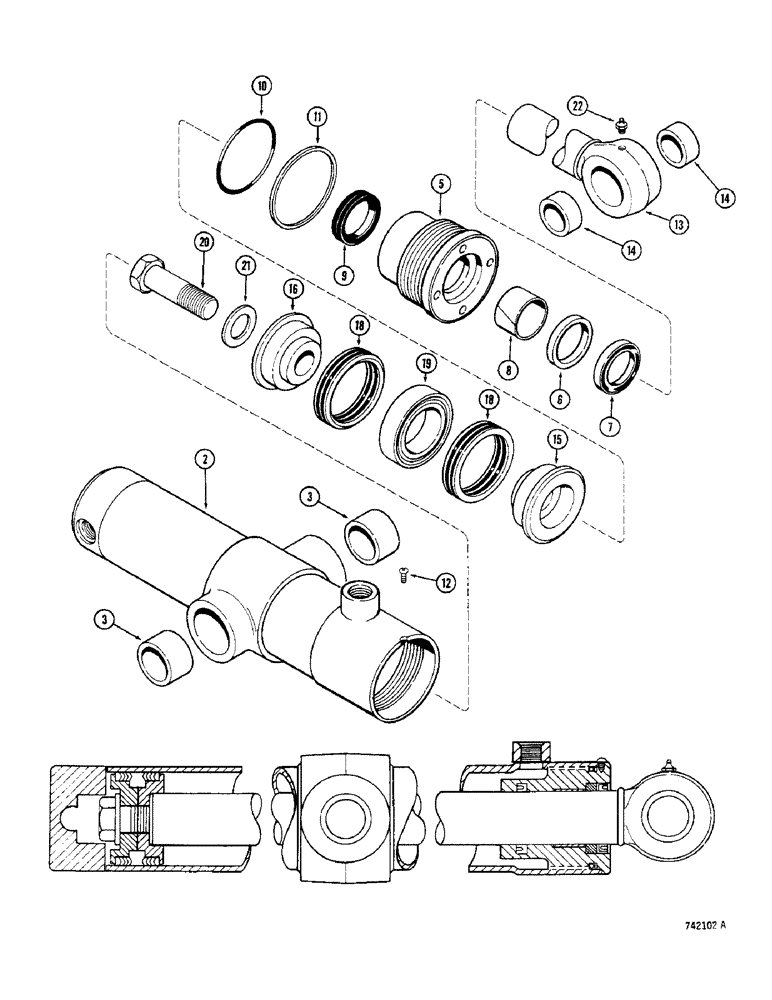

Запчасти Case 350 (320) - G33470 RIPPER CYLINDER, HAS SINGLE, SOLID ROD WIPER AND SPLIT PISTON (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
G33470
CYLINDER
- 3" (76 MM) ID x 10-1/2" (267 MM) stroke, service with one G101241 cylinder, Includes: Ref. 1 - 22
1шт.
2
D31184
TUBE
- cylinder, Includes: Ref. 3
1шт.
3
30634
BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L
- tube
2шт.
G34328
GLAND
ASSEMBLY - cylinder, Includes: Ref. 5 - 11
1шт.
5
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
6
NSS
NOT SOLD SEPARAT
RING - center bearing
1шт.
7
D95142
WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk
WIPER - piston rod
1шт.
Part of Seal Kit P/N G34332
1шт.
8
G102424
BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L
BEARING - Center
1шт.
Part of Seal Kit P/N G34332
1шт.
9
D36969
CUP
SEAL - piston rod
1шт.
Part of Seal Kit P/N G34332
1шт.
Service option P/N G100776 - severe heat or cold
1шт.
10
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
- gland
1шт.
Part of Seal Kit P/N G34332
1шт.
11
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
- backup
1шт.
Part of Seal Kit P/N G34332
1шт.
12
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, no. 8 - 32 NC x 1/4"
1шт.
13
G33467
ROD
- piston, 1-1/2" (38 MM) diameter, Includes: Ref. 14
1шт.
14
30634
BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L
- piston rod
2шт.
15
G33150
PISTON
- split, rod end
1шт.
16
D28366
PISTON
- split, bolt end
1шт.
G33151
PACKING
- piston, Includes: Ref. 18 and 19
1шт.
Part of Seal Kit P/N G34332
1шт.
18
NSS
NOT SOLD SEPARAT
PACKING - V-type
2шт.
19
NSS
NOT SOLD SEPARAT
RING - center bearing
1шт.
20
28-1240
BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8
- hex, 3/4" - 16 NF x 2-1/2"
1шт.
21
G32317
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- hardened
1шт.
22
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" NPT
1шт.
G34332
SEAL
KIT - seal, Includes: Ref. 7 - 11 and P/N G33151
1шт.
G100776
SEAL
- piston rod, service option - severe heat or cold
1шт.
Выбрано товаров: 31
