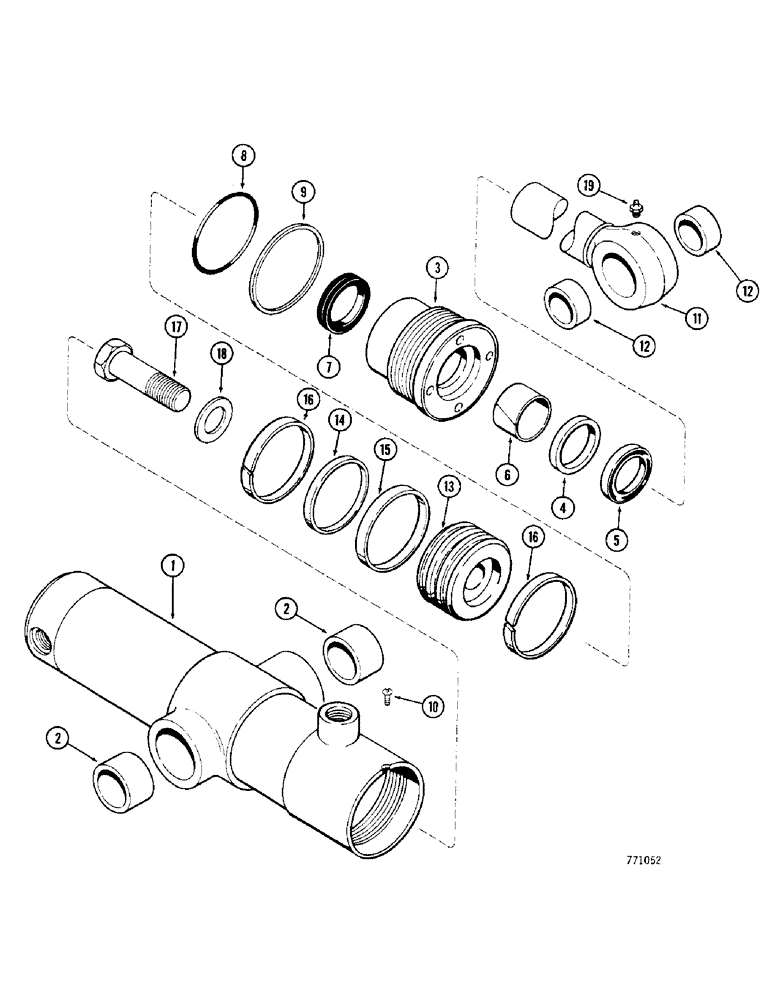

Запчасти Case 350 (318) - G101241 RIPPER CYLINDER, HAS ONE PIECE PISTON (07) - HYDRAULIC SYSTEM

G101241

CYLINDER ASSY.

CYLINDER - 3" (76 MM) ID x 10-1/2" (267 MM) stroke, Includes: Ref. 1 - 19

1шт.

1

D31184

TUBE

- cylinder, Includes: Ref. 2

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

G34328

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod

1шт.

Part of Seal Kit P/N G102404

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Center

1шт.

Part of Seal Kit P/N G102404

1шт.

7

D36969

CUP

SEAL - rod

1шт.

Part of Seal Kit P/N G102404

1шт.

Service option P/N G100776 - severe heat or cold

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G102404

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G102404

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

11

G33467

ROD

- 1-1/2" (38 MM) diameter, Includes: Ref. 12

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod

2шт.

13

G100442

PISTON

- cylinder

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - rubber

1шт.

Part of Seal Kit P/N G102404

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit P/N G102404

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of Seal Kit P/N G102404

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G102404

SEAL

KIT - seal, Includes: Ref. 5 - 9 and 14 - 16

1шт.

G100776

SEAL

- rod, service option - severe heat or cold

1шт.
