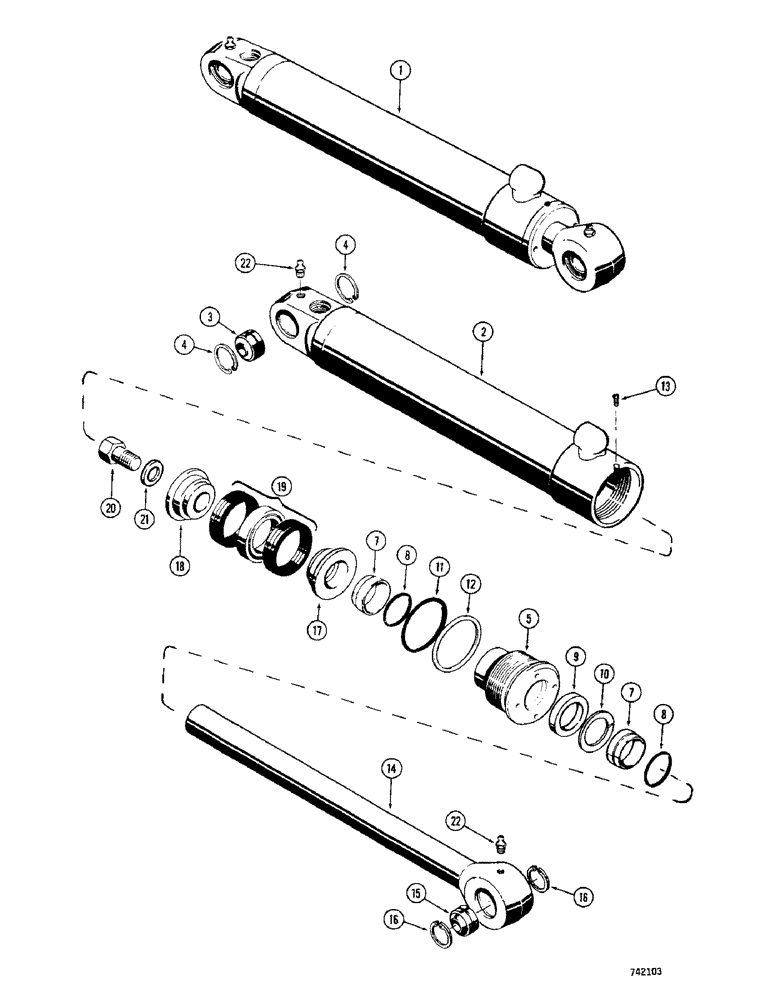

Запчасти Case 350 (316) - D46615 TILT CYLINDER - ANGLE TILT DOZER, HAS SPLIT INNER&OUTER ROD WIPERS USED BEF.TRAC.S/N 3047966 (07) - HYDRAULIC SYSTEM

1

D46615

CYLINDER - 2-1/2" (64 MM) diameter x 7-9/16" (192 MM) stroke, service with G32150 cylinder, Includes: Ref. 2 - 22

1шт.

2

D46621

TUBE - cylinder, Includes: Ref. 3 and 4

1шт.

3

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - self-aligning

1шт.

4

D28436

SNAP RING,2", Int, #200

Ring, Snap, , bushing 2", Int, #200

2шт.

5

D45065

GLAND

- G32732 gland, figure 314

1шт.

D42867

GLAND

PACKING KIT - gland, Includes: Ref. 7 - 13

1шт.

7

D27705

WIPER

- piston rod

2шт.

8

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- not used in this cylinder

2шт.

9

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod

1шт.

10

D28497

RING

- backup

1шт.

11

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

12

D27856

RING

- backup

1шт.

13

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

14

D46616

ROD ASSY.

ROD - piston, 1-1/4" (32 MM) diameter, Includes: Ref. 15 and 16

1шт.

15

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - self-aligning

1шт.

16

D28436

SNAP RING,2", Int, #200

Ring, Snap, , bushing 2", Int, #200

2шт.

17

D28362

SCREW

- split, rod end

1шт.

18

D28364

PISTON

- split, bolt end

1шт.

19

G33193

PACKING

- piston

1шт.

20

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2"

1шт.

21

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.
