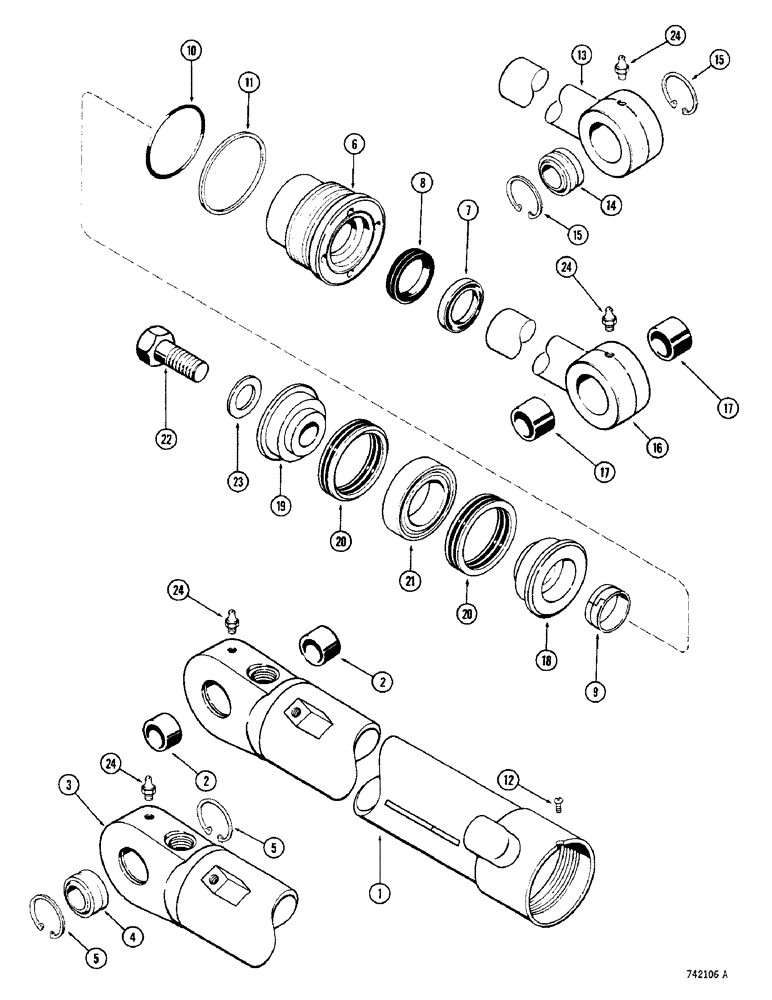

Запчасти Case 350 (312) - G34421 & G33398 TILT CYLS.- ANGLE TILT DOZER, TUBE HAS WELDED BAR AND BLOCK FOR MOUNTING (07) - HYDRAULIC SYSTEM

G34421

CYLINDER

- 2-1/2" (64 MM) ID x 7-9/16" (192 MM) stroke, Includes: Ref. 1 and 2, Start Serial: 3047966

1шт.

1

G34422

TUBE

- G34421 cylinder, Includes: Ref. 2

1шт.

2

D34337

BUSHING

- tube

2шт.

G33398

CYLINDER - 2-1/2" (64 MM) ID x 7-9/16" (192 MM) stroke, service with G34421 cylinder, Includes: Ref. 3 - 24, Serial Range: -3047966

1шт.

3

G33401

TUBE,2.497" ID x 15.50" L

- cylinder, Includes: Ref. 3 and 4

1шт.

4

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - self-aligning

1шт.

5

D28436

SNAP RING,2", Int, #200

Ring, Snap, , bushing 2", Int, #200

2шт.

6

G33578

GLAND

ASSEMBLY - cylinder, Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

7

D95141

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G32295

1шт.

8

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod

1шт.

Part of Seal Kit P/N G32295

1шт.

Service option P/N G100775 - severe heat or cold

1шт.

9

D27705

WIPER

- piston rod, inner

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G32295

1шт.

11

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G32295

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

8 - 32 NC x 1/4"

1шт.

13

G33403

ROD

- piston, G33398 cylinder, 1-1/4" (32 MM) diameter, Includes: Ref. 14 and 15

1шт.

14

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - self-aligning

1шт.

15

D28436

SNAP RING,2", Int, #200

Ring, Snap, , bushing 2", Int, #200

2шт.

16

G34425

ROD

- piston, G34421 cylinder, 1-1/4" (32 MM) diameter, Includes: Ref. 17

1шт.

17

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod

2шт.

18

G33347

PISTON ASSY.

PISTON - split, rod end

1шт.

19

D28364

PISTON

- split, bolt end

1шт.

20

G33193

PACKING

ASSEMBLY - piston, Includes: Ref. 20 and 21

1шт.

Part of Seal Kit P/N G32295

1шт.

20

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

21

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

22

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

23

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight

2шт.

G32295

GASKET KIT

KIT - seal, Includes: Ref. 7 - 8, 10 - 11 and P/N G33193

1шт.

G100775

SEAL

- piston rod, service option - severe heat or cold

1шт.
